Rugged Firewall SMB & Enterprise 5300

Rugged Firewall SMB & Enterprise 5300

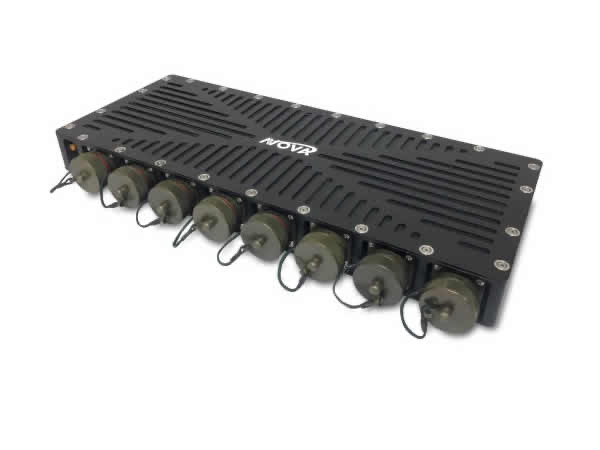

The Rugged Firewall SMB & Enterprise 5300 is a portfolio for standard COTS Rugged Network Firewalls  – suitable for harsh environments.  The 5300 Firewalls come in a sealed military grade enclosure, undergo ruggedisation and include teflon wires, shielded cables, military circular connectors and MIL-STD-461 compliant EMI filter power system.  Perfect for rugged defence environments.

Categories: , , , , Tag:

The Rugged Firewall SMB & Enterprise 5300 is a portfolio for standard COTS Rugged Network Firewalls that are suitable for harsh environments.  This device uses Small-to-Medium Business (SMB) and Enterprise class firewalls.  In addition to this, it also comes in a sealed military grade enclosure.  Furthermore, Before integration into the final product, the COTS routers undergo ruggedisation.  As a result, they are more resilient and perfect for rugged environments.

Firewalls also undergo cooling and sealing to protect them from the elements.  Final products come in table top, rack-mount or shock tray configurations.  Furthermore, internal components are all military grade.  This includes, teflon wires, shielded cables, military circular connectors and MIL-STD-461 compliant EMI filter power system.

Finally, all devices are rugged and MIL-spec.  They are perfect for defence, aerospace and industrial applications.  Heaters are also available for applications operating in freezing temperatures.

Key Features of the Rugged Firewall SMB & Enterprise 5300

  • Standard and VPN Routers
  • Small-Medium Business (SMB) and Enterprise class routers
  • Popular brands such as Cisco and Ubiquiti supported
  • Power and I/O connectors are changable per customer requirement
  • 1U and 2U rugged enclosures with extensive use of captive hardware
  • Tabletop, rack mount or shock tray mounted
  • Heater available for operation in freezing temperatures

 For more information about this product please contact us.

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Rugged Firewall

Model #DescriptionCOTS DeviceData Sheet
5320SMB, RUGGED FIREWALLCHECKPOINT 1180Coming Soon
5330SMB, RUGGED FIREWALL, CISCOCISCO ASA5505Coming Soon
5340ENTERPRISE CLASS, RUGGED FIREWALLCHECKPOINT 4200Coming Soon
5350ENTERPRISE CLASS, RUGGED FIREWALL, CISCOCISCO ASA5515Coming Soon

Power System:

VDC Input18-32VDC Standard
12V, 24V, 28V, 48V, 72V and 270V nominal input
VAC Input110- 220VAC autoranging Standard
47-440Hz aircraft power support (optional)
3-phase power input support (optional)
CustomCustom configurations can be produced in collaboration with parent company Technology Dynamics, Inc.
EMI FilteringMIL-STD-461 compliant EMI filters produced by sister company Nova Electric are included with all embedded computer products. Custom and semi-custom configurations available.
Voltage HoldupMIL-STD-704 voltage hold up available as an option

Common Specifications (abbreviated):

The specifications listed are the minimum met by all Rugged switch, router and firewall products. Please visit individual product pages to see which models exceed these specifications.

Temperature
  • MIL-STD-810F
  • Temperature ranges vary by model and if heater option is selected
Humidity
  • MIL-STD-810F / RTCA/DO-160F
Altitude
  • MIL-STD-810F, up to 40,000ft (operating)
  • MIL-STD-810F, up to 60,000ft. (non-operating)
Vibration
  • MIL-STD-810F, Method 514.6, Procedure I
Shock
  • MIL-STD-810F, Method 516.6, Procedures I
Bench Handling
  • MIL-STD-810F, MIL-STD-810F, Method 516.6, Procedures V & VI
Transportation
  • MIL-STD-810F
Inclination
  • 0° to 30° in any axis
EMI/EMC
  • MIL-STD-461E
ESD
  • MIL-STD-1686A
Sand/Dust
  • MIL-STD-810F
  • RTCA/DO-160E, Paragraph 12.3, Category D
Rain
  • MIL-STD-810F
Grounding
  • MIL-STD-464
Fluid Contamination
  • Jet fuel DERD 2494, hydrolic fluid MIL-H-5606E, lube oil mixtures to DERD 2497/ MIL-L-7808 & soap water
Sealing
  • IP 66 minimum

Construction:

  • Machined aluminium (aerospace grade 6061-T6) housing with formed sheet metal (aluminium 5052-H32) internal structures and brackets
  • Chemical film per MIL-C-5541, Class 3, Gold Colour (standard)
  • Customer defined painting and silk screen or engraving
  • Sealed, fan-less conduction cooled designs

Applications:

  • UAV
  • Fighter Jet
  • Commercial aircraft
  • Prop and Turbo prop aircraft
  • Helicopter
  • Naval and submarine
  • Explosion Proof
  • Law Enforcement / First Responders
  • Anti-vandal
  • Outdoor Utilities
  • Construction, mining, oil/gas exploration
  • Railway
