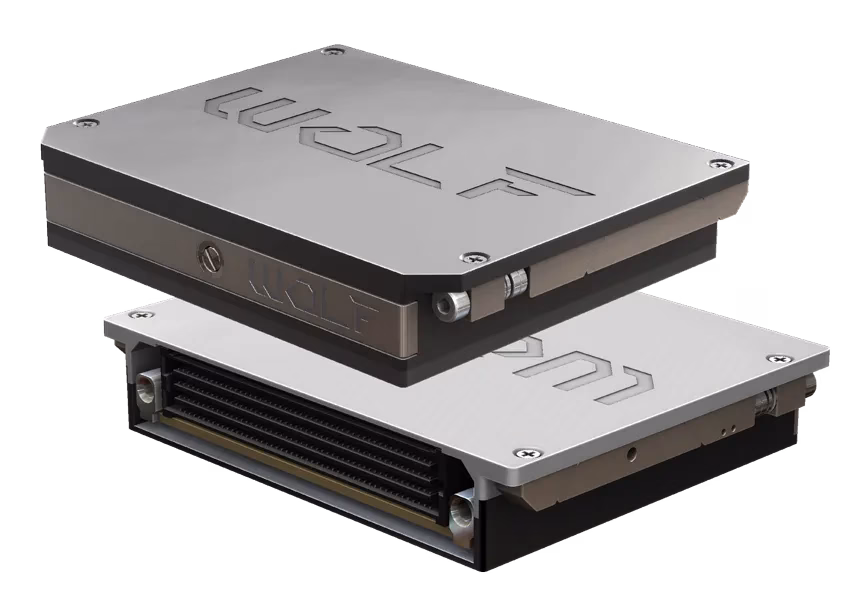

The WOLF VNXP-ORIN-NX (WOLF-N4XP) is a compact, rugged VNX+ Single Board Computer & Processing Node designed for high-performance edge AI in space-constrained environments.
Key Benefits at a Glance
Credit-card footprint, conduction-cooled VNX+ SBC for tight spaces
100 TOPS INT8 inference from Ampere GPU & Tensor cores
-40 °C – +85 °C, 40 g shock, 12 grms vibe — proven rugged design
1 TB Self-Encrypting NVMe — instant, hardware-level data protection
PCIe Gen4, MIPI CSI-2, USB 3.2, 1 GbE— ready for high-speed sensors
Backed by Metromatics’ local expertise in Australia and New Zealand
Why Choose VNXP-ORIN-NX?
| Challenge | Solution |
|---|---|
| Tight SWaP budgets | 100 TOPS and 4 K video in a credit-card module |
| Harsh conditions | Fully MIL-STD-810 qualified |
| Data security | 1 TB NVMe SED + Jetson secure boot |
| Schedule pressure | Production-ready COTS |
Target Applications
ISR gimbals & pods for real-time object detection
UAV / UGV autonomy and SLAM
Rugged multi-camera vision systems
Portable C5ISR edge nodes with on-board encryption
Vetronics crew-station AI in confined hull spaces
Technical Highlights
| Spec | Detail |
|---|---|
| GPU / AI | NVIDIA Ampere, 1 024 CUDA @ 918 MHz, 32 Tensor, 2× DLA v2 |
| CPU | 8-core Arm A78AE @ 2 GHz |
| Memory | 16 GB LPDDR5, 102 GB/s |
| Storage | 1 TB NVMe Self-Encrypting Drive |
| I/O | PCIe Gen4 x4/x1, MIPI CSI-2 (8-lane), USB 3.2, 1 GbE |
| Video | DP 1.4 or HDMI 2.1, 2× NVENC / 2× NVDEC |
| Power | 20 – 35 W (software-selectable) |
| Form factor | VNX+ (VITA 90), 89 × 78 × 19 mm |
| Environmental | –40 °C to +85 °C, 40 g shock, 12 grms vibration |
| Compliance | AS9100D, IPC-Class 3, AS5553, NIST 800-171 |
Ordering Codes
| Part Number | Display | Storage | Power |
|---|---|---|---|
| N4XP33-F••-••VNXPvA0 | DP 1.4 | 1 TB SED | 20 – 35 W |
| N4XP33-F••-••VNXPvA0 | HDMI 2.1 | 1 TB SED | 20 – 35 W |
Options: pSLC NVMe, conformal coating, variant locking.
Frequently Asked
How is it better than a Jetson dev kit? Same AI power in a 10× smaller, MIL-grade enclosure.
Can power be capped? Yes—select 20 W, 25 W, 30 W or 35 W through firmware or Jetson BSP.
Need a carrier or chassis? Reference carriers and rugged housings are available; custom variants on request.
Request Pricing & Support
Metromatics — WOLF’s exclusive distributor for Australia & New Zealand
📧 sales@metromatics.com.au ☎ +61 7 3868 4255 🏢 Brisbane | Sydney | Melbourne
Deploy the VNXP-ORIN-NX VNX+ Single Board Computer & Processing Node and bring 100 TOPS of secure edge AI to your next mission.
