X-ES have a large range of high performance 3U VPX Single Board Computers available.  Models have different feature sets including powerful performance processors etc.  Making them ideal for network information processing, embedded computing to high end security applications.

For the full range of 3U VPX Single Board Computers; click on the details tab below.

Request a quote

3U VPX Single Board Computers available from X-ES include:

For further information on pricing and lead times of the X-ES 3U VPX Single Board Computers, please contact us.

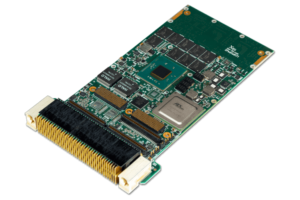

NameXPedite8171
XPedite7670

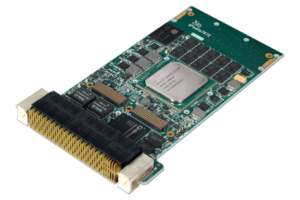

Xpedite7672
Form Factor3U VPX3U VPX3U VPX
ProcessorIntel ATOM E3845 Alt: E3805, E3815, E3825, E3826, E3827Intel Xeon DIntel Xeon D
Memory8GB DDR3L-133316GB DDR4-213316GB DDR4-2133
Ethernet2 10/100/1000 BASE T; 2 1000 Base-BX-KX2 10/100/1000 BASE T; 2 10 GBASE-KR2 10/100/1000 BASE T; 2 10 GBASE-KR
USB2 USB 2.02 USB 3.02 USB 2.0
Serial2 RS-232/422/4856 RS-232/422/4854 RS-232/422/485
SATA2 SATA 3 Gb/s6 SATA 6 Gb/s4 SATA 6 Gb/s
FPGA--Microsemi Fusion 2
For more informationMore InformationMore Information

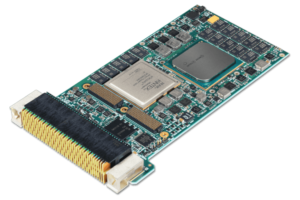

NameXPedite7674
Xpedite 7674 3U VPX Single Board Computer

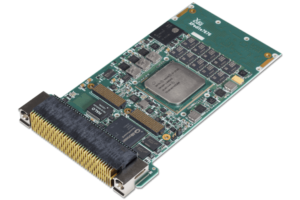

XPedite7676
Xpedite7676 3U VPX Single Board Computer

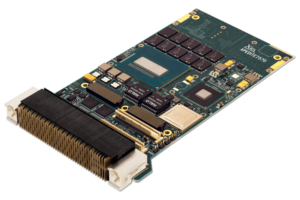

Xpedite7570
Xpedite7570 3U VPX Single Board Computer
Form Factor3U VPX3U VPX3U VPX
ProcessorIntel Xeon DIntel Xeon DIntel Core i7
Memory16GB DDR4-213316GB DDR4-21338GB DDR3-1600
Ethernet1 1000 Base-K; 2 GBase-KR1 10/100/1000 BASE T; 2 10 GBASE-KR2 10/100/1000 BASE T; 2 1000 BASE-BX/RX
USB2 USB 2.02 USB 2.02 USB 2.0
Serial4 RS-232/422/4852 RS-232/422/4852 RS-232/422/485
SATA1 SATA 6 Gb/s2 SATA 6 Gb/s5 SATA 6 Gb/s
FPGAXilinx Kintex Ultra ScaleMicrosemi Fusion 2-
For more informationMore InformationMore Information
NameXPedite7572

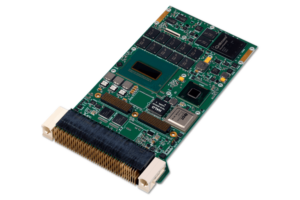

XPedite7572 3U VPX Single Board Computer
XPedite7574

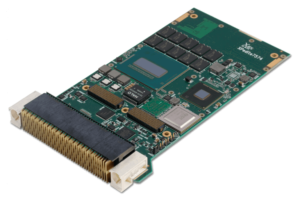

XPedite7574 3U VPX Single Board Computer

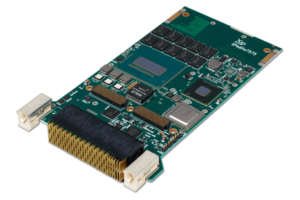

Xpedite7575
XPedite7575 3U VPX Single Board Computer
Form Factor3U VPX3U VPX3U VPX
ProcessorIntel Core i7Intel Core i7 Intel Core i7
Memory8GB DDR3L-16008GB DDR3L-16008GB DDR3L-1600
Ethernet2 10/100/1000 BASE T; 2 1000 Base B2/K22 10/100/1000 BASE T; 2 1000 Base B2/K22 10/100/1000 BASE T; 2 1000 Base B2/K2
USB2 USB 2.02 USB 2.02 USB 2.0
Serial2 RS-232/422/4852 RS-232/422/4851 RS-232/422/485
SATA5 SATA 6 Gb/s3 SATA 6 Gb/s2 SATA 6 Gb/s
FPGAMicrosemi Fusion 2--
For more informationMore InformationMore Information
NameXPedite7470
XPedite7470 3U VPX Single Board Computer
XPedite7472
XPedite7472 3U VPX Single Board Computer
Xpedite7477
XPedite7477 3U VPX Single Board Computer
Form Factor3U VPX3U VPX3U VPX
ProcessorIntel Core i7Intel Core i7 Intel Core i7
Memory8GB DDR3L-16008GB DDR3-16008GB DDR3-1600
Ethernet2 10/100/1000 BASE T; 2 10/100/1000 BASE T; 1 1000 Base X2 10/100/1000 BASE T; 1 1000 Base X
USB2 USB 2.02 USB 2.02 USB 2.0
Serial2 RS-232/422/4852 RS-232/422/4856 RS-232/422/485
SATA2 SATA 3 Gb/s/ 6 Gb/s2 SATA 3 Gb/s/ 6 Gb/s2 SATA 3 Gb/s
FPGA---
For more informationMore InformationMore Information
NameXPedite7479
XPedite7479 3U VPX Single Board Computer
XPedite6370
XPedite6370 3U VPX Single Board Computer
Xpedite5970

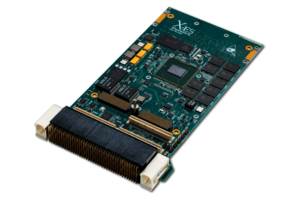

XPedite5970 3U VPX Single Board Computer
Form Factor3U VPX3U VPX3U VPX
ProcessorIntel Core i7NXP QorlQ LS 2088ANXP QorlQ T2080
Memory8GB DDR3L-160016GB DDR4-21008GB DDR3-1600
Ethernet2 10/100/1000 BASE T; 4 1000 BASE X2 10/100/1000 BASE T; 2 10 GBASE KR2 1000 BASE-BX
USB2 USB 2.02 USB 2.02 USB 2.0
Serial2 RS-232/422/4854 RS-232/422/4852 RS-232/422/485
SATA2 SATA 3 Gb/s/ 6 Gb/s2 SATA 6 Gb/s2 SATA 6 Gb/s
FPGA---
For more informationMore InformationMore Information
NameXPedite5570

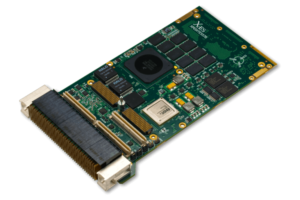

XPedite5570 3U VPX Single Board Computer

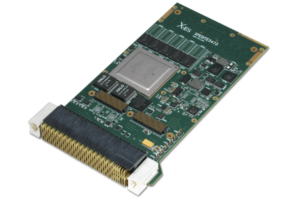

XPedite5473
XPedite5473 3U VPX Single Board Computer
Xpedite5470

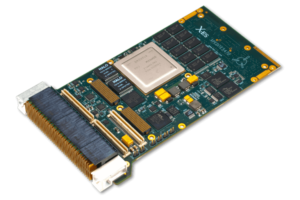

XPedite5470 3U VPX Single Board Computer
Form Factor3U VPX3U VPX3U VPX
ProcessorNXP QorlQ P2020: P1011; P1020: P2010NXP QorlQ P4080
P3041, P4040, P5010, P5020
NXP QorlQ P4080
P3041, P4040, P5010, P5020
Memory8GB DDR3-8008GB DDR3-13338GB DDR3-1333
Ethernet2 1000 BASE X2 10/100/1000 BASE T; 2 10/100/1000 BASE T;
USB1 USB 2.02 USB 2.02 USB 2.0
Serial2 RS-232/422/4852 RS-232/422/4852 RS-232/422/485
SATA-2 SATA 3 Gb/s2 SATA 3 Gb/s
FPGA---
For more informationMore InformationMore Information
