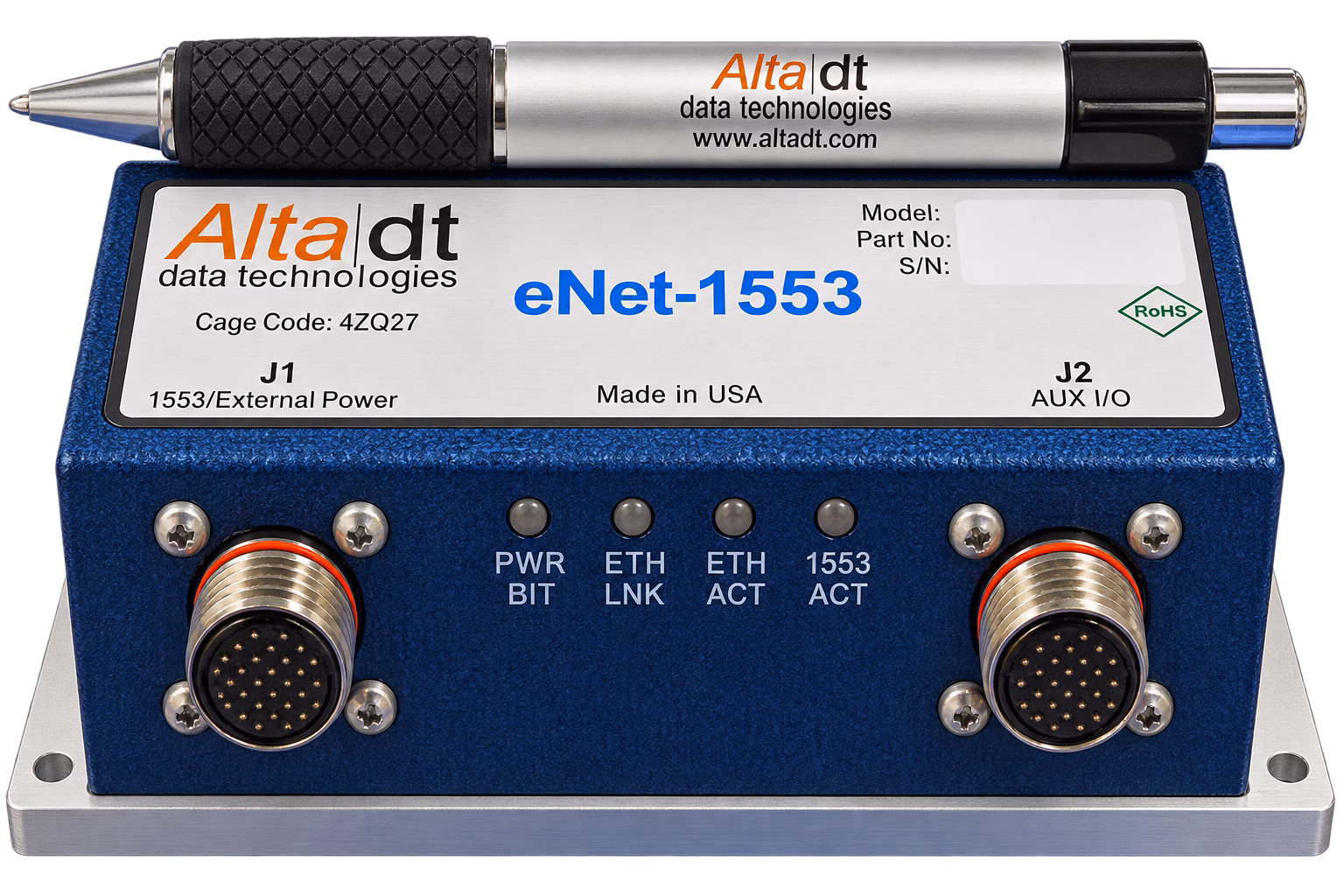

Ethernet Converter ENET 1553 EBR

The Ethernet Converter ENET 1553 EBR provides real-time ethernet connectivity for up to eight RS-485 10 Mbit EBR 1553 RTs.  This unit is perfect for rugged environment thanks to its strong build.  It is also ideal for defence applications.

The Ethernet Converter ENET 1553 EBR is an ethernet converter that provides real-time ethernet connectivity for up to eight RS-485 10 Mbit EBR 1553 RTs. This Ethernet converter uses one of the industry’s most advanced 32-bit 1553 FPGA protocol engines, Altacore. It also comes with a real-time IP/UDP thin server in a small low-power, rugged box (ENET). Users can also implement applications using AltaAPI.  This is a feature rich interface often used with standard 1553 cards.

The eNet-1553-EBR ethernet converter also provides “remoting” of 1553 AS5652 EBR operations on 10/100/1000 Ethernet IP/UDP local area networks (LAN). It is perfect for rugged environments thanks to its small, low-power and rugged build. It can also provide connectivity for AS5653 RT devices, single BC or a composite monitors. Other Key features include IRIG-B RX Decode, PPS, trigger and Discretes. It also comes with POE optional, BC, 8x RT and composite monitor. Finally the ENET-153-EBR ethernet converter measures 13.5.3.7cm and weighs 200 grams.

Key Features of the ENET 1553 EBR

  • 10/100/1000 ethernet converter to EBR 1553 AS5652 link and spec modes.  BC, 8-RT, BM single function.
  • Small, rugged 13.5X3.7X4CM, 200 grams
  • Thin-server, real-time IP/UDP ethernet to/from 1553 EBR **
  • Remote 1553 EBR devices on the LAN
  • BC, 8XRT, BM and composite monitor
  • 5-30V DC, 400-700 MAMP (5V) typical 1 AMP USB power ok
For more information please contact us here.
