Rugged UPS

Metromatics offers a full range of Rugged Uninterruptable Power Supplies to suit any industrial or defence application including those that require compliance to military environmental and electrical standards such as MIL-STD-810, MIL-STD-1275, MIL-STD-167, MIL-STD-1399, MIL-STD-461-F and more.

Available in many different configurations such as

  • Rack Mount Rugged UPS 1U -4U Varieties
  • Portable Blade Rugged UPS supporting Parallel Operations
Category:

Acumentrics’ rugged UPS Systems are available in rack mount and custom enclosure configurations to suit applications with tight space constraints.  Finally, all Rugged UPS Systems feature their truly modular design and robust construction which provides years of reliable performance resulting in a low MTTR, MTBF and Cost to ownership.

Features of the Rugged UPS Systems in traditional systems include



Unique Flo-Thru™ Technology

Firstly, this an unique heat sink tunnel design.  As the sealed gasket enclosure provides maximum protection for components in the operating environment.

Power Factor Corrected

Also the Rugged-UPS™ provides seamless active power factor correction and clean, reliable AC or DC Power

AC and DC Power Output

Secondly, the Power Management feature enables various combinations of AC and DC power.  Up to the maximum power rating of the unit.  Indicated on the LED Bar Graph – also protecting it from overloading.

Double Conversion

It creates DC Voltage.  This is then converted to AC or DC Output Voltage.  Therefore, protecting the unit from input surges, spikes, brownouts, blackouts and noise.

RUPS Transfer

In addition, units seamlessly transfer without interrupting the load quality and have zero switch over time.

Automatic Power Selection using Dual Input

In the DC Input Models, the UPS automatically selects AC or DC power.  In the event of an AC power failure, the external DC input takes precedence over the internal battery.

User Replaceable Battery Pack

The Rugged-UPS™ features LFP or low maintenance, valve regulated lead acid (VRLA ) batteries.  Enclosed in a user replaceable battery pack for rapid hot-swap field replacement as required.

LFP Battery Pack

Backward compatible with existing units and offer a safe energy source that is light weight with long lifecycle and run time.

Lightweight Aluminium Chassis

Housed in a lightweight chassis.  All aluminium welded construction minimises overall weight of the unit whilst maintaining high durability.

Extra Features of the Rugged Blade UPS™



Rugged Blade UPS™ Parallel, Fault Tolerant and N+1 Operations

The Rugged Blade supports parallel operations.  Up to 2 units can be connected in parallel.  Also supports resilient, fault tolerant power systems using an N+1 configuration for mission applications.

For example: The application requires 1.25kW.  The 2 units share the 1.25kW critical load.  If one unit fails, the load is automatically distributed to the 1 working unit.  For this to occur, several advanced features of hardware and software are integral part of each Rugged Blade UPS™.

Power is more portable

Finally, the Rugged Blade UPS™ offers power portability for Defence applications in a narrow 1U Chassis offering extra savings in rack space.

Lithium-Ion User Replaceable Battery Pack

The Rugged Blade UPS™ feature Lithium-Ion or Low Maintenance, Valve regulated lead acid user replaceable battery pack.  Also the Lithium-Ion provides a light weight energy source with longer shelf life and lifecycle.



View our product range below or contact us.



Our portfolio of our Rugged UPS consists of:

 Rugged UPS ACB2503
3U AC Output, AC/DC Input RUPS

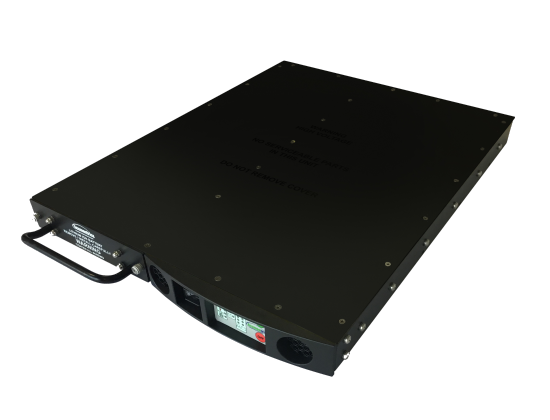

Rugged Blade UPS ANB1501
1U AC Output, AC Input RUPS
Rugged Blade UPS Ang1251
1U AC/DC Output, AC/DC Input RUPS
Rugged UPS Model 2503Rugged UPS Model 1501Rugged UPS Model 1251
Power (Watts)200012501000
Height x Width x Length CM13.33 x 43.18 x 55.88 cm4.45 x 43.18 x 53.34 cm4.45 x 43.18 x 53.34 cm
Height Unit3U1U1U
LFP Battery
Backup Time6 Mins7 Mins10 Mins
Total RUPS Weight31.75 Kg12.70 Kg12.70 Kg
DatasheetSpec Sheet Model 2503Spec Sheet Model 1501Spec Sheet Model 1251
 Rugged UPS ACG2500
4U AC/DC Output, AC/DC Input RUPS

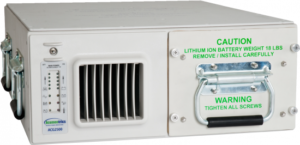

Rugged UPS ACG3000
4U AC/DC Output, AC/DC Input RUPS

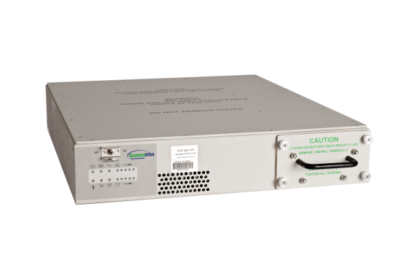

Rugged UPS ACG1252
2U AC/DC Output, AC/DC Input RUPS
Rugged UPS Model ACG2500Rugged UPS Model ACG3000Rugged UPS Model ACG1252
Power (Watts)200024001000
Height x Width x Length CM17.78 x 43.18 x 53.34 cm17.78 x 43.18 x 53.34 cm8.89 x 43.18 x 60.96 cm
Height Unit4U4U2U
LFP Battery
Backup Time9 Mins7 Mins12 Mins
Total RUPS Weight46.72 Kg46.72 Kg22.68 Kg
DatasheetSpec Sheet Model 2500Spec Sheet Model 3000Spec Sheet Model 1252

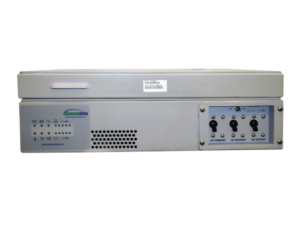

 Rugged UPS ACG1253
3U AC/DC Output, AC/DC Input RUPS

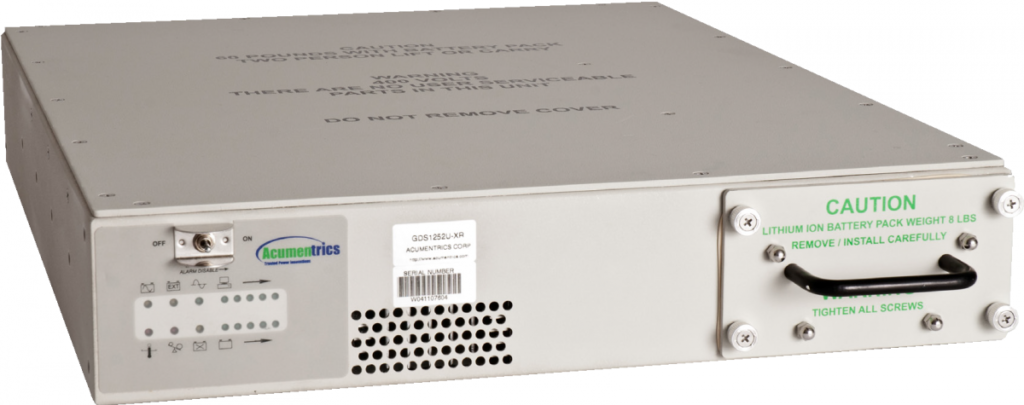

Rugged UPS ACG1625
2U AC/DC Output, AC/DC Input RUPS
Rugged UPS Model 1253Rugged UPS Model 1625
Power (Watts)10001300
Height x Width x Length CM13.33 x 43.18 x 53.34 cm17.78 x 43.18 x 53.34 cm
Height Unit3U2U
LFP Battery
Backup Time30 Mins9 Mins
Total RUPS Weight35.83 Kg22.68 Kg
DatasheetSpec Sheet Model 1253Spec Sheet Model 1625
