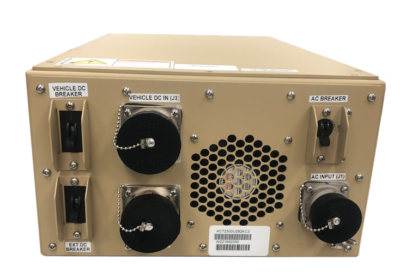

Smart Power Conditioner

Acumentrics Rugged Smart Power Conditioner provides 2000W of  configurable AC or DC output in rugged conditions.  Plus it allows users to harness power from field generators and vehicles at any international power standard. It is the perfect fit for Defence Applications as it is 4U high and designed to slot into standard Military 19” Racks.

Metromatics provides sales, service and support for this product to Australian and New Zealand Customers.

Category:

This Smart Power Conditioner is Acumentrics model ACT2500U282KC2.  It provides 2000W  of configurable AC or DC output from 80 VAC to 265 VAC / 47 Hz to 440 Hz  or 22 VDC to 32 VDC.  The unit enables users to harness power from field generators, vehicles and at any international power standard.  It contains advanced double on-line conversion which provides reliable power conditioning for the most sensitive electronic devices.

Critical features

Power (Watts)2000
Dimensions17.78 cm H x 30.48 cm W x 53.34 cm L
Height Unit(s)4U
Weight22.68 Kg
Certified Military Standards for this productEMI/RFI – MIL-STD-461F
Blown Precipitation – MIL-STD-810G
Shock – MIL-STD-810F
Vibration – MIL-STD-167-1
Shipboard – MIL-STD-1399
Vehicle Power – MIL-STD-1275

Other features of the Power Conditioner are:



Single Push Button Set Up
Firstly, a single button is ensure appropriate systems are powered or the specific mode of operation (battle, silent, watch etc.)

Power Shedding
Secondly, the power conditioning unit can shed the power of everything except for essential items should primary power be lost.

Parallel Channels
Likewise, in the support of high current loads – the system allows the paralleling of channels 8A, 10A and 25A.

Automatic Shutdown in Vehicle Rollovers
For instance systems shut down and send a signal in the event of a vehicle rollover.  Also the Power Conditioner recognises the orientation of the vehicle.

Power Factor Corrected
Finally, the unit accepts a wide range of frequencies and voltages whilst providing clean AC or DC Power

On-line Double Conversion
True on-line, double conversion Smart Power Conditioners continually create a pure AC sine wave or DC output from an isolated DC output. This protects sensitive equipment from input surges, spikes, brownouts, blackouts, and noise.

For more information on the Smart Power Conditioner, contact us.

About Acumentrics

In conclusion, with modern Defence forces relying upon Computers and other sophisticated electronic equipment.  It is critical to keep that equipment online in harsh environments.  Acumentrics delivers AC and DC uninterruptible power sources for combat and heavy duty industrial applications.  Their portable power products are perfect for first responders, telemedicine systems and anyone needing an autonomous compact power solution.

Also Acumentrics delivers UPS Systems which deliver a clean AC or DC Power Supply in harsh environments.  Such as dust, rail, wind, heat, cold, vibration, shock and blowing sand.  Systems are mounted in 19″ Cabinets / transit cases for immediate use.
