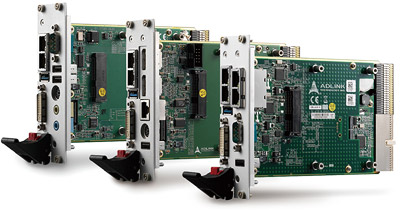

Single Board Computer & Blades

ADLINK manufactures single board computers and processor blades. Firstly, the SBC are based on a range of form factors, processors, memory configurations, I/O and operating systems. Secondly, the extreme rugged single board computer and rugged sub systems versions comply with MIL STD specifications. In addition, they are available in convection or conduction cooling models.

These embedded computing hardware items are defined by their target platform and use the latest Intel® Processors. Whether this is a Defence or Aerospace Platform, Communications, Intelligence, Surveillance and reconnaissance application they are versatile and adaptable.

Types of Form Factors Available

Advanced TCA CompactPCI PC104 VPX COM Express

AdvancedTCA

Product	Processor	Model No
AdvancedTCA Carrier Blade	4 x Intel® Xeon® Processors E3	Model aTCA-9400
Advanced TCA Processor Blade	2 x Intel® Xeon® Processors E5	Model aTCA-9710
Processor Blade	Intel® Xeon® E3 Quad Core Processors	Model aTCA-9300
Bandwidth Management Fabric Switch	10G Ethernet AdvancedTCA Interface Switch	Model aTCA-3430
Bandwith Management Fabric Switch	40G Ethernet AdvancedTCA Interface Switch	Model aTCA-3710

CompactPCI

Product	Processor	Model No
3U cPCI Blade with ECC Memory	4^th/5^th Intel® Core™ i7 Processor	Model cPCI-3510(BL)
cPCI 3U Blade with ECC & I/O	4^th/5^th Intel® Core™ i7 Processor	Model cPCI-3511(BL)
3U cPCI 2.0 Processor Blade	64-Bit Intel® Atom® Processor	Model cPCI-3630
3U cPCI Quad Core Blade	Low Power Quad-Core Intel Atom® SoC	Model cPCI-3620
Rugged 3U cPCI Processor Blade	Low Power Quad-Core Intel Atom® SoC	Model CT-3620
Rugged Conduction Cooled 3U cPCI Blade	4^th Generation Intel® Core™ i7	Model CT-3510

PICMG 3U cPCI-S.0 Blades

Product	Processor	Series
3U cPCI Serial Processor Blade	Quad Core 4^th/5^th Intel® Core™ i7 Processor	cPCI-A3515

6U cPCI Processor Blades

Product	Processor	Series
6U cPCI Processor Blade	6^th/7^th Intel® Xeon® E3 and Intel® Core™ i3/i7	cPCI-6636
4/8 HP cPCI 6U Processor Blade	6^th/7^th Intel® Core™ i3/i7 Celeron® Processors	cPCI-6630
Single Slot width 6U cPCI Processor Blade	4^th/5^th Intel® Core™ i7/i5 with two PMC/XMC	cPCI-6530(BL)
6U cPCI Processor Blade with AMD Radeon GPU	Intel® Xeon® with AMD Radeon™ E8860 GPU	cPCI-6940
Rugged Conduction Cooled 6U cPCI Blade	4^th Gen Intel® Core™ i7 Processor	CT-6530

PC-104

Product	Processor	Series
PCI/104 Express Single Board Computer	6^th Gen. Intel® Core™ Processor	CMx-SLx
Rugged PC-104 Plus Single Board Computer	Quad Core Intel® Atom™ Processor on Chip	CM3-BT4
Extremely Rugged PCI/104 SBC	Intel® Atom™ Processor Series 3800 SOC	CM3-BT1
Rugged PC-104 Plus SBC	Intel® Atom™ Processor System on Chip	CM2-BT2
PC 104 Single Board Computer	Single/Dual Core Intel® Atom™ SOC	CM1-BT1
PC 104 SBC	DMP Vortex86-DX3 Single Chip Solution	CM1-86DX3

PCIe/104 Type 1 Embedded Graphics Module

NVIDIA® Quadro® P1000

CM5-P1000 – Preliminary

VPX

Product	Processor	Series
Rugged 3U VPX Processor Blade	Intel® Xeon® and 9^th Gen i3	VPX3020
3U VPX Rugged Processor Blade	Intel® Xeon® Processor D-1500	VPX3010
VPX 3U Processor Blades	Intel® Core™ i7 Processor Blade for Radar	VPX3001
Rugged 3U VPX Processor Blade	Intel® Core™ i7 Processor Blade for Defence	VPX3000

6U VPX Processor Blades

Product	Processor	Series
6U VPX Processor Blade with NVIDIA® GPU	Intel® Xeon® Processor D-1559, 12 Cores	VPX6H10
Rugged 6U VPX Processor Blade	Dual Intel® Xeon® Processors	VPX6100 – Preliminary
6U Rugged VPX Processor Blade	Intel® Xeon® Processor D-1500	VPX6011 -Preliminary
Rugged 6U VPX Processor Blades	7^th Gen Intel® Core™ i7 Processor Blade	VPX6020 – Preliminary
6U VPX Processor Blade	Dual Quad Core 4^th Gen Intel® Core™ i7	VPX6000

Access to VPX GPGPU Cards or Modules, click here.

COM Express

COM Express Type 6 Standard Size

Product	Processor	Model
Standard size COM Express Type 6 Module	Intel® Xeon® Core™, Pentium® and Celeron® Processors	Express-CFR
COM Express Type 6 Standard Size Module	8^th Gen Intel Core™ and Xeon® Processors	Express-CF/CFE
COM Express Type 6 Standard Size Module	7^th Gen Intel® Core™ and Xeon® Processors	Express-KL/KLE
Type 6 COM Express Module Standard Size	6^th Gen Intel® Core™, Xeon® and Celeron® Processors	Express-SL/SLE
COM Express Standard Size Type 6 Module	5^th Gen Intel® Core™ and Xeon® Processors	Express-BL
COM Express Type 6 Module Standard Size	AMD® Embedded R Series APU	Express-BE
COM Express Type 6 Module Standard Size	4^th Gen Intel® Core™ or Celeron® Processors	Express-HL
COM Express Type 6 Standard Size Module	4^th Gen Intel® Core ™ i7/i5/i3 Processor	Express-HLE

COM Express Type 6 Compact Size

Product	Processor	Model
Compact size COM Express Type 6 Module	Up to Quadcore Intel® Core™ and Celeron® Processors	cExpress-WL
COM Express Type 6 Module Compact Size	Mobile 7^th Gen Intel ® Core™ and Celeron® Processors	cExpress-KL
COM Express Type 6 Module	Intel Atom® E3900 Series, Pentium® and Celeron® SoC	cExpress-AL
COM Express Type 6 Module	6^th Gen Intel® Core™ i7/i5/i3 and Celeron® 3955U Processors	cExpress-SL
Type 6 COM Express Compact Module	Intel Pentium, Celeron N3000 Series and Atom x 5 E8000 SoC	cExpress-BW
COM Express Type 6 Module	4^th Gen Intel® Core™ i7/i5/i3 Processors	cExpress-HL
COM Express Compact Size Type 6 Module	5^th Gen Intel® Core i7/i5/i3 Processors	cExpress-BL
COM Express Type 6 Compact Module	Intel Atom® or Intel Celeron® Processor SoC	cExpress-BT

COM Express Type 7

Product	Processor	Model
COM Express Type 7 Standard Size Module	Intel Atom® C3000 Soc	Express-DN7
COM Express Basic Size Type 7 Module	Intel® Xeon® D SoC and 4 SODIMMs	Express-BD74
COM Express Basic Size Type 7 Module	Up to 16 cores Intel Xeon D and Pentium D Soc	Express-BD7

COM Express Type 10

Product	Processor	Model
COM Express Type 10 Mini Size Module	Intel Atom® C3900 Series, Pentium® and Celeron® SoC	nanoX-AL
COM Express Type 10 Mini Size Module	Intel Atom® E3800 Series SoC or Celeron Processors	nanoX-BT

COM Express Type 2

Product	Processor	Model
COM Express Type 2 Standard Size Module	6^th Gen Intel Core™, Intel Xeon® and Intel Celeron® Processors	Express-SL2
COM Express Type 2 Standard Size Module	4^th Gen Intel® Core™ i7/i5/i3 Processors	Express-HL2
COM Express Type 2 Standard Size Module	Mobile 7^th Gen Intel®, Xeon®, and Core™ Processors	Express-KL2

SMARC Modules

Product	Processor	Model
SMARC® Short Size Module	Intel Atom® E3900 Series, Pentium™ N4200 or Celeron™ N3350 Processor	LEC-AL
SMARC® Short Size Module	NXP i.MX 6 Multicore ARM® Cortex®-A9	LEC-IMX6R2 (Preliminary)
SMARC® Short Size Module	Rockchip PX30 Quad-Core ARM Cortex A35	LEC-PX30 (Preliminary)
SMARC® Short Size Module	NXP i.MX 8M	LEC-IMX8M (Preliminary)

QSeven Modules

Product

Processor

Model

Qseven® Standard Size Module

Intel Atom® E3900, Pentium® N4200 and Celeron® N3350 Processor

Q7-AL

Qseven® Module

4^th Gen Intel Atom® Processor E3800 Series SoC

Q7-BT

ETX Module

Product	Processor	Model
ETX Module	Intel Atom® Processor E3800 Series SoC	ETX-BT
