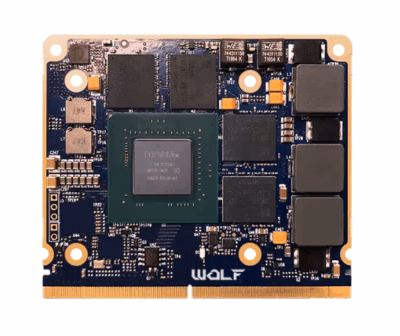

MXM Graphics Cards

WOLF’s MXM Graphics Cards are beyond commercial grade.  They are extremely rugged and have an extended operating range of -40° to +85° C making them ideal for harsh Defence and Aerospace applications.  They incorporate the latest GPU Systems into their designs from reputable companies such as NVIDIA.  This enables the highest quality video output, image and data processing power.

Metromatics proudly offers local customer sales, technical support and service for this product range in Australia and New Zealand.



Category:

WOLF’s MXM Graphics Cards provide system designers with enormous graphics processing power.  Firstly, WOLF’s MXM Video Cards manufactured to IPC-6012 Class 3 and IPC-A-610 Class 3 Standards.  Also they have extended operating temperature range and exceed MIL-STD-810 Shock and Vibration specifications.

Secondly, they use a WOLF’s Chip down design to provide NVIDIA Quadro® Pascall GPU Technology in an extremely rugged module, making it an ideal choice for Defence and Aerospace applications.

Also Quadro GPU Technology provides support for High Dynamic Range (HDR) Video and resolutions of 4K at 120Hz or 5K at 60Hz with 10-bit colour depth.

Video cards with high processing speed and high bandwidth provide the necessary data processing for advanced applications such as parallel processing, video stabilisation, image processing, terrain analysis, object tracking and 3D visualisation of Geospatial data.

For more information on this product range, contact us.

MXM GRAPHICS CARDS MODELS

ProductWOLF NoGPU/ProcessorProcess Speed TFLOPSMemoryDisplay Port OutputsOutputs - SDI, AnalogInputs
WMXM-P2000E-V09176NVIDIA P2000E2.344--
WMXM-P5200E-V09146NVIDIA P5200E8.9164--



About WOLF

WOLF Advanced Technology designs and manufactures rugged VPX, XMC, and MXM/MXC modules for video capture, process, display, and AI inference. Solutions  operate in harsh aerospace and defence environments. Without sacrificing any of the high-speed processing available from advanced NVIDIA, AMD and Xilinx GPUs, APUs and FPGAs. Modules range from extremely low power modules to industry-leading high-performance modules which meet embedded systems size, weight and power (SWaP) requirements. Products include rapidly available COTS solutions, feature-tailored MCOTS solutions, and full custom designs. WOLF products are designed to pass rigorous environmental testing and manufactured to meet the highest reliability standards.
