Rugged, Rack PDU

Acumentrics Rugged, Rack PDU (Power Distribution Unit) provides easy access to conditioned power for up to 8 outputs.  Plus it can be configured with multiple AC inputs from paralleled Rugged UPS systems to increase the output power.  It is the perfect fit for Defence Applications as it is 1U high and designed to slot into standard Military 19” Racks.

Metromatics provides sales, service and support for this product to Australian and New Zealand Customers.

Category:

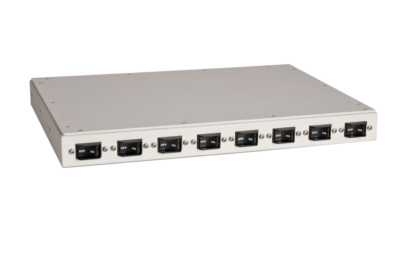

This Rugged, Rack PDU is Acumentrics model APG2500RPDU.  It provides a complete rugged solution by providing easy access to conditioned power for up to 8 outputs.  It eases power distribution, simplifying cabling and meets the needs of harsh Defence applications.

Critical features

Power (Watts)2000
Dimensions4.45 cm H x 30.48 cm W x 43.18 cm L
Height Unit(s)1U
Weight4.54 Kg
Certified Military Standards for this productEMI/RFI – MIL-STD-461F
Blown Precipitation – MIL-STD-810G
Shock – MIL-STD-810F
Vibration – MIL-STD-167-1
Shipboard – MIL-STD-1399
Vehicle Power – MIL-STD-1275

Other features of the Rack PDU are:



Rugged Parallel Power
Firstly, the Rugged PDU can be configured with multiple AC inputs from paralleled Rugged UPS units to increase output power.

One PDU – Eight Output Connectors
Secondly, the unit offers maximum cable management, providing conditioned power for up to 8 outputs.

Robust
Unlike other power distribution strips, the Rugged PDU features circular connectors sealed with positive latching that protect against blown precipitation, wind, dust, sand, humidity, vibration, shock other environmental conditions.

EMI
Protects sensitive electronics from the effects of electro-magnetic interference when integrated with Acumentrics’ UPS systems.

Over Current is Under Control
Each output connector has a circuit breaker for over current protection, as well as manual control of each channel.

The Perfect Fit for Military Apps
This 1U-high, 30.48 cm deep and 4.54 Kg unit designed for standard military 19” racks. It also features MIL-STD connectors and components.



For more information on the rack PDU, contact us.

About Acumentrics

In conclusion, with modern Defence forces relying upon Computers and other sophisticated electronic equipment.  It is critical to keep that equipment online in harsh environments.  Acumentrics delivers AC and DC uninterruptible power sources for combat and heavy duty industrial applications.  Their portable power products are perfect for first responders, telemedicine systems and anyone needing an autonomous compact power solution.

Also Acumentrics delivers UPS Systems which deliver a clean AC or DC Power Supply in harsh environments.  Such as dust, rail, wind, heat, cold, vibration, shock and blowing sand.  Systems which an be mounted in 19″ Cabinets and in transit cases for immediate use.
