High Speed Data Acquisition

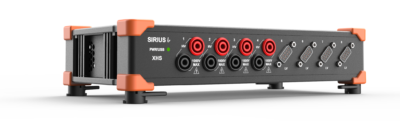

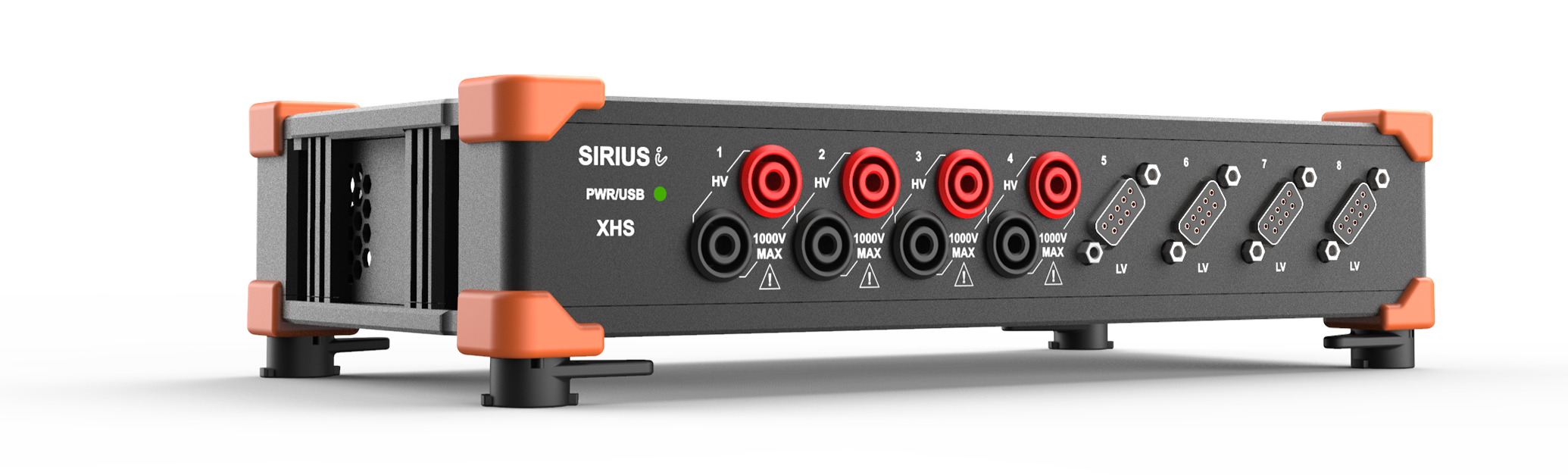

The SIRIUS XHS is a high speed data acquisition system with an amazing 15MS/sec sampling rate at 5MHz bandwidth.  It contains the Hybrid ADC Technology which enables the Sirius XHS users to select three modes of operation for each analog input channel – High Bandwidth Mode, Alias Free Mode or Ring Free Filtering.

Modern data interfaces such as USB 3.0, GLAN, XCP, CAN and OPC UA with PTP synchronisation allow for open and flexible connectivity.

It is the perfect instrument for Transient Recording, Power Analysis, Sound, Vibration and General data recording applications.

Dewesoft deliver the future of high speed data acquisition systems

Firstly, whilst the Dewesoft SIRIUS XHS High Speed Data Acquisition System looks similar to the standard SIRIUS Modular Data Acquisition System. This is new beast. Designed from scratch to deliver the future of high speed data acquisition.

  • Newly developed ADC converter technology which is able to operate at 15 MS/sec. Called the Hybrid ADC technology.
  • In addition, amplifiers that follow the capability of the new Hybrid ADC converter.
  • A powerful FPGA with an ARM processor running on the Linux operating system.
  • A new mainboard with even better galvanic isolation technology for channel-to-channel and channel-to-ground isolation.
  • Also, new data transfer interfaces (USB3.0 type C and Gigabit LAN ) to support huge data sampling speeds.
  • As well as PTPv2 Synchronisation Technology.

Watch the video below to learn more!

Features of SIRIUS XHS High Speed Data Acquisition System include:

HYBRID ADC TECHNOLOGY: Firstly, offers everything you ever wanted out of a high-end data acquisition system. The high dynamic alias free acquisition of 24-bit ADC systems with up to 1 MS/s acquisition rate. As well as 5MHz high bandwidth of 16-bit ADC’s up to 15 MS/s sampling rate. In addition, software selectable per input channel.

15 MS/s SAMPLING RATE AT 5 MHz BANDWIDTH: Secondly, up to 15 MS/sec sampling rate with 5 MHz bandwidth captures even the shortest transients to microseconds levels. Therefore, the sampling rate is software selectable per each analog input channel.

HIGH DYNAMIC ALIAS-FREE DAQ: Alias-free filtering allows perfect acquisition of signals in a 24-bit resolution with up to 150 dB dynamic range at 1MS/s sampling rate.

PERFECT SYNCHRONISATION: Users can select some channels to be high bandwidth and some to be alias-free, filtering is made in the way that all signals are perfectly time aligned with zero phase shift.

MODERN DATA INTERFACES: GLAN interface allows the distribution of devices with the PTPv2 synchronization. Also the USB3.0 interface is there for the fastest data transfer with a fast connection to the PC computer. In addition, OPC UA, CAN and XCP data interfaces allow easy integration into third party systems and test benches.

OPEN PROTOCOL SUPPORT: Data transferred. Using open OPC UA industry-standard protocol. In parallel, the data is available over XCP or CAN protocols. Allowing connection to ECU calibration software packages like ETAS INCA or Vector Canape.

HIGH GALVANIC ISOLATION: High channel-to-channel and channel-to-ground isolation up to CATII 1000V. Prevents damage to the systems from excessive voltage and avoids ground loops.

SMALLEST FORM FACTOR: With the standard SIRIUS sized chassis you can easily carry the SIRIUS XHS in your backpack along with your laptop for field measurements.

SOFTWARE INCLUDED WITH FREE LIFETIME UPGRADES: The easy-to-use but rich in functionality, award-winning Dewesoft X data acquisition software is included. All upgrades to the software are free forever with no hidden licensing or maintenance costs.

Therefore, if you would like further explanation on other features of the Sirius XHS such as:

Hybrid ADC Technology, High End Signal Conditioning Amplifiers, PTP Synchronization method, Next Gen Power, Power Quality Analyser and SIRIUS XHS Power with integrated DC-CT Current Transducer Applications, click the “more information” button below and you will be taken to the Dewesoft Overview Page.
More Information
Contact Us

Finally, Metromatics proudly sell, service and support the Dewesoft product range in Australia and New Zealand.
