Huntron Workstation Software

Huntron Workstation Software is the intelligent control platform behind Huntron Trackers and Access Probers.  Purpose-built for efficient fault detection on printed circuit boards.

This powerful Windows-based application streamlines test procedure setup.  In addition, it automates data capture, and helps engineers quickly pinpoint faulty components, such as resistors, with precision and confidence.



Powerful, Flexible, and Easy-to-Use Test Automation Software

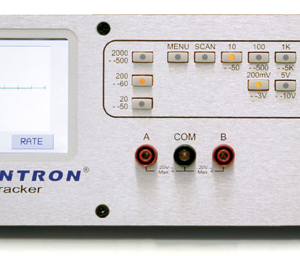

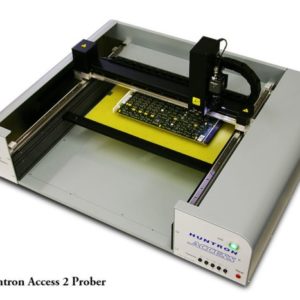

Huntron Workstation is the backbone of Huntron’s Tracker and Access Prober product line. Designed for engineers and technicians.  It provides a model-driven test platform that simplifies the process of fault diagnosis and component comparison. The software is intuitive yet robust—ideal for managing complex test routines and delivering consistent, repeatable results.


Key Features and Benefits

  • Comparison-Based Testing: Quickly identify faulty components by comparing signatures from suspect assemblies to known good ones. Results are displayed visually, making fault isolation faster and more efficient.

  • Image-Based Instructions: Embed image-guided directions at the board, sequence, and component levels for enhanced workflow clarity.

  • Supports Multiple Huntron Devices:


Automate Benchtop Instrument Measurements

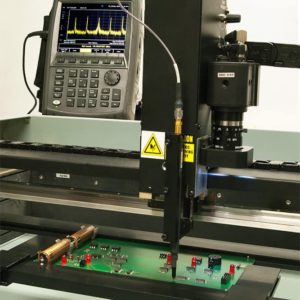

Huntron Workstation extends beyond signature analysis.  In addition, it automates data collection from third-party benchtop instruments.  Therefore, allowing you to capture, store, and compare measurements within one cohesive platform.

Supported Measurement Types:

  • Digital Multimeter (DMM)

  • Oscilloscope

  • Spectrum Analyser

  • LCR Meter

  • Resistance Meter

Currently Supported Instruments Include:

  • Keysight E4980AL LCR Meter

  • B&K Precision 2841 DC Resistance Meter (4-wire milliohm measurements)

  • Keysight/Agilent 34461A & 34410A Digital Multimeters

  • Tektronix 4050 DMM

  • Keysight DSO1022A & DSOX2022A Oscilloscopes

  • Keysight N9935A / N9938A and Rohde & Schwarz FSH4 Spectrum Analysers

Most standard measurement functions from these devices are fully supported within the software.


Compatibility & Utilities

  • Operating Systems: Windows 10 and 11

  • Database Support: Converts legacy 3.X and 4.X databases, including HBK files

  • Firmware Updates: Built-in utility for updating Tracker 30, 2800/2800S, and 3200S firmware

  • Download the Latest Version: Available from the Huntron Software Page


💡 Huntron Workstation Tips Blog

Struggling with flat or unclear signatures?
Learn how to fine-tune voltage, resistance, and frequency settings for more accurate diagnostics in our latest blog:
👉 Read: How to Optimise Signatures in Huntron Workstation ›



.

For more information, contact us.
