Rugged, Portable Mission Data System – RAID Storage, Built-In RDM Docking

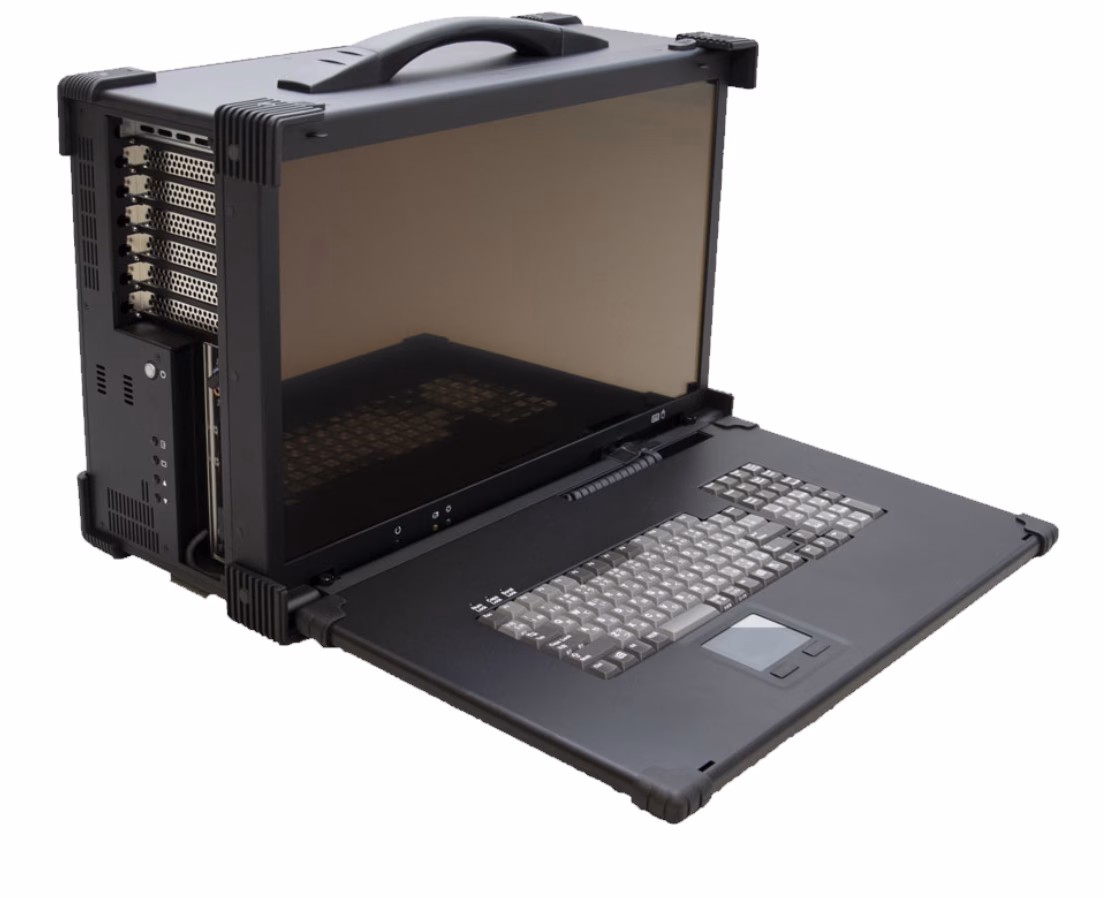

The Portable Planning and Debriefing System (PDS) combines a high-performance server platform with field-ready mobility. Its side-loaded RDM docking bay allows tool-free access to the four SSDs inside the RDM, while up to 72TB of internal RAID storage provides ample capacity for mission data archiving or analysis. Powered by Intel® Xeon® CPUs and running RedHat, Debian Linux, or Windows, the PDS supports advanced RAID management, encryption, and optional integration with external storage systems or tape archives. Dual Gigabit Ethernet ports come standard, with upgrades available for 10, 25, or 100GbE networking.
Metromatics offers full support for Galleon’s rugged planning and data management systems in Australia, ensuring rapid deployment and local assistance.
Key Features
• Integrated RDM docking station with 4x SATA 3.0 Gbps links
• Side-loaded RDM access – no tools required
• Read/write speeds up to 800MB/s
• Internal RAID storage up to 72TB (4x 18TB HDDs)
• Intel® Xeon® CPU with 8x DDR4 DIMM slots
• Integrated 21.5” display, keyboard, and touchpad
• Standard dual Gigabit Ethernet + optional 10/25/100GbE NICs
• Optional AES-256 encryption and key management
• Custom variants and external storage expansion available
• Includes padded case for field deployment
Applications
• Mission Planning & Post-Mission Debriefing
• RDM Data Loading, Offloading, and Archiving
• Map Data Loading for Flight Operations
• Sensor Data Preparation and Review
• Field-Based Secure RAID Storage
• Offline RDM Formatting and Initialisation
Interfaces & System Configuration
Chassis & Front Panel:
• Side-mounted RDM docking bay
• Integrated 21.5” LCD screen
• Keyboard and touchpad
• 4x USB ports, VGA, DVI, RS232
• CD/DVD R/W drive
Rear Panel & Network:
• 2x Gigabit Ethernet ports (standard)
• Optional: 10GbE, 25GbE, or 100GbE ports
Performance & Storage
| Component | Specification |
| CPU & Memory | Intel® Xeon®, 8x DDR4 DIMM |
| Storage | Up to 72TB RAID (4x 18TB 3.5” HDDs) |
| Operating System | RedHat / Debian Linux, Windows 10/Server |
| Data Rate | Sustained 800MB/s (host dependent) |
Power & Dimensions
| Specification | Value |
| Power Supply | 800W, 100–240V AC, 50–60Hz |
| Dimensions (mm) | 524 x 372 x 226 mm |
| Dimensions (inches) | 20.6 x 14.6 x 8.9” |
| Weight | ~33 kg (75.7 lbs)* |
*Weight varies based on configuration.
Why Choose the Portable Planning and Debriefing System?
• Fully integrated, field-ready data management solution
• Streamlines mission planning, analysis, and RDM transfer
• No tools needed for RDM exchange—faster turnaround
• High-capacity RAID for on-site archival and review
• Upgradeable networking for modern operations
• Backed by Metromatics’ local expertise and support in Australia
Why Choose Metromatics?
As Galleon’s authorised distributor in Australia, Metromatics offers:
- Expert local support and technical consultation
- Onshore servicing and integration advice
- Experience with defence, aerospace, and surveillance platformsContact us today to find out how the G1 microServer can be tailored to your mission-critical application.
