High-precision industrial motion control made simple

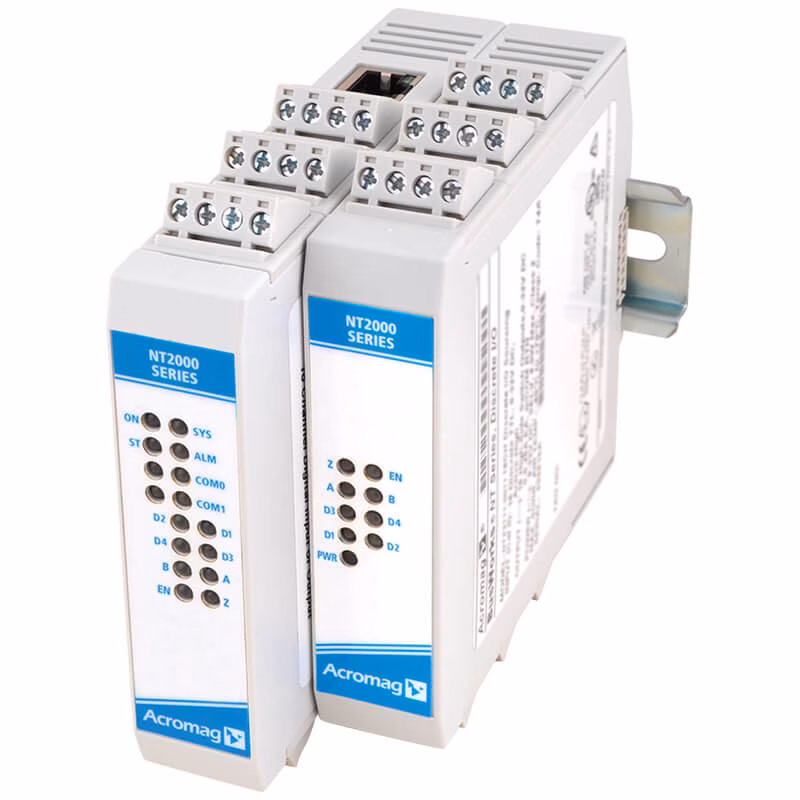

Simplify and upgrade your automation systems with the Acromag NT2710 Stepper Motor Controller Module. A powerful Ethernet I/O module that brings flexibility, and Industrial IoT (IIoT) readiness to single-axis stepper motor control applications.
Key Features
6 pulse train outputs (Step/Direction signals) for accurate motion command control
6 quadrature encoder inputs for real-time feedback on position and speed
4 general-purpose digital I/O channels for auxiliary control tasks
Built-in support for linear, triangular, trapezoidal, and S-curve motion profiles to enhance smoothness and reduce mechanical wear
Field-selectable Modbus TCP/IP, EtherNet/IP, or PROFINET industrial protocols
IIoT-ready: includes OPC-UA server, MQTT client, and RESTful API support
i2o® peer-to-peer and multicast messaging eliminates reliance on a central controller—enabling autonomous module-to-module communication
Dual RJ-45 Ethernet ports enable simplified daisy-chain network topology
Expand I/O seamlessly: mix with analog, temperature, and other digital modules for up to 64 I/O channels per IP address
In addition, built for harsh environments: 1500 V isolation between I/O, network, and power. Housed in a slim 25 mm DIN-rail package
,
Applications
Perfect for tasks requiring:
Fine motion control in machining, packaging, dispensing, positioning, and printing systems
Industrial operations aiming for smooth, low-shock movement with S-curve motion profiling
IIoT-enabled environments and real-time supervisory control through standard Ethernet protocols
Expandability & Architecture
As part of the modular BusWorks NT Series, the NT2710 functions as an Ethernet (NTE) base unit—easily expanded with up to three NTX modules on the internal RS-485 DIN-rail bus
Supports mixed I/O types (analog, digital, temperature) under a single IP, simplifying wiring and configuration
IIoT & Local Control Logic
Compatible with modern automation systems via OPC-UA, MQTT, and RESTful APIs—ideal for cloud integration and remote monitoring
Enables conditional (IF/THEN/ELSE) logic, alarm triggers, and data logging directly on the module—reducing latency and offloading routine tasks from central controllers
Why Choose the NT2710?
| Benefit | Description |
|---|---|
| Versatile Protocol Support | Easily integrates into existing networks using Modbus TCP/IP, EtherNet/IP, or PROFINET. |
| Smooth & Precise Motion | Multiple acceleration profiles reduce wear and enhance positioning accuracy. |
| Scalable & Flexible | Mix and match I/O types for up to 64 channels—expanding as your needs evolve. |
| IIoT Ready | Built-in web-based protocols ensure seamless data exchange and remote access. |
| Resilient & Compact | Rugged design suited for industrial environments; slim profile takes minimal space. |
Ordering & Support
The NT2710 Stepper Motor Controller Module is available directly from Metromatics, the authorised seller for Acromag in Australia.
Metromatics provides:
Local sales and technical support
Access to manuals, and updates
Assistance with integration into SCADA, PLC, and IIoT systems
