Rugged | Small Form Factor | High-Performance Embedded Computing

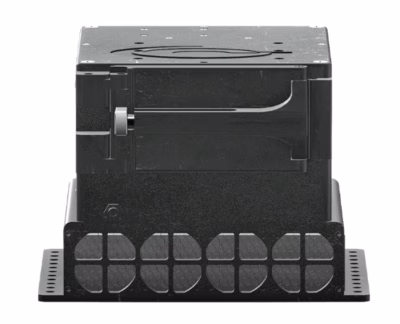

Metromatics proudly offers the XSR Mission Computer—a rugged, compact, and powerful processing platform designed for demanding environments. Whether it’s for UAVs, surveillance systems, or industrial vehicles, the XSR delivers unmatched reliability, security, and performance. We provide local sales, service, and support in Australia.
Applications
The XSR Mission Computer is ideal for:
- Unmanned Aerial Vehicles (UAVs)
- Unmanned Ground Vehicles (UGVs)
- Surveillance & Reconnaissance Systems
- Digital Signal Processing (DSP) Applications
- Industrial Automation
- Mass Transportation Platforms
Key Benefits
- SWaP-Optimised Design: Perfect for space-constrained applications
- High Performance: Latest Intel® Xeon® processors
- Rugged Build: Air-cooled (AC) or conduction-cooled (CC) options
- Flexible I/O: Customisable with XMC and MiniPCIe modules
- Data Security: Dual-layer FDE with NSA CSfC and NIAP approval
Highlights & Features
- Latest Gen Intel® Xeon® CPUs
- Up to 96GB DDR4 SDRAM with ECC
- NIAP-approved Software & Hardware Full Disk Encryption
- Certified to MIL-STD-810, MIL-STD-461, AS/EN 9100, and ISO 9001
- Modular architecture using Open Architecture COTS modules
I/O & Interfaces
- Up to 13x GbE Ports
- USB 2.0 (x3), USB 3.0 (x2)
- RS-232, RS-422, GPIO
- VGA, HDMI
- Power Input: 16–40V DC
- GPS Antenna Input with 1PPS Sync Pulse and NMEA data
Expansion Options
- 1x XMC (PCIe x8) site
- 3x Mini PCI Express sites
- Support for high-speed networking:
- Up to 10x 10GbE
- Up to 4x 25GbE
- Up to 2x 40GbE
- Up to 8x sFPDP channels
Environmental Specifications
- Operating Temp:
- 0°C to +50°C (Standard)
- -40°C to +71/75°C (Extended AC/CC)
- Altitude:
- Up to 40,000 ft (AC)
- Up to 60,000 ft (CC)
- Shock/Vibration: Designed for rugged military and industrial deployments
Dimensions & Power
- Conduction-Cooled (CC): 156 x 175 x 103 mm | Starting at 2.75 kg
- Air-Cooled (AC): 253 x 175 x 149 mm
- Power Consumption:
- Idle: 23W
- Max Load: Up to 85W
Operating Systems Supported
- Linux
- Windows
Security Features
- NSA CSfC-Listed Hardware and Software FDE
- Common Criteria-Approved Encryption
- Flexible Key Management (local/remote)
- Support for FIPS 140 hardware, quick erase, and military erase protocols
Why Choose Metromatics?
As the Australian distributor, Metromatics offers:
- Expert local sales support
- Onshore technical service and assistance
- Product knowledge tailored for defence, aerospace, and industrial users
Contact us today to learn how the XSR Mission Computer can power your next embedded system.
Galleon Embedded Computers, part of the Spectra Aerospace and Defense family alongside Calculex and Argon FDS, delivers rugged data acquisition, storage, computing, and display solutions for demanding military platforms. Metromatics is the authorised Australian distributor, providing local sales, service, and support to ensure mission success.
