Powerful Edge Computing with Flexible Connectivity

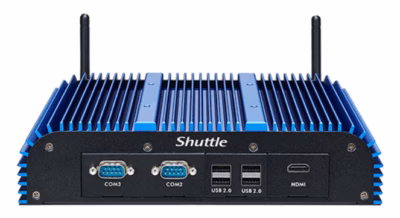

The Shuttle BPCAL02/03 Configurable IO Industrial PC offers powerful processing and excellent connectivity. It is perfect for smart city and transport projects.
Powered by 12th Gen Intel® Core i5/i7 Alder Lake processors and DDR5-4800 MHz memory, it easily handles complex tasks. These tasks include automatic number plate recognition (ANPR), traffic analytics, and managing multiple cameras. Its fanless, wide-temperature design ensures reliable operation in harsh Australian conditions.
Key Features
- Configurable I/O design – Tailor ports to your exact needs, including multiple LAN, RS-232/422/485 serial, USB 3.2, digital I/O, and optional PoE
- High-performance Intel® Core processing – 12th Gen Alder Lake CPUs with P- and E-core architecture for optimal performance and power efficiency
- DDR5 memory support up to 64 GB – Faster data handling for AI inference, ANPR, and video analytics
- Multi-display capability – Drive up to four independent 4K displays for surveillance walls, digital signage, or control room dashboards
- Rugged fanless design – Reliable, silent operation with wide-temperature support (BPCAL03: -20 °C to +60 °C)
- Flexible storage and expansion – Dual M.2 slots and optional 2.5″ bays for SSD/HDD and wireless/AI accelerator modules
- Advanced security & remote management – Hardware TPM, watchdog timer, Wake-on-LAN, and auto power recovery
- VESA or DIN-rail mounting – Streamlined installation in cabinets, roadside enclosures, or vehicle systems
- Windows 11 and Linux compatible – Seamless integration into diverse industrial and smart city ecosystems
Real-World Applications
With its customisable I/O and powerful edge computing capabilities, the BPCAL02/03 is ideal for:
- Car Park Recognition & Smart Parking – Process ANPR data, integrate gate control systems, and manage real-time parking availability
- Traffic Monitoring & Intelligent Transport Systems – Analyse live camera feeds, detect congestion, and integrate with city traffic control networks
- Automated Gate & Vehicle Access Control – Control boom gates and entry systems with reliable, low-latency performance
- Smart City Infrastructure – Support public transport information displays, environmental sensors, and data aggregation nodes
- Industrial Automation & IoT Gateways – Manage complex control loops, SCADA/HMI interfaces, and multi-protocol field devices
- Digital Signage & Multi-Display Dashboards – Power 4K displays in transport hubs, retail centres, or industrial control rooms
- AI & Machine Vision at the Edge – Run on-site image recognition, anomaly detection, or video analytics without relying on cloud latency
Why Choose Metromatics
As Shuttle’s Australian distributor, Metromatics provides local sales, service, and technical support.
We ensure every BPCAL02/03 Configurable I/O Industrial PC is installed and maintained to meet Australian electrical and environmental standards. Delivering peace of mind for critical smart city and industrial applications. Contact us for more information. If you’re looking for a smaller foot print pc check out this model for digital signage and this one for AI or IoT applications
Specifications
| System | |
| Processor | 12th Gen. Intel® Alder Lake Core i3-1215UE (default) Optional: i5-1235U, i5-1245UE, i7-1255U, i7-1265UE, Celeron® 7305E |
| Memory | 2 x 262 pin SO-DIMM up to 64GB Dual Channel DDR5 4800 MHz |
| BIOS | AMI UEFI 64 Mbit |
| Graphics | |
| Display Interface | 2 x HDMI 2.0b: 4096 x 2160@60Hz Display output max: 4 independent or clone |
| Storage | |
| Audio | |
| Audio Codec | Realtek ALC888s-VD 2-channel |
| Network | |
| Ethernet | 2 x Intel® 2.5G LAN |
| WLAN | Intel WiFI Module (802.11 a/b/g/n/ac) & BT 5.0 (Option) Realtek RTL8821CE 802.11a/b/g/n/ac + Bluetooth 4.2 WLAN card M.2 2230 E key (Option) External antenna (Dipole) x2 (Option) |
| I/O Interface | |
| LAN | 2 x RJ-45 (10/100/1000Mbps/2.5GbE) Supports Wake On LAN |
| Serial Ports | 1 x RS-232 (DB-9) 2 x RS-232/422/485 (DB-9) (RS232 with power supply :ring in/ 5V (standard) &12V (with specific optional board) |
| USB | 4 x USB3.2 Gen 2 (Type A) 4 x USB2.0 |
| Audio | 1 x Line-out 1 x Mic-in |
| Power | |
| Type | 1. 19V (without wide range board) 2. With wide range board, MB support 9-36V DC-in |
| Adapter | BPCAL02: 19V/4.74A 90W external adapter BPCAL03: 19V/7.89A 150W external adapter |
| Watchdog Timer | |
| OS Support | Windows 10 / 11 IoT 64bit Linux 64bit |
| Mechanism | |
| Mounting | VESA Mount 75 x 75 mm Ear Mount 256 x 100 mm Din Rail Mount 35 mm |
| Dimension (WxHxD) | 245 x 57 x 169mm |
| Weight | 2.85 kg |
| Operating Temperature | BPCAL02: 0 ~ 40°C BPCAL03: -20 ~ 60°C |
| Storage Temperature | -20°C ~ 80°C |
| Relative Humidity | 10% – 90% RH (non-condensing) |
| EMC | CE, FCC, VCCI, BSMI, RCM |
| Safety | cTUVus, CB, CEC, BSMI |
