Data Loggers

Ipetronik’s have various data logging devices available:

  • IPElog – High Performance Data logger for automotive applications with Real Time OS
  • IPElog2 – High Performance Data logger for automotive applications with Real Time OS
  • FLEETlog – Fleet Data Logger for automotive applications with Real Time OS
  • M-LOG – Modular Data Logger Platform with real time OS
  • M-LOG Upgrade Kit – M Log Hardware upgrade V3
  • IPEhub2 – Trace Logger with CAN2WiFi gateway

Click on the details tab below; for table highlighting the features of Ipetronik’s Data Loggers

Request a quote

Ipetronik range of Data Loggers
ProductIPEhub2M-LOG V3M-LOG Upgrade Kit

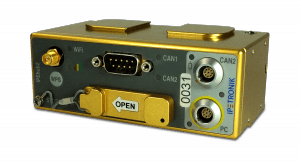

PictureTrace Logger & CAN2WiFi Gateway
data loggers
Modular Data Logger for Automotive Tests, Real Time OS
data loggers
M-LOG Hardware Upgrade V3
data loggers
FeaturesWireless LAN device according to WiFi 802.11 a/b/g
External interface providing 2 CAN bus inputs (ISO 11898-2) for data streaming to mobile devices using the IPEmotion App
Access Point mode with DHCP server
Optional storage to internal SD card (CAN trace logging)
2 multicolor LEDs: WiFi (signal strength), Data storage (memory usage)
CAN2 with software selectable termination resistor
Encrypted transfer of configuration data (IPEmotion App)
Compact and rugged aluminium enclosure (M2-Series)
CAN, LIN, Ethernet inputs, Digital I/Os
Data storage on a removable storage medium (cFast)
Complete galvanic isolation (inputs, power supply, enclosure)
Configuration with IPEmotion
Data streaming to IPEmotion, ETAS INCA, Vector CANape via CAN or XCPonETH
Configurable and upgradeable hardware design
Wireless data transfer optional with COMgate
No fans, hard drives or other mechanical rotating components
Latest-generation main board equipped with Intel® Atom™
RAM memory extension
New storage medium cFast up to 32 GB
WakeOnCAN, NoMessageLost Capability
CAN card supporting data preprocessing
Detailed inspection with functionality test and climatic test
2 years extended warranty on existing hardware
Technical Spec
Voltage Supply9 V DC to 36 V DC9 V DC to 36 V DC
Power Consumptiontypical: 4.0Wtypical: 9.0W
Operating Temperature-40 °C ... +85 °C-40 °C ... +85 °C
Storage Temperature-40 °C ... +95 °C-40 °C ... +95 °C
Relative Humidity5 % ... 95 % without condensation6 % ... 95 % without condensation
IP CodeIP 54 (ISO 20653 - 2013)IP 54 (ISO 20653 - 2013)
DimensionsW106 mm x H43 mm x D62 mmW158 mm x H69 mm x D102 mm
Weight360 g850 g
Versions2x CAN to WiFi, whip antenna, IPEmotion App P/No: IPEHUB2The highly efficient M-LOG V3 data logger is now available with the new COMgate V3 hardware module as an extension for wireless data transmission. The COMgate V3 permits fast, secure and convenient remote data transmission and is optimally suited for projects in the area of fleet management with the IPEcloud.M-LOG Upgrade Kit 1 8 GB cFast storage medium UPG-MLOG-V3-008
M-LOG Upgrade Kit 2 16 GB cFast storage medium UPG-MLOG-V3-016
M-LOG Upgrade Kit 3 32 GB cFast storage medium UPG-MLOG-V3-032
Brochureipe_datasheet_ipehub2_0ipe_datasheet_m_log_v3_prelim_1ipe_datasheet_m_log_v3_upgrade_kit_0
ProductFLEETLog2IPElogIPElog2

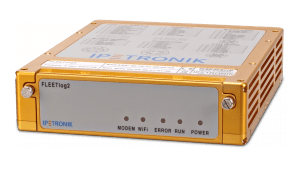

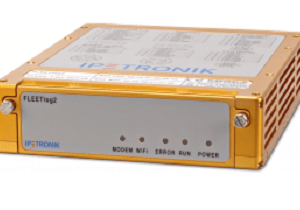

PictureFleet Data Logger for Automotive Testing, Real Time OS

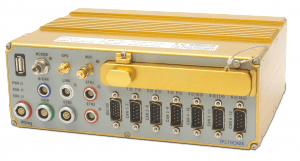

High Performance Data Logger for Automotive Testing, Real Time OS
High Performance Data Logger for Automotive Testing, Real Time OS
FeaturesUp to 4 CAN inputs
WakeOnCAN supported on all CAN inputs
Data exchange (configuration, measurement data) through USB and LAN
Data storage on a removable compact flash card (cF)
Complete galvanic isolation for CAN, LAN and DIG I/O inputs
Configuration with IPEmotion
Data streaming to IPEmotion, ETAS INCA, Vector CANape and many other tools via CAN or XCPonETH
WiFi option supports wireless data connection by integrated WiFi client
Modem option supports wireless data connection by integrated 3G modem
GPS option gives position by integrated GPS receiver
No fans, hard drives or other mechanical rotating components
12 CAN inputs
WakeOnCAN supported on all CAN inputs
Quickstart with NoMessageLost feature (NML) to acquire first CAN messages from wake-up
Low standby current consumption
Complete galvanic isolation (inputs, power supply, enclosure)
Configuration with IPEmotion
Data streaming to IPEmotion, ETAS INCA, Vector CANape via CAN or XCPonETH
Wireless conection via 3G, WiFi onboard
No fans, hard drives or other mechanical rotating components
16 CAN inputs, alternatively 10 CAN inputs + 6 LIN inputs
WakeOnCAN supported on all CAN inputs
Quickstart with NoMessageLost feature (NML) to acquire first CAN messages from wake-up
Low standby current consumption
Complete galvanic isolation (measuring inputs, power supply, enclosure)
Configuration with IPEmotion
Data streaming to IPEmotion, ETAS INCA, Vector CANape via CAN or XCPonETH
Wireless connection via GPRS/UMTS/3G/4G and integrated Wi-Fi interface as per standard IEEE 802.11 a/b/g/n
Supporting IPEcloud interface for central administration of data logger fleets
No fans, hard drives or other mechanical rotating components
Technical Spec
Input1 ... 4 CAN, 2 DIG IN, 2 DIG OUT12x CAN, 2x Ethernet, 4x DIG IN, 4x DIG OUT10x CAN, 6x LIN, 2x Ethernet (optional), 4x DIG IN, 4x DIG OUT
Voltage Supply9 VDC ... 36 VDC10 VDC ... 36 VDC (Switch-off for voltage < 6 V)9 VDC ... 36 VDC
Power ConsumptionTypical 7.5 WTypical 12.0 WTypical 10.0 W
Operating Temperature-40 °C ... +85 °C-40 °C ... +85 °C-40 °C ... +85 °C
Storage Temperature-40 °C ... +85 °C-40 °C ... +95 °C-45 °C ... +95 °C
Relative Humidity5 % ... 95 % without condensation5 % ... 95 % without condensation5 % ... 95 % without condensation
IP CodeIP 54 (ISO 20653 - 2013)IP 54 (ISO 20653 - 2013)IP 54 (ISO 20653 - 2013)
DimensionsW140 mm x H40 mm x D185 mmW206.5 mm x H72 mm x D151 mm W206.5 mm x H73 mm x D166.5 mm
Weight1020 g1890 g1750 g
VersionsFLEETlog2 Data Logger Basic unit FLEETLOG2
FLEETlog2 Option CAN Additional CAN bus input FL-LOG2-OPT-001
FLEETlog2 Option WiFi Built-in WLAN client FL-LOG2-OPT-002
FLEETlog2 Option Modem Built-in GPRS/UMTS/3G modem FL-LOG2-OPT-003
FLEETlog2 Option GPS Built-in GPS receiver FL-LOG2-OPT-004
FLEETlog2 Option Storage groups Multiple storage groups FL-LOG2-OPT-005
The FLEETlog2 permits fast, secure and convenient remote data transmission and is optimally suited for projects in the area of fleet management with the IPEcloud.
IPElog Atom 1.33 GHz, 1 GB, 12 CAN, WiFi, Modem, GPS IPElog-01IPElog2 Atom E3805 Dual Core, 1,33 GHz, 2 GB, 16 CAN, WiFi, Modem, GPS IPELOG2-01. The IPElog2 permits fast, secure and convenient remote data transmission and is optimally suited for projects in the area of fleet management with the IPEcloud.
Brochureipe_datasheet_fleetlog2_2ipe_datasheet_ipelog_0ipe_datasheet_ipelog2_prelim

For further information on the Ipetronik Data Loggers, contact us.
