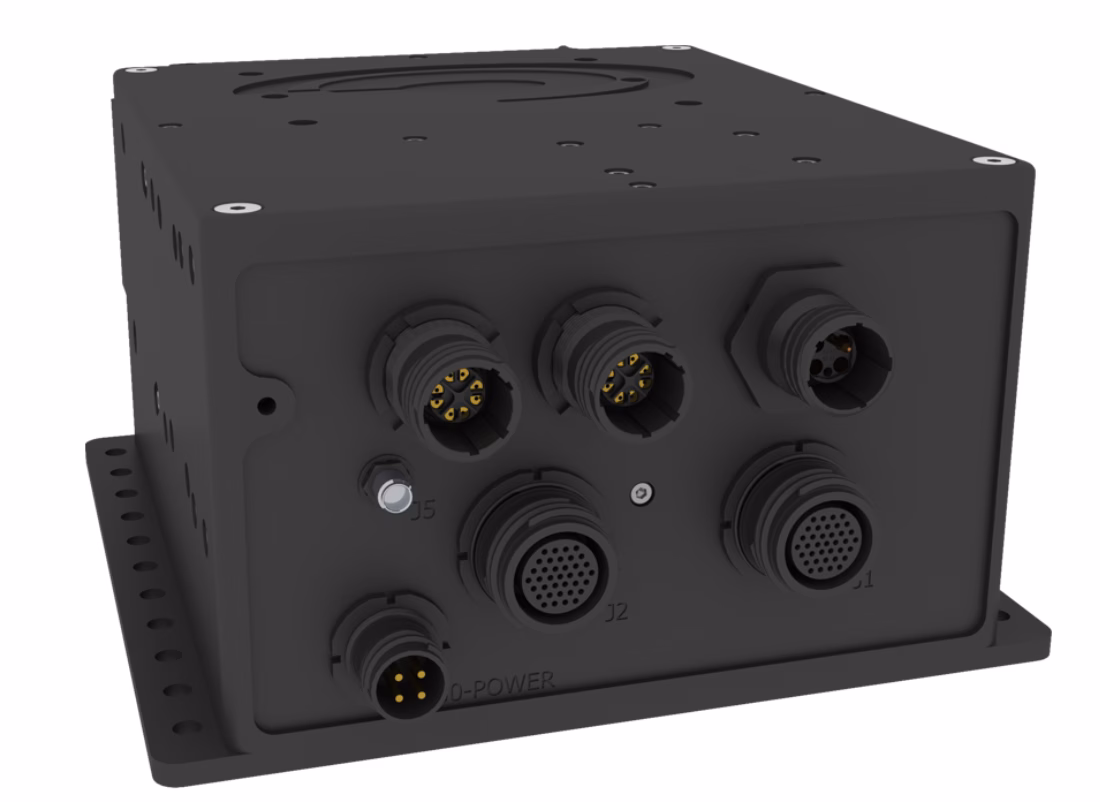

Rugged Network Recorder – Up to 13 GbE Channels
The XSR Gigabit Ethernet Recorder is engineered for high-performance Ethernet data capture in size, weight, power, and cost (SWaP-C) constrained environments. With up to 13 Intel® Gigabit Ethernet ports, each supporting full-rate UDP/TCP recording, the XSR is ideal for high-speed sensor logging, HD video recording, and surveillance. Its modular COTS architecture enables rapid upgrades, while its conduction-cooled, MIL-STD-tested housing ensures robust performance in extreme conditions.
Metromatics proudly provides local technical support, consultation, and integration services for Galleon products across Australia.
Key Features
• Up to 13x Intel® GbE Controllers (record at full line speed)
• Small form factor: 157 x 201 x 103 mm (9-channel CC)
• Up to 80TB removable SSD storage (MLC/SLC options)
• Removable Data Modules (RDMs) for quick offload
• Supports FIPS 140-2 and AES-256 encryption (SWFDE & HWFDE)
• GPS time/date synchronisation and timestamping
• XMC expansion site for flexible I/O
• Remote control via simple C++ API over GbE
• Designed for harsh environments – MIL-STD-810, MIL-STD-461
• Listed on NSA CSfC Approved Components List
Applications
• UAV, UGV, UUV Network Recording
• High-Speed Sensor Logging
• Surveillance and HD Video Recording
• Sensor System Development
• Cybersecurity and SIGINT Capture
• Mobile or Deployed Network Monitoring
Interfaces & Storage
Rear Panel Interfaces:
• Up to 13x Gigabit Ethernet
• 1x GPS antenna input
• 1x Power input (16–40V DC)
• Maintenance port
Front Panel Interface:
• Removable storage bay for SSD Data Modules
Storage Options:
• Up to 80TB MLC SSD
• Up to 40TB SLC SSD
• Supports NIAP-approved dual-layer SWFDE & HWFDE encryption
• FIPS 140-2 certified AES-256 optional encryption
GPS and Time Sync
• On-board GPS for time/date synchronisation
• Support for timestamping and NTP service
Environmental Specifications
| Specification | Value |
| Operating Temp | 0°C to +50°C (Standard), -40°C to +71/75°C (Extended) |
| Shock & Vibration | MIL-STD-810 compliant |
| Altitude | -1500 to 40,000 ft (AC), -1500 to 60,000 ft (CC)* |
| Humidity | Up to 100%, condensing |
| EMI/RFI | MIL-STD-461 compliant |
*Contact factory for extended altitude options.
Size, Weight & Power
| Configuration | Dimensions (mm) | Weight |
| 9Ch, CC, Small Form Factor | 157 x 201 x 103 | ~4.0 kg |
| 13Ch, CC, Half Rack | 194 x 341 x 89 | ~4.5+ kg |
- Power Consumption: 45W idle / 65W max
• Power Input: 16–40V DC
Why Choose the XSR Gigabit Ethernet Recorder?
• Record up to 13 full-speed GbE streams in a rugged design
• Flexible, modular architecture for long-term support and upgrades
• Secure data handling with NSA CSfC-approved encryption
• Removable SSDs reduce data offload time
• Fully SWaP-C optimised for mobile and unmanned platforms
• Proven military compliance (MIL-STD-810, MIL-STD-461)
• Backed by Metromatics’ Australian-based sales and service team
