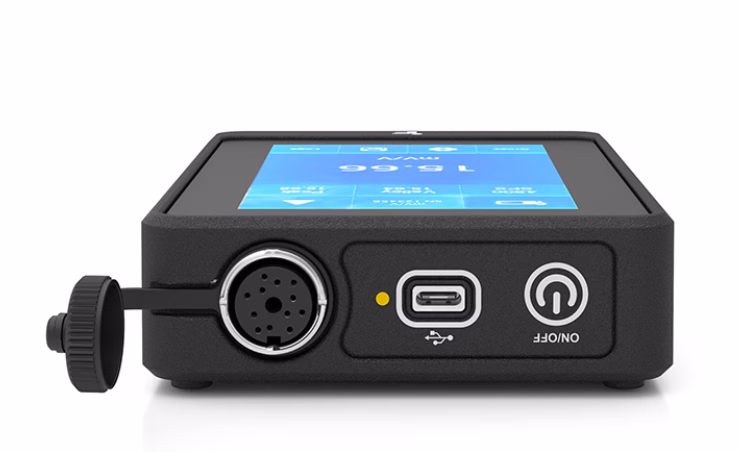

At Metromatics, the FUTEK Intelligent Hand-Held Display SENSLOG is a portable handheld load cell display and signal conditioning instrument. Designed for engineers, technicians, and calibration professionals who require accurate, noise-free measurement of force, torque, and pressure sensors.
It combines high-resolution measurement, onboard data storage, and PC-based analysis via SENSIT® software in a rugged IP-rated handheld device. Therefore, eliminating the need for a full DAQ system during setup, testing, or calibration.
Key Features
Handheld load cell display with integrated signal conditioning
24-bit ADC with high noise-free resolution for stable, repeatable readings
Sampling rates from 5 Hz up to 4,800 Hz, selectable for static and dynamic measurements
Compatible with strain gauge (mV/V), voltage, and current output sensors
TEDS support for automatic sensor identification and configuration
High-visibility LCD screen for clear viewing in bright lab, factory, or field environments
IP64-rated enclosure for protection against dust and water splashes
Internal data storage for logged measurements (export via USB)
USB connectivity for real-time data streaming and file transfer
Fully compatible with FUTEK SENSIT® software
Rechargeable battery-powered operation for portable use
Stores multiple sensor profiles for fast sensor changeover
Applications & Use Cases
Calibration and metrology laboratories
Manufacturing and industrial automation
R&D and engineering test labs
Field service and maintenance diagnostics
OEM system setup and commissioning
Defence, aerospace, automotive, biomedical, and materials testing
Technical Specifications
| Specification | Detail |
|---|---|
| Measurement Types | Force, torque, pressure |
| Sensor Inputs | Strain gauge (mV/V), voltage, current |
| ADC Resolution | 24-bit |
| Noise-Free Resolution | High stability for precision measurements |
| Sampling Rate | 5 Hz to 4,800 Hz |
| Display | High-visibility LCD |
| Enclosure Rating | IP64 |
| Data Storage | Internal memory with USB export |
| Software | FUTEK SENSIT® |
| Outputs | USB, analog voltage/current, relay |
| Power | Rechargeable internal battery |
| Operating Mode | Handheld / portable |
| Sensor Profiles | Multiple stored configurations |
To view full specifications sheet the SENSLOG Brochure
Software – SENSIT®
The SENSLOG IHH505 integrates with FUTEK SENSIT® software, allowing users to:
Configure sensors and scaling
View real-time measurement data
Log and export data for analysis and reporting
Manage multiple sensor profiles
Support calibration and validation workflows
Certifications & Compliance
CE compliant (EMC and electrical safety)
RoHS compliant
Installation Requirements & Options
No permanent installation required
Direct sensor connection via standard cabling
USB connection for PC and data export
Suitable for laboratory, workshop, and protected field environments
Ideal for temporary measurement and setup
Lead Times & Ordering Information
Metromatics is the distributor for FUTEK in Australia and New Zealand.
Lead times vary depending on configuration and availability.
Local application support and technical assistance are available.
Contact us for latest lead times.
Why Buy from Metromatics?
Over 35 years’ experience in sensors and test & measurement
Local Australian and New Zealand sales and technical support
Strong application expertise across industrial, transport, defence, and research sectors
Assistance with sensor selection, and integration
Long-term support beyond initial supply
Frequently Asked Questions
What makes the SENSLOG IHH505 different from basic load cell indicators?
It offers high noise-free resolution, selectable sampling rates, data logging, USB connectivity, and SENSIT® software support.
Can it capture dynamic measurements?
Yes. Sampling rates up to 4,800 Hz allow capture of dynamic force and torque events.
Is it suitable for industrial environments?
Yes. The IP64 enclosure and high-visibility display make it suitable for workshop and field use.
Does it support calibration workflows?
Yes. It is widely used in calibration and verification applications.
Can I export data for reports?
Yes. Data can be exported via USB and analysed using SENSIT® software.
