Rugged | High-Definition | Multi-Channel Video Recording with Removable Storage

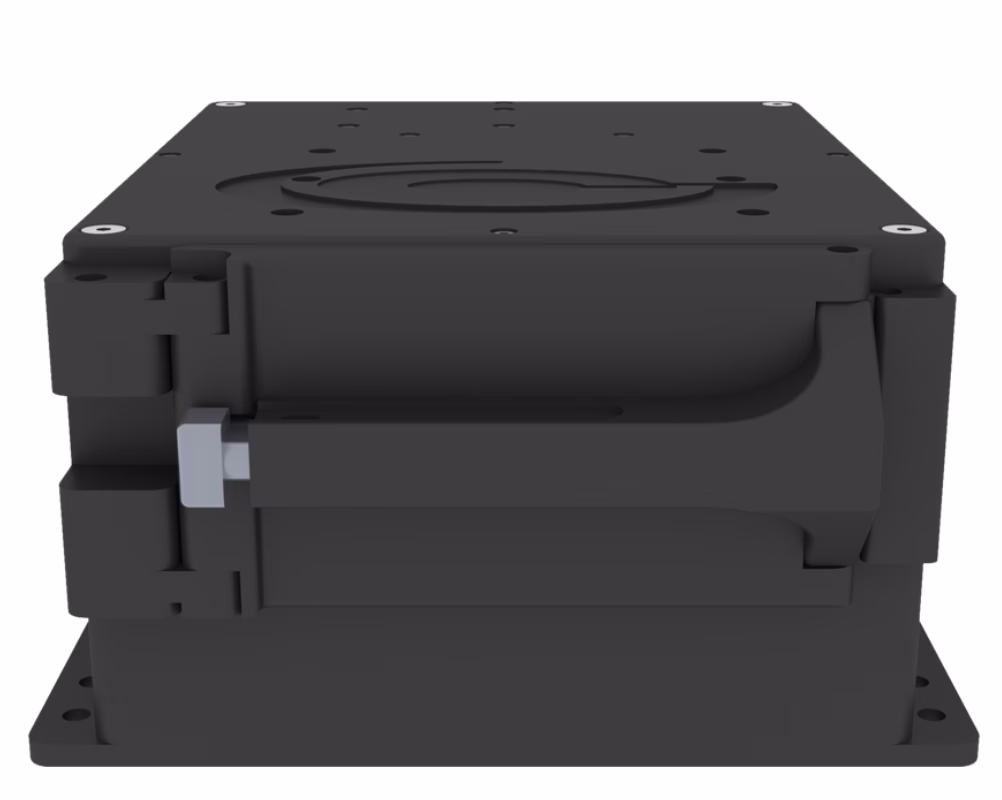

The XSR HD Video Recorder from Galleon Embedded Computing is a rugged, high-performance system designed to capture, store, and stream multiple high-definition video feeds in the most demanding environments. Supporting up to 8x HD video inputs (1080p60), uncompressed or compressed via H.265/H.264, the XSR is SWaP-C optimised and available in both small form factor and half-rack configurations. Metromatics proudly provides local sales, service, and integration support in Australia.
Applications
The XSR HD Video Recorder is ideal for:
- Surveillance and Intelligence Gathering
- Reconnaissance and SAR (Search and Rescue)
- Flight Test Instrumentation
- Unmanned System Video Capture
- Command & Control Video Monitoring
Key Benefits
- High-Definition Capture: Up to 8x HD-SDI or SD video channels
- High Storage Density: Removable SSDs up to 80TB
- Simultaneous Record and Stream: Live monitoring during recording
- Flexible Video Compression: Supports uncompressed, H.264, and H.265
- Instant Access: USB 3.0 docking station for fast data retrieval
- Secure: FIPS 140-2 encryption, CSfC compliant for classified data handling
Core Features
- Intel® Xeon® CPU (up to Gen 11)
- Up to 96GB ECC DDR4 SDRAM
- Records and streams up to 8x HD video inputs (3G-SDI/HD-SDI)
- Simultaneous record/playback with low-latency bypass
- Removable data accessible via standard media players (VLC, Windows Media Player)
- Simple C++ API for remote control over a dedicated Ethernet port
Audio/Video Inputs
- Up to 8x HD Video Inputs (3G-SDI, HD-SDI)
- Up to 8x SD Video Inputs (composite, RS-170, SD-SDI)
- Up to 8x Audio Channels
Networking & Other Interfaces
- 5x 1000BASE-T Ethernet Ports
- 2x 10GBASE-T Ethernet Ports (optional)
- 1x GPS Antenna Input
- 3x USB 2.0, 2x RS232, 1x Power Input
Storage & Security
- Up to 80TB Removable SSD Module
- FIPS 140-2 certified AES-256 hardware encryption
- Self-encrypting SSDs with Secure Erase capability
- NSA CSfC-approved data-at-rest protection options
Environmental Specifications
- Operating Temp:
- 0°C to +50°C (Standard)
- -40°C to +71/75°C (Extended – AC/CC)
- Altitude:
- Up to 40,000 ft (Air Cooled)
- Up to 60,000 ft (Conduction Cooled)
- Humidity: Up to 100%, condensing
- Shock/Vibration: MIL-STD-810
- EMI/RFI: MIL-STD-461
- Compliance: DO-160
Size, Weight & Power
- Small Form Factor: 157 x 201 x 103 mm (6.2 x 7.9 x 4.1″)
- Half Rack Option: 194 x 341 x 89 mm (7.6 x 13.4 x 3.5″)
- Weight: From 4.5 kg (9.9 lb)
- Power Consumption:
- Idle: 40–60W
- Max: 50–125W
- Power Input: 16–40V DC (MIL-STD-704 compliant)
Why Choose Metromatics?
As Galleon’s authorised distributor in Australia, Metromatics offers:
- Expert local support and technical consultation
- Onshore servicing and integration advice
- Experience with defence, aerospace, and surveillance platformsContact us today to find out how the G1 microServer can be tailored to your mission-critical application.
Contact us today to learn how the HD Video Recorder can power your next embedded system.
Galleon Embedded Computers, part of the Spectra Defence Technology family alongside Calculex and Argon FDS, delivers rugged data acquisition, storage, computing, and display solutions for demanding military platforms. Metromatics is the authorised Australian distributor, providing local sales, service, and support to ensure mission success.
