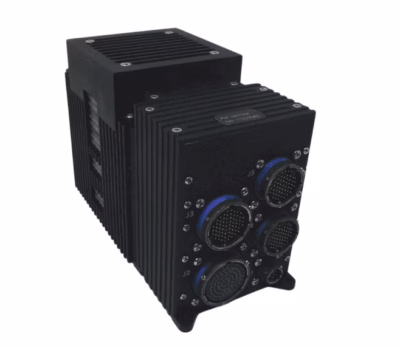

IRIG 106 Rugged Mission Data Recorder

The Calculex RIPR 1402 IRIG 106 Rugged Mission Data Recorder is purpose-built for demanding defence and aerospace missions. From multi-channel flight test instrumentation to electronic warfare, radar, and EO/IR sensor integration, it delivers secure, high-speed data capture and real-time streaming.

With very low SWaP, flexible I/O, and up to 16 TB of encrypted NVMe storage, it ensures reliable mission debriefing and training while meeting MIL-STD-810/461/704 qualifications. Backed by Metromatics’ local sales, service, and technical support, it provides proven performance wherever critical operations take place.

The Calculex RIPR 1402  is an IRIG 106 Rugged Mission Data Recorder.  Firstly, it is engineered for next-generation defence, aerospace and flight-test missions.  Those that demand high-speed, secure, and standards-compliant data capture. Building on Calculex’s proven RIPR architecture, the 1402 combines very low SWaP (Size, Weight and Power) with enhanced baseline connectivity, ensuring unmatched performance in even the harshest environments.

This advanced recorder features customisable Input/Output (I/O) capabilities, optional MIL circular connectors, and built-in data encryption for mission-critical security. Each channel supports individual data rates up to 10 Gbps, enabling real-time acquisition of high-bandwidth sensor, avionics, and video streams. Its CALCULEX NVMe Removable Memory Module (RMM) provides up to 16 TB of capacity at 5 GBps, allowing rapid offload and extended mission endurance. Designed for 28 VDC power with passive cooling, the 1402 delivers silent, reliable operation in confined or mobile installations.

Fully compliant with IRIG 106 open-standard formatting approved by the U.S. DoD.  The RIPR 1402 supports networked, serial, and discrete command/control.  As well as Ethernet video and data streaming, ensuring seamless interoperability with ground stations and mission-debrief systems. Its rugged design is qualified to MIL-STD-810, MIL-STD-461, and MIL-STD-704.  Guaranteeing dependable performance under extreme temperature, shock, vibration, and EMI/EMC conditions.


Key Features

  • Very low SWaP with enhanced baseline connectivity and customisable I/O

  • Individual channel data rates up to 10 Gbps for high-bandwidth mission sensors

  • Optional MIL circular connectors for rugged military integration

  • Open-standard IRIG 106 U.S. DoD-approved data formatting

  • Networked, serial, and discrete command/control interfaces

  • Ethernet video and data streaming for real-time monitoring and debrief

  • CALCULEX NVMe RMM storage up to 16 TB at 5 GBps with built-in AES-256 encryption

  • 28 VDC powered with passive cooling for efficient, fanless operation

  • Qualified to MIL-STD-810 / 461 / 704 for proven environmental and EMI/EMC resilience


Typical Applications

The Calculex RIPR 1402 IRIG 106 Rugged Mission Data Recorder is ideal for a variety of demanding missions

To begin with, it supports flight test instrumentation, capturing multi-channel avionics, telemetry, and high-speed video data with precision.  In addition, it excels in defence and aerospace missions that require secure, high-capacity, IRIG 106-compliant recording.  Moreover, it is perfectly suited for electronic warfare (EW), radar, and EO/IR sensor integration, enabling reliable real-time data streaming.
Equally important, it streamlines mission debriefing and training, thanks to its accurate, time-correlated playback.  Finally, it proves invaluable for unmanned aerial or ground systems, where low SWaP and extreme ruggedness are essential.


Local Australian Sales & Support

Furthermore, Metromatics is the exclusive Australian distributor for Spectra Defense Technologies, the parent company of Calculex.

As a result, we provide local sales, service, and technical support for the complete Calculex product line, thereby ensuring rapid response, expert advice, and dependable after-sales assistance throughout Australia.


With IRIG 106 open-standard compliance, 10 Gbps per-channel throughput, and up to 16 TB of encrypted storage, the Calculex RIPR 1402 IRIG 106 Rugged Mission Data Recorder sets a new benchmark for mission-ready data acquisition.

Consequently, it delivers secure, high-performance recording and streaming wherever your mission takes you.  Contact us to learn more today.

Specifications

Product Qualifications
EnvironmentalPer MIL-STD-810
Altitude5% to 95% non-condensing cooling
Temperature-40°C to +71°C Operational, -55°C to +95°C Storage
Humidity507.6, 5% to 95% non-condensing
Fungus508.8, Inert
Salt Fog509.7, 24 hrs, +35°C
Sand & Dust510.7 Proc I & II
Explosive Atmosphere511.7 Proc I
AccelerationProc II
Vibration514.8, Cat 12
Shock516.8, Proc I 20G’s and Proc V 40G’s
Gunfire Shock519.8, F-16 Profile
EMI per MIL-STD-461CE102, CS101, CS114, CS115, CS116, RE102, RS103
EMC per MIL-STD-70428 VDC: Compliant w/ 50 msec holdup

RIPR Model 1402 Recorder – CALCULEX will take you to the log in page to allow you to download the spec sheet.
