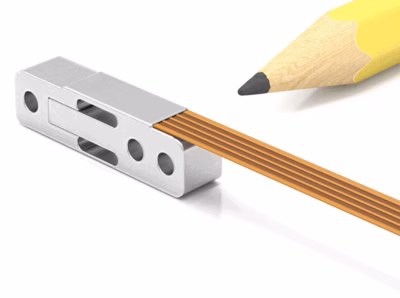

Key Features & Benefits Micro Parallelogram Load Cell LSM 100
Ultra-Low Profile – Total height of just ~0.25 in (6.4 mm), making it suitable for very compact mounting or constrained spaces.
Capacity & Overload Protection – Rated at 450 g with a 1000% safe overload margin, providing durability against accidental over-loading.
Good Output & Zero Balance – Nominal output ~3 mV/V, zero balance ~1.6 mV/V; ensures measurable sensitivity while maintaining stability.
Material & Build – Made from 2024-T4 aluminum, serial number laser-engraved, RoHS compliant. Compact, rugged design with a micro parallelogram configuration.
Cable & Connector – Supplied with a 4-conductor flat flex cable (1 mm pitch), ~2.5 in long; lightweight and OEM-friendly interconnect.
Temperature & Environmental Range – Operating roughly -60 °F to +200 °F (≈ -51 °C to +93 °C); temperature compensated range ~60-160 °F (≈ 15-71 °C).
High Accuracy & Repeatability – Nonlinearity ±0.05% of rated output (RO), hysteresis ±0.05% RO; non-repeatability ~±0.02% RO.
Technical Specifications Micro Parallelogram Load Cell LSM 100
| Specification | Detail |
|---|---|
| Capacity | 450 g (~4.41 N) |
| Rated Output | ~3 mV/V nominal |
| Zero Balance | ~1.6 mV/V ±10% |
| Safe Overload | 1000% of R.O. |
| Bridge Resistance | ~1000 Ω nominal |
| Nonlinearity | ±0.05% RO |
| Hysteresis | ±0.05% RO |
| Nonrepeatability | ±0.02% RO |
| Material | 2024-T4 Aluminium |
| Deflection (nominal) | ~0.003 in (≈ 0.08 mm) under rated load |
| Cable Connection | 4-conductor flat flex cable (FFC), 1 mm pitch, 2.5 in length |
| Operating Temperature | -60 to +200 °F (-51 to +93 °C) |
| Compensated Temperature | ~60 to 160 °F (≈ 15 to 71 °C) |
| Weight | ~0.01 lb (≈2.3 g) |
Typical Applications Micro Parallelogram Load Cell LSM 100
High-precision medical devices and micro-weighing systems
OEM embedded systems where space and weight are constrained
Industrial instrumentation or process sensors for light loads
Robotics, automation, feedback sensors in compact assemblies
Laboratory equipment or test benches requiring fine load measurements
Why Choose Micro Parallelogram Load Cell LSM 100
High Sensitivity in Tiny Packages – Small size without sacrificing signal quality.
Robust Overload Capability – Gives extra protection in real-world usage to protect from damage.
OEM Integration Friendly – Flat flex cable and mounting provisions specially designed for high volume and repeat installations.
Stable & Accurate – Tight specifications for nonlinearity, hysteresis, and temperature behaviour ensure reliable performance.
Support & Calibration – Backed by FUTEK’s calibration and standards; Metromatics can assist in integration, calibration, and selecting the right instrumentation.
Ordering & Configuration Options
If you would like to learn more about this product or place an order, please contact us.
When selecting an LSM100, consider specifying:
Mounting provisions – the non-loading end has mounting holes; ensure compatible fixture.
Cable length or alternative cable type if needed.
Environmental conditions – if operating near temperature limits or in harsh environment, check temperature compensation and insulation.
Calibration or zero-balance requirements as needed for your instrumentation.
Finally, the LSM100 is a micro parallelogram Load Cell. Download the FUTEK LSM100 datasheet (PDF) to view technical specifications and configuration options.
