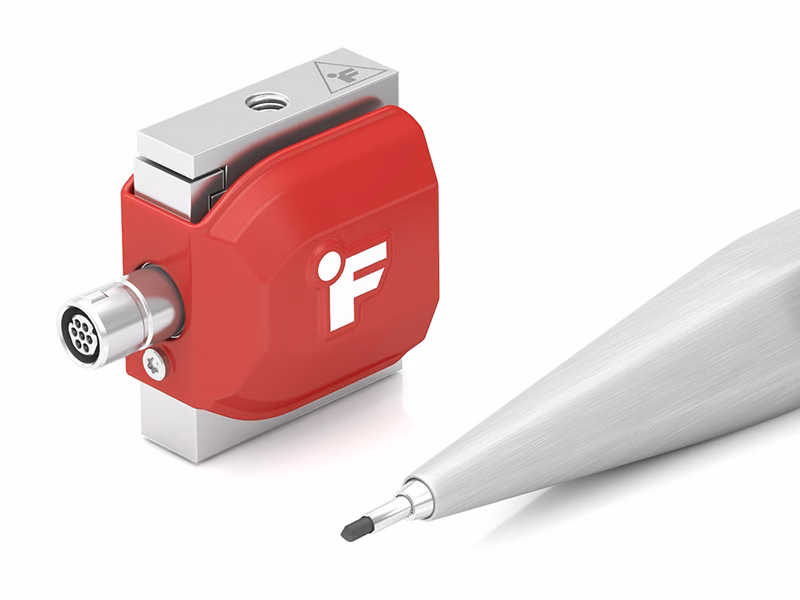

Digital Miniature S-Beam Load Cell LSB 206

The FUTEK LSB206 is a cutting-edge miniature S-Beam load cell with integrated digital output via SPI and UART interfaces. Designed for precision force sensing in both compression and tension, the LSB206 combines compact form factor with modern digital communication, making it ideal for advanced applications in embedded systems, industrial automation, instrumentation, and IoT devices.

Key Features & Benefits of the Digital Miniature S-Beam Load Cell LSB 206

  • Digital Output (SPI & UART) – Delivers direct digital signals, eliminating the need for external amplifiers and improving signal integrity over long cable runs.

  • Miniature S-Beam Design – Compact size enables integration into tight spaces or custom assemblies.

  • High Accuracy & Linearity – Ensures precise measurement with tight nonlinearity, hysteresis, and repeatability specifications.

  • Robust Overload Protection – Designed to handle unexpected force peaks, protecting your system from damage.

  • High Durability & Stability – Made to last in dynamic or cyclic loading environments.

  • Stainless Steel Construction – Offers corrosion resistance and strength, ideal for demanding or industrial environments.

  • Temperature Compensation & Calibration – Built-in compensation to maintain accuracy across temperature ranges.

  • Cable & Connector Options – Flexible connectivity to match your system interface requirements.


Technical Specifications of the Digital Miniature S-Beam Load Cell LSB 206

SpecificationDetail
Output InterfaceDigital via SPI & UART
Capacity RangeVarious models covering light to moderate loads
Nonlinearity / HysteresisTight rated tolerances (±0.x % RO typical)
Safe OverloadHigh safety margin (varies by capacity)
MaterialStainless steel body
ConstructionMiniature S-Beam geometry with digital electronics
Operating TemperatureDesigned to handle a broad temperature range
CalibrationFactory calibrated, temperature compensated
ConnectivityPCB interface, optional cable / connector configurations

Note: For full detailed specifications (capacities, electrical values, mechanical properties), see FUTEK’s official datasheet.


Typical Applications

LSB206 is ideal for applications that need digital signal integration and high precision:

  • Embedded systems and microcontroller / FPGA based designs

  • Industrial IoT devices and smart sensor nodes

  • Robotics and automation where low latency digital feedback is needed

  • Test & measurement systems with digital instrumentation

  • OEM applications requiring compact, digitally interfaced force sensing


Why Choose the Digital Miniature S-Beam Load Cell LSB 206

  • Integrated Digital Interface – Avoids the need for external signal conditioning hardware.

  • Precision & Stability – Maintains accuracy in real world conditions (temperature, vibration, etc.).

  • Ease of Integration – SPI/UART compatibility with standard microcontrollers, embedded platforms, and control systems.

  • Support & Expertise – Assistance in choosing the right model, wiring, firmware setup, calibration, etc.

  • Quality & Calibration – Supplied with calibration traceability and tested performance.


Ordering & Configuration Options

If you would like to learn more about this product or place an order, please contact us.

When ordering your LSB206, specify:

  1. Desired capacity (matching peak load plus safety margin)

  2. Preferred digital interface / pinout (SPI, UART, or both)

  3. Connector / cable preferences (length, jacket, connector type)

  4. Environmental or mounting constraints (temperature extremes, off-axis loads, vibration)
