Mobile Data Terminal

Ruggon offers a 7” Mobile Data Terminal with Projected Capacitive Touch technology.  Ideally used for Fleet Management, Law Enforcement, Police MDT and out in the field.  It is a rugged and reliable Android  with Google Mobile Services certified solution, with a sunlight readable display, CAN Bus and connectivity options packaged at a competitive price.

Metromatics provides superior local sales, service and support for this product in Australia.

To learn more about this 7 Inch Mobile Data Terminal; read on below.

The RuggON VIKING is a 7 Inch Mobile Data Terminal with Android 11.  Including Google Play and Google Map Interfaces.

Powerful Performance

Firstly, it is equipped with the reliable Qualcomm Snapdragon 660 octa-core high performance processor and Android 11 along with certified Google Mobile Services.

Sunlight Readable Touch Screen

It contains advanced PCT (Projected Capacitive Touch Display) technology with a Sunlight Readable Display.  Therefore, making it a visible partner as a mobile data terminal for inside police cars, ambulances and other first responder vehicles.

Fleet Management at your Service

Secondly, it has Raw CAN bus and optional SAEJ1939 to enable monitoring of the vehicle status to prevent down time.  In addition, built in GNSS and NFC to allow driver identification and vehicle tracking.

Diverse range of Communication Protocols

Also equipped with a diverse range of communication protocols.  Including 4G LE, Wi-Fi5 and Bluetooth 5.0, the Viking is a gateway for multiple other devices whilst supporting simultaneous voice and files transmission to provide overall efficient of fleet management.

Finally, for more information, contact us.

Other features of this Mobile Data Terminal Computer includes:

  • 7 Inch Projected Capacitive Touch Display with intuitive interface
  • One USB Type-C Port with DisplayPortAlt Mode allowing an extra display when required
  • Android 11 with Google Mobile Services Certified
  • Auto Dimming Function
  • Health Readiness via CAN bus
  • Diverse Wireless Connectivity for in field usage
  • Built in NFC Reader
  • Power Management with ignition sense and battery back up
  • Perfect to perform as a Police MDT unit



Specifications

SystemQualcomm® Snapdragon™ 660 Octa-Core, 1.9GHz
3GB LPDDR4 RAM, 32GB eMMC storage
Built-in dual speaker
OS supports Android 11 Google Mobile Services (GMS) certified
Display7”TFT LCD WSVGA (1024 x 600)
Sunlight readable display supports auto-dimming
Capacitive multi-touch screen (PCT)
I/O InterfaceUSB 3.1 type C x 1 (DP Alt Mode supported), USB 2.0 type A x 2
RS-232 with power supported x 1, RS-232/422/485 x 1
Gigabit Ethernet (RJ45) x 1
Audio headset jack x 1
Micro SD slot x 1, Micro SIM slot x 2
Raw CAN bus, optional SAE J1939 support
DI x 2, DO x 2
Power9~36 VDC input
Vehicle power protection (ISO7637-2)
Ignition sense with delay on/off setting
UPS backup battery
DurabilityIEC 60529 IP65 and MIL-STD-810H certified
Vibration, shock and 5' resistance
Operating temperature : -20° C to +60° C
CommunicationsWiFi 5 (IEEE 802.11ac 2x2 MU-MIMO)
Bluetooth V5.0
GNSS (GPS / GLONASS / BeiDou/ Galileo)
4G LTE / WCDMA / GSM
NFC reader

Accessories

wi fi bti antenna for mobile terminal unitwwan antenna for mobile terminal unitmounting kit for mobile terminal unit

Wi-Fi / BT Antenna

WWAN Antenna

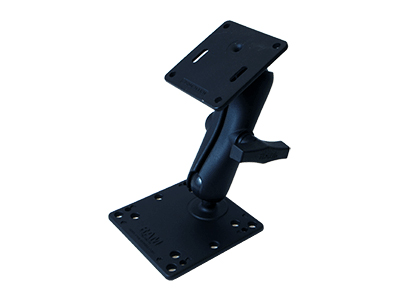

Mounting Kit
