Quad Channel Serial FPDP

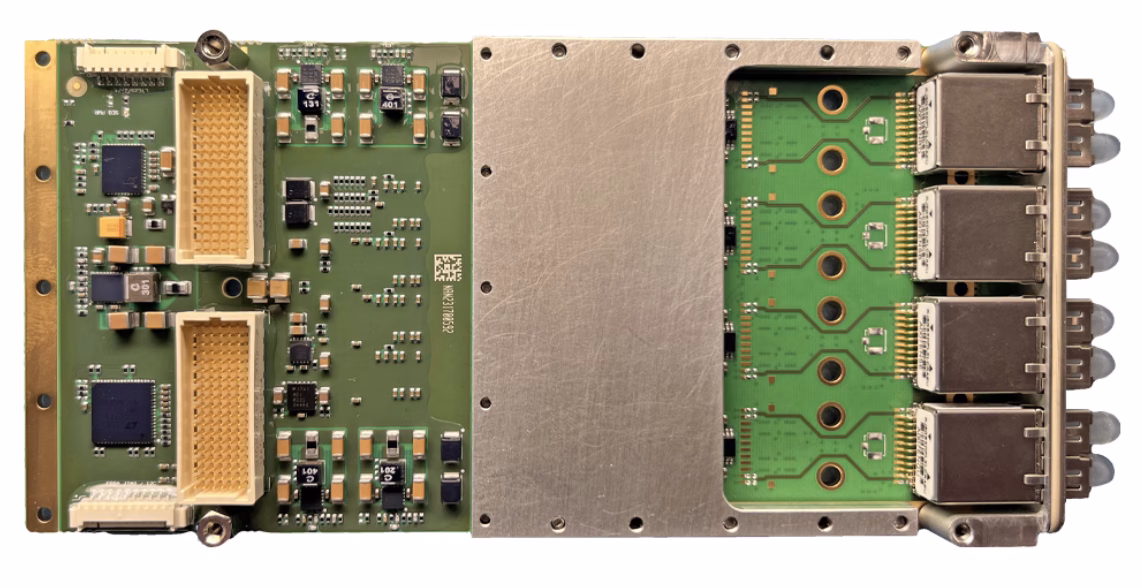

The Titan sFPDP XMC from Galleon Embedded Computing is a high-performance, low-power serial front panel data port (sFPDP) interface card, designed for data-intensive applications such as radar processing, signal intelligence, sensor data capture, and missile testing. Powered by the energy-efficient Intel® Arria® 10 FPGA, it supports up to four individually configurable sFPDP channels, with speeds ranging from 1.0625 Gbps to 10.3125 Gbps.

Quad Channel Serial FPDP – Rugged High-Speed Data Interface – Up to 10.3125 Gbps

Applications | Benefits

‣ Missile testing | ‣ High performance
‣ Radar development & data recording | ‣ Low power
‣ High-speed sensor data capture | ‣ Air- and conduction cooled options
‣ Geological survey and seismic | ‣ Flexible I/O routing
‣ Physics research | ‣ Deep memory buffering

Designed for flexibility, the board is available in rugged air cooled and conduction cooled versions, making it good for harsh environmental conditions. High speed interfaces can be routed via optical LC front connectors or via rear I/O (P16), this is great for integration into a wide range of embedded systems. Standard duplex LC transceivers are available in 850nm (multi-mode) or 1310nm (single-mode) options.

The Titan sFPDP XMC features 2GB of onboard SDRAM, great for deep buffering and elasticity for high throughput workloads. The PCIe x8 host interface establishes high-bandwidth connectivity to the system CPU, while programmable clock synthesizers allow for custom link speeds.

Included Linux drivers and a full SDK with C++ API support streamline integration and development for defence, aerospace, and research applications. Multi board synchronization and time stamping support for precise data coordination across distributed systems.

Galleon Embedded Computing’s quality management system is certified to AS/EN 9100 and ISO 9001.

Key Features

  • 4-channel sFPDP (VITA 17.1 / 17.3 compliant)
  • Intel® Arria® 10 FPGA
  • Up to 10.3125 Gbps link speed
  • PCIe x8 XMC2 (VITA 61) host interface
  • 2GB SDRAM for deep FIFO buffering
  • Optical duplex LC or rear I/O interfaces
  • Conduction- or air-cooled ruggedisation
  • Programmable clock synthesiser for custom speeds
  • Multi-board timing synchronisation
  • Linux drivers and C++ API included

Technical Overview

SpecificationDetails
FPGAIntel® Arria® 10
Memory2GB SDRAM
Link Speeds1.0625–10.3125 Gbps (configurable)
InterfacePCIe x8 via XMC2 (VITA 61)
OpticsLC connectors (850nm MM or 1310nm SM) / Optional rear I/O
Temperature-40°C to +75°C (air cooled), -40°C to +85°C (conduction cooled)
HumidityUp to 100%, condensing
Form FactorRugged XMC (air- or conduction cooled), conformal coated
SoftwareLinux drivers, SDK, and C++ API

To build your Quad Channel Serial FPDP or request a quote, contact Metromatics—Galleon’s official Australian distribution and integration partner.

Why Choose Metromatics?

As Galleon’s authorised distributor in Australia, Metromatics offers:

  • Expert local support and technical consultation
  • Onshore servicing and integration advice
  • Experience with defence, aerospace, and surveillance platforms

Contact us today to learn to learn more about this product.

Galleon Embedded Computers, part of the Spectra Defence Technology family alongside Calculex and Argon FDS, delivers rugged data acquisition, storage, computing, and display solutions for military platforms. Metromatics is the authorised Australian distributor, providing local sales, service, and support to ensure mission success.

Quad Channel Serial FPDP – Ultra Rugged – Galleon Embedded Computing

This link will take you to the Galleon Embedded Computing website from which you can sign in and download the spec sheet.
