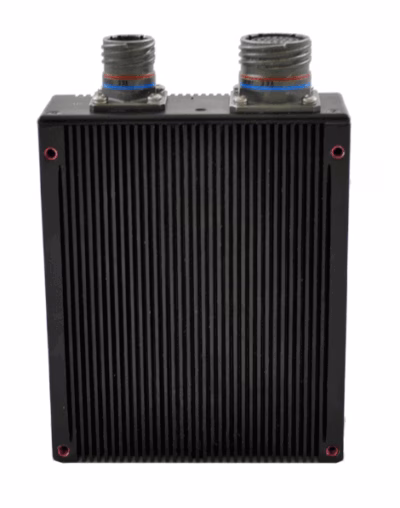

Rugged Computer – ACB100 “Brick” Computer Platform

The ArgonFDS ACB100 Rugged Computer is a compact, military-grade mission computer.  Built to perform in the harshest conditions. Measuring only 12.95 cm × 10.64 cm × 3.81 cm and weighing around 0.9 kg.  This fully sealed, convection-cooled rugged PC delivers reliable processing power with ultra-low power consumption.

Designed to meet MIL-STD-810 and MIL-STD-461 for shock, vibration, temperature extremes and EMI/EMC.  It’s ideal for defence, aerospace, naval, and industrial embedded computing applications.

Complete the form below to request a quote

Or call us on +61 7 3868-4255

  • This field is for validation purposes and should be left unchanged.

Here’s how to receive a quote for this product

  1. Complete the quote form and submit
  2. A friendly expert will contact you shortly after to discuss your personal needs
  3. We will provide you a simple but comprehensive quote on what it will take to build your Custom Design

It only takes a minute to complete the first step. Start now!

The ACB100 Rugged Mission Computer combines a tough aluminium chassis with advanced processing performance to meet the size, weight and power (SWaP) demands of modern mission systems.


Key Features

  • Compact and lightweight – Approx. 12.95 cm × 10.64 cm × 3.81 cm and ~0.9 kg, ideal for tight installations in aircraft, vehicles, ships, or portable kits.

  • Fanless, convection-cooled design – Eliminates moving parts for greater reliability and lower maintenance, with full environmental sealing.

  • Low power consumption – Operates on 7–10 W typical, optimised for low-SWaP defence and industrial deployments.

  • Flexible computing power – Based on Intel x86 architecture (e.g., N6415 processor).  Supporting Windows or Linux operating systems for versatile mission computing.

  • Customisable I/O – Configure USB, RS-232, Gigabit Ethernet, VGA video, optional wireless or GPS.  In addition, a frame grabber to match specific system requirements.

  • Rugged MIL-STD compliance – Designed to meet MIL-STD-810 (shock 40 g, vibration 2.2 grms, –10 °C to +55 °C or –40 °C optional) and MIL-STD-461E (EMI/EMC).

  • Extreme environment resilience – Fully sealed against dust, sand, and salt fog; operates at altitudes up to 40,000 ft and in humidity up to 95% non-condensing.


Key Benefits

  • Mission-ready reliability – Built to survive airborne, maritime, and ground environments.  Where constant vibration, temperature swings, and EMI are everyday challenges.

  • Space-saving performance – Combines high compute density and ultra-compact design.  Ideal for unmanned systems, mobile command posts, or vehicle and aircraft consoles.

  • Low maintenance and long life – Fanless cooling and solid-state storage reduce wear points.  Extending service life and improving MTBF.

  • Integration flexibility – Wide voltage input (9–36 VDC), rich I/O, and configurable connectors.  Make it easy to embed in new builds or retrofit projects.

  • Proven defence pedigree – Backed by Spectra Defense Technologies engineering and Metromatics’ local support, ensuring dependable supply and after-sales service.


Applications

The ArgonFDS ACB100 Rugged Computer is ideal for mission-critical applications requiring compact, sealed, and highly reliable computing, including:

  • Defence & Aerospace – To begin with, it supports mission processing in fixed-wing and rotary aircraft, UAVs, and UGVs, as well as control and data fusion for C4ISR systems.

  • Naval & Maritime – Moreover, it excels in bridge and shipboard computing where vibration, salt fog, and humidity demand military-grade durability.

  • Ground Vehicles – In addition, it is perfect for tactical command, weapons control, or surveillance processing within armoured or utility vehicles.

  • Industrial & Harsh Environments – Finally, it proves valuable for oil & gas monitoring, mining equipment, or remote industrial automation in extreme conditions.


Local Expertise and Support

As the Australian and New Zealand distributor for ArgonFDS, part of the Spectra Defense Technologies group, Metromatics offers more than just hardware supply.

In addition, we provide local engineering, integration advice, and rapid after-sales service.  So that the ACB100 Rugged Computer is deployed with minimal risk and maximum confidence.


Get a Quote or Learn More

Therefore, if you need a mission-ready rugged computer for defence, aerospace, or industrial applications.  The ArgonFDS ACB100 delivers compact power and proven durability.

To take the next step, contact Metromatics today to review specifications, discuss integration options, and request pricing.

Specifications

Overall Unit
Dimensions12.95 cm × 10.64 cm × 3.81 cm
Weight~0.9 Kg
Power Input9 to 36VDC
Power Consumption7W to 10W typical, depending on usage profile
User ControlsOn/Off switch or specify
ChassisMilled aluminium, fully enclosed
ConnectorsUser selectable from a range of MIL circular or specify
Computer
ProcessorIntel® Pentium N6415 or better
RAM4 GB DDR3 or specify
Storage128GB solid state HD or specify
OSWindows 10 or specify
I/OUSB, RS232, GigE, VGA out, specify
WirelessWiFi 802.11x with flush mount antenna (option)
GPSCommercial – specify antenna or comes with sealed SMA connector (option)
OtherVideo frame grabber or other I/O upon request (option)
Environmental
(Designed to meet, but is not limited to, the following selected specifications. See specifications for all details.)
Operating Temp-10°C to +55°C (-40°C Option)
Storage Temp-40°C to +70°C
Shock40g, 11msec
Vibration2.2grms random
EMI/EMCDesigned to MIL-STD-461E
Altitude40k ft operating/non-operating
Salt Fog, Sand/DustUnit is 100% enclosed, resistant to salt fog, fungus
HumidityOperating & storage – 95% @25°C, non-condensing

For detailed specifications, visit the ArgonFDS website where you can log in and download the official ACB100 datasheet.
