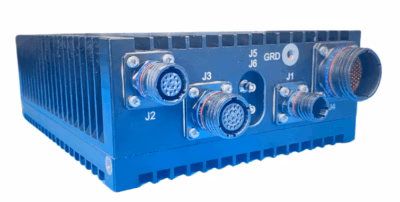

Rugged Mission Computer ACB300

The ArgonFDS ACB300 Rugged Computer delivers server-grade performance in a compact, fully sealed, military-grade enclosure.

Measuring approximately 21.8 cm × 17.3 cm × 7.4 cm and weighing around 3.4 kg.  This rugged mission computer combines Intel® 11th Gen i7 processing with optional NVIDIA RTX/T1000 GPU acceleration.  To handle intensive AI edge computing, sensor fusion, and real-time video processing.

Built to MIL-STD-810 and MIL-STD-461E. It is ideal for defence, aerospace, unmanned systems, naval, and industrial environments.  Where reliability and compute density are mission-critical.

The ACB300 Rugged Mission Computer sets a new standard for high-performance embedded computing.


Key Features

  • Powerful processing & graphics – Intel® 11th Gen i7 CPU with optional NVIDIA RTX or T1000 GPU delivers advanced graphics, parallel processing, and AI inference capability.

  • Compact rugged design – Approx. 21.8 cm × 17.3 cm × 7.4 cm, weighing about 3.4 kg, ideal for aircraft, naval vessels, ground vehicles, or mobile command centres.

  • Fanless, fully sealed enclosure – Convection-cooled aluminium chassis eliminates moving parts, reducing maintenance and ensuring protection from dust, sand, salt fog, and moisture.

  • Flexible I/O & expansion – Includes dual Gigabit Ethernet, four USB ports, RS-232, eight LVTTL GPIO, and dual DVI/HDMI video outputs up to 1920×1200p60, plus PCIe expansion for specialised cards such as frame grabbers or additional GPU modules.

  • Low-SWaP optimised – Typical power consumption ranges from 25 W to 75 W, allowing performance scaling based on system requirements.

  • Rugged MIL-STD compliance – Designed to MIL-STD-810 (shock 40 g, vibration 2.2 grms, –10 °C to +55 °C operation, –40 °C option) and MIL-STD-461E (EMI/EMC).

  • Altitude & humidity resilience – Reliable at 40,000 ft operating altitude with 45,000 ft rapid decompression capability and up to 95% non-condensing humidity.


Key Benefits

  • Exceptional compute density – To begin with, the ACB300 provides server-class processing and GPU power in a small rugged form factor.  Ideal for AI edge computing and real-time data analysis.

  • Flexible integration – Moreover, customisable I/O connectors, PCIe expansion, and multiple video outputs.  Simplify integration into existing or new defence, aerospace, or industrial architectures.

  • Long-term reliability – In addition, the fanless design and solid-state components reduce wear points.  Therefore, extend system life, lowering maintenance costs.

  • Mission-ready performance – Finally, its ability to operate under extreme temperatures, high altitude, and continuous vibration ensures. Dependable performance in mission-critical environments.


Applications

The ArgonFDS ACB300 Rugged Computer is perfect for mission-critical applications requiring high-performance computing and GPU acceleration, including:

  • Defence & AerospaceMission computers for fixed-wing and rotary aircraft, UAVs, and UGVs, supporting sensor fusion, C4ISR data processing, and AI-based situational awareness.

  • Naval & MaritimeShipboard computing, sonar and radar processing, and video analytics in salt-fog and vibration-heavy marine conditions.

  • Ground VehiclesTactical command, target recognition, and real-time surveillance processing in armoured or utility vehicles.

  • Industrial & Harsh EnvironmentsOil & gas, mining, and remote automation where rugged, GPU-powered computing is required.


Local Expertise and Support

As the Australian and New Zealand distributor for ArgonFDS, part of the Spectra Defense Technologies group, Metromatics offers more than just hardware supply.

In addition, we provide local engineering expertise, integration support, and responsive after-sales service.  Therefore, ensuring the ACB300 Rugged Computer is deployed with minimal risk and maximum confidence.


Get a Quote or Learn More

Therefore, if you need a mission-ready rugged computer capable of GPU-accelerated processing for defence, aerospace, or industrial applications, the ArgonFDS ACB300 delivers unmatched power and reliability.


To take the next step, contact Metromatics today to review specifications, discuss integration options, and request pricing.

Specifications

Overall Unit & Computer Specifications
Dimensions21.8 cm × 17.3 cm × 7.4 cm
Weight~3.4Kg
Power Input9 to 36VDC External Power (Optional hold up for momentary power interruption)
Power Consumption25W to 75W Typical, Depending on Usage Profile and Graphical Board
User ControlsNone selected
ChassisAluminium, Fully Enclosed
ConnectorsMil Circular
ProcessorIntel® Gen 11 i7-1185G7E, 4 Cores, 8 Threads
GraphicsNVIDIA T1000 with 8 GB dedicated RAM
RAM64 GB DDR4 Standard
Storage512GB Solid State Drive, Removable
OSWindows 10,11, Linux or Specify
I/O2x GbE, 4x USB 2.0, RS232, 8x LVTTL GPIO
Video Outputs2x independent DVI/HDMI up to 1920x1200p60
WirelessNot included (WiFi 802.11x with Antenna is available)
BatteryRemoveable CMOS battery
GPSNot included (Antenna or Sealed SMA Connector is available)
OtherVideo Frame Grabber or Other I/O Upon Request (Option)
Environmental
Operating Temp-10°C to +55°C (-40°C Option), +70°C Short Time
Storage Temp-40°C to +70°C
Shock40g, 11msec or Test to Application
Vibration2.2grms random or Test to Application
EMI/EMCDesigned to MIL-STD-461E, Test to Application
Electrical InputMIL-STD-704F
Altitude40k ft Operating/Non-Operating
Rapid Decompression45k ft
Salt Fog, Sand/DustUnit is 100% Enclosed, Resistant to Salt Fog, Fungus
HumidityOperating & Storage – 95%@25°C, Non-condensing
WaterproofnessRTCA-DO-160F Section 10 CatW

For detailed specifications, visit the ArgonFDS website where you can log in and download the official ACB300 datasheet.
