Rugged Tablet PC

Ruggon offers a 10.1” Rugged Tablet with PC advanced touch technology.  The applications for this System are limitless as it is a rugged and reliable solution, with a sunlight readable display, I/O Options and expansion options for in field plus hot swappable battery technology all at a competitive price.

Metromatics provides superior local sales, service and support for this product in Australia.

To learn more about this 10.1” Rugged Tablet PC; read on below.

The RuggON REXTORM PM-521 is 10.1” Rugged Tablet PC.  Firstly, it contains advanced touch technology.  This means it can avoid unintended and accidental touches and is paired with an IP54 Digitiser Pen or a 2mm Hard Tip Stylus – which ensures accurate touchscreen interaction.  The PX-501 contains Gorilla Glass and Glove Touch function.  Therefore, providing a rugged device for mobile field workers, that is toughened and more likely to resist external damage.  Secondly, it has a 1000 Nit Brightness Sunlight Readable Display that is optically bonded to enhance view ability.

Also equipped with a seamless communication network, it offers faster processing, broader coverage, more stable and efficient transmission.  Plus a great selection of I/O Ports and Data Capture capabilities and ability to install SecureWipe Technology to erase data from the SSD in a push of a button.  Finally, hot swappable battery design can be switched without turning off the device.  Therefore, a high capacity battery provides up to 12 hours of battery life.  However,  for extreme power savings – switch to the “ECO” mode and extend battery life further.

Other features of this Rugged Tablet PC include:

  • High Brightness Capacitive Touch Display that supports glove touch, water rejection, palm rejection 2mm hard tip stylus, digitizer by request
  • Uses powerful Intel® Atom™ Processor E3827 1.75GHz
  • GNSS, Wi-Fi, Bluetooth and optional 4G LTE
  • Hot Swap Battery plus fast charging
  • IP65, MIL-STD-810G, 1.5 Metre Drop Resistances



Finally, for more information, contact us.

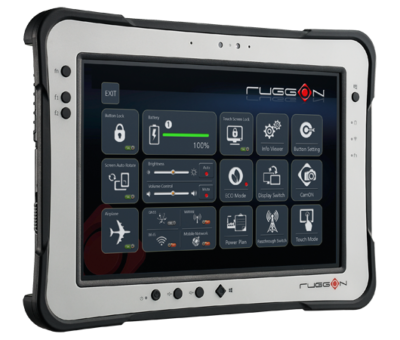

Side View of Rugged Tablet PC

Specifications

SystemIntel® Atom™ processor E3827 1.75GHz
4GB DDR3L
128GB mSATA SSD, expandable to 256GB

Operating System Option: Windows 10
Display10.1" TFT LCD WUXGA (1920 x 1200), 1000 nits sunlight readable
10-point capacitive touch supports glove touch, water rejection, palm rejection, 2mm hard tip stylus
Gorilla Glass, digitiser by request
ExpansionBuilt-in 2D barcode reader
NFC + Smart Card re ader (CAC) 2-in-1 module
Fingerprint reader, UHF RFID reader, 3D camera by request Snap-on connector easy for customization
I/O InterfaceUSB 3.0 type A x 1, USB 2.0 type A x 1, RS-232 x 1
Micro SD slot x 1, Micro SIM slot x 1, Micro HDMI x 1
Headphone / microphone combo x1
Dual RF pass-through connector for WLAN, GNSS, WWAN
Docking connector x 1
DC-in
PowerAC adapter (65W, 100-240V AC, 50/60Hz)
4500mAh hot swappable battery, 6 hours battery life
Optional 9000mAh hot swappable battery, up to 12 hours battery life

* The listed battery life is based on MobileMark 2012® media mode testing.
DurabilityIP65, MIL-STD-810G; vibration, shock and 5' drop resistance
Operating temperature : -20° C to +50° C
CommunicationsGigabit Ethernet (RJ45 )
802.11 a/b/g/n/ac, Bluetooth V4.0 + EDR, optional 4G LTE
GNSS (GPS/ GLONASS/ BeiDou)
Optional built-in NFC
Camera2MP front camera
5MP auto focus rear camera with LED flash
SecurityPhoenix SecureWipe by request
TPM 1.2

Peripherals

Fingerprint readerRuggON -Rugged-Tablet-UHF-RFID-Reader

RuggON _ Rugged Tablet _ 3D Camera

Fingerprint Reader

Model RSK-FP02

UHF RFID Reader

Model RSK-UHF01

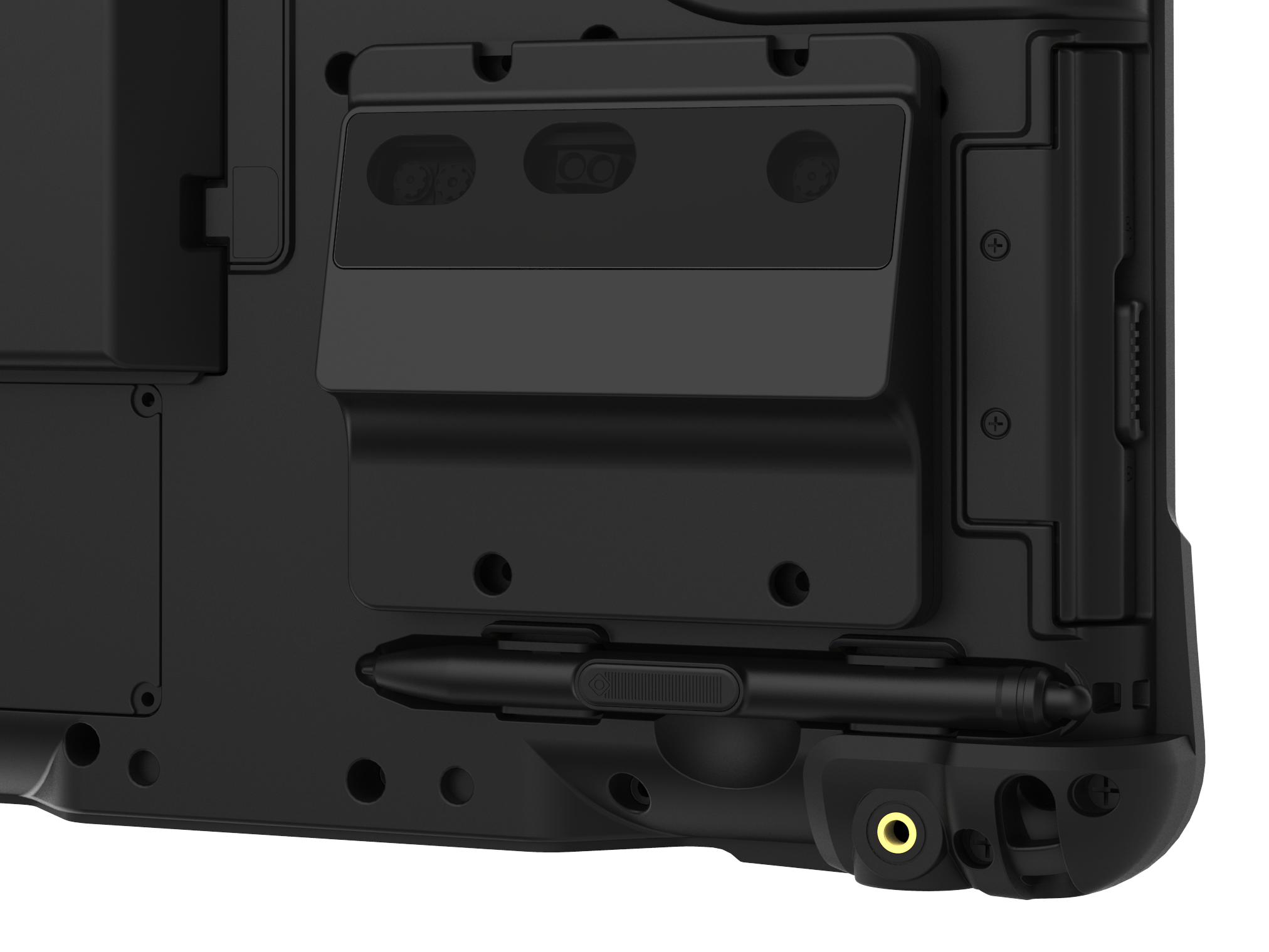

3D Depth Camera

Model RSK-CAM01

RuggON _ Rugged Tablet _ smart card reader _ NFCNFC,smart card reader

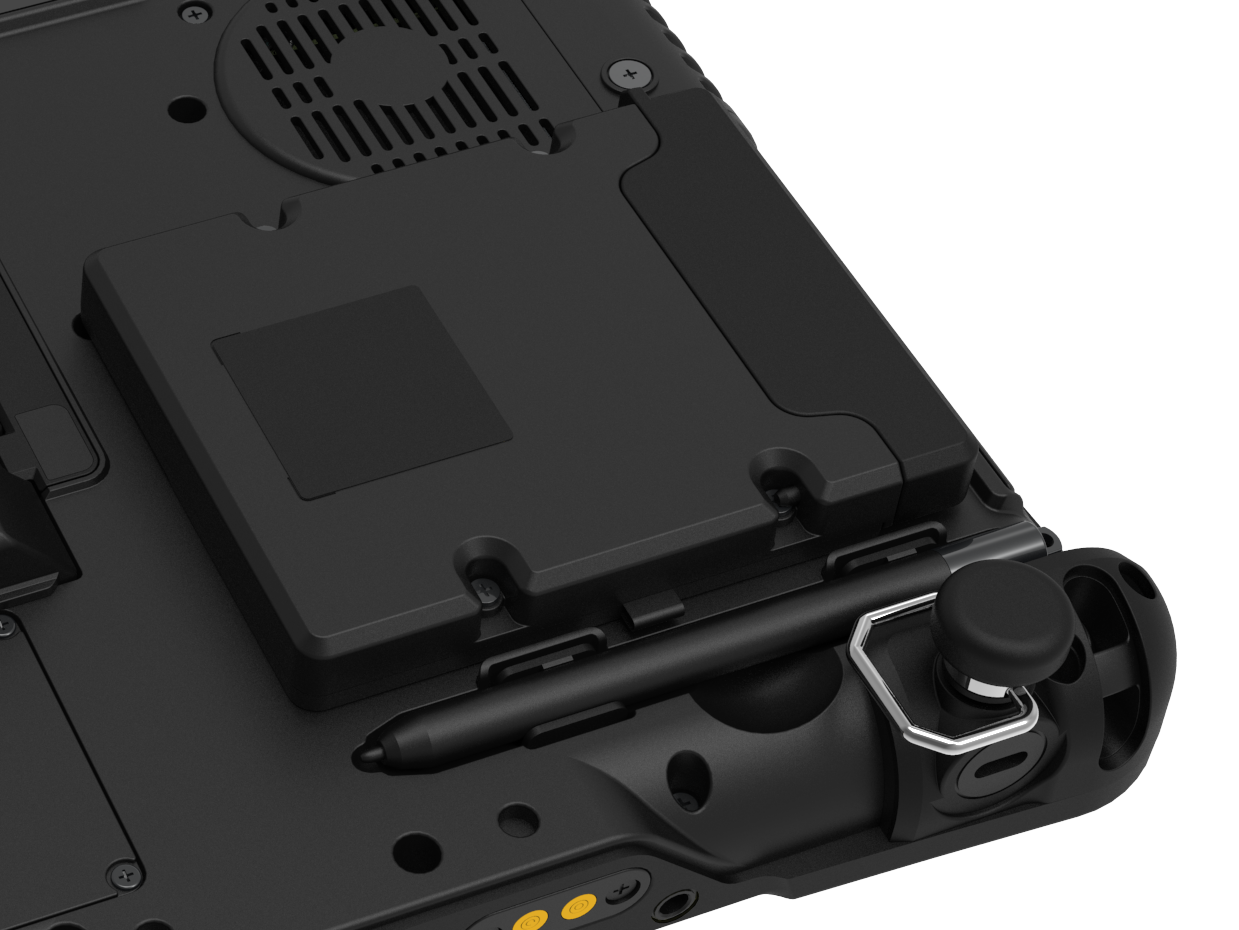

Smart Card Reader + NFC

Model RSK-SN01

NFC + Smart Card Reader

Model SN203-SN01

Accessories

RuggON-Rugged-Tablet-Detachable-keyboardvehicle dock for 10.1 vehicle charge dock alt model

Detachable Keyboard

Model RDK-501

Vehicle Dock

Model VD04

Vehicle Dock

Model VD10

vesa bracketdesk top dock for rugged tabletshoulder strap for rugged tablet

VESA Bracket

Model VB04

Desktop Dock

Model DT04

Shoulder Strap

RuggON _ Rugged tablet_Hand StrapRuggON-Rugged-Tableyt-Hard-HandleRuggON _ Rugged tablet_Handle

Hand Strap

Hard Handle

Model RSK-HS01

Handle

9000mah Battery4500 mah Battery4 bay battery charger

9000mAh Battery

Model EB03

4500mAh Battery

Model SB01

4 Bay Battery Charger

Model RSK-BC400

dual bay battery chargercar charger

Dual Bay Battery Charger

EB200

Car Adaptor

VC01
