S-Beam Load Cells LSB352

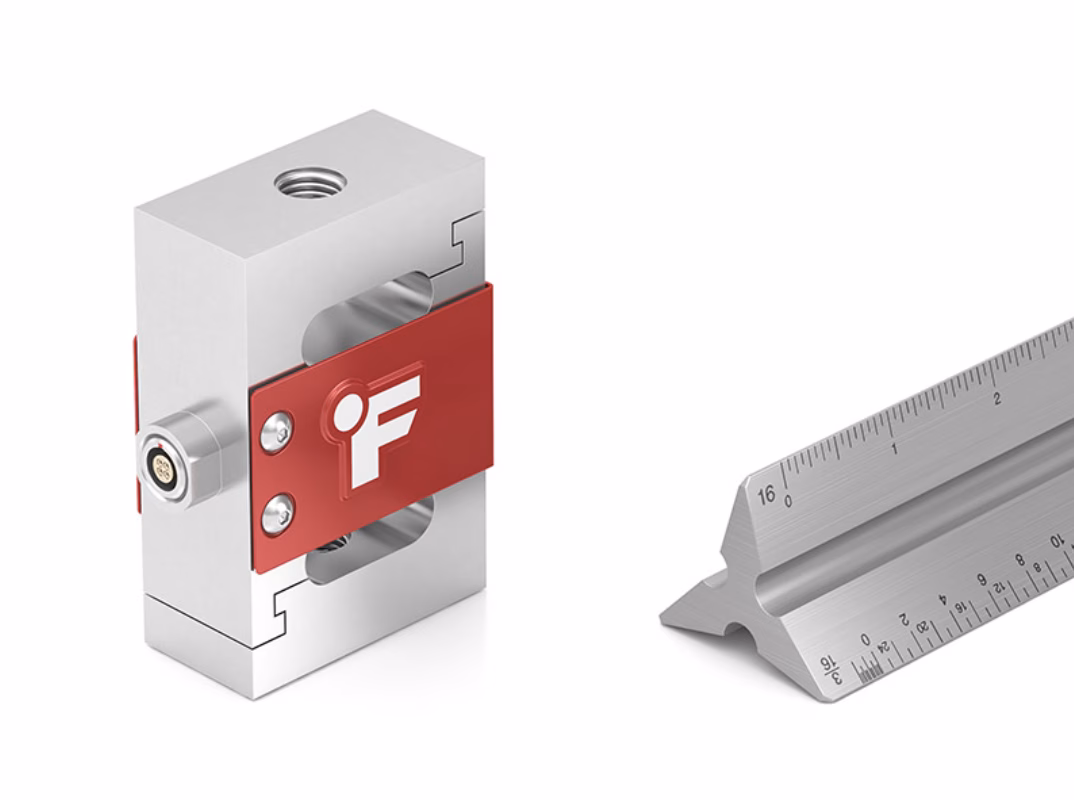

The FUTEK LSB352 is a high-capacity, rugged S-Beam load cell designed for precision tension and compression measurements. Crafted from 17-4 PH stainless steel, and with both female threads, this sensor is ideal for platforms, scales, silo weighing, and industrial applications where accuracy, durability, and robust performance are essential.

Key Features & Benefits of the S-Beam Load Cells LSB 352

  • High Capacity in Tension & Compression – Available in 500 lb and 1,000 lb capacities to handle heavy loads while maintaining accuracy.

  • High Precision & Low Error – Nonlinearity and hysteresis are both ± 0.05% of rated output (RO); non-repeatability is ± 0.01%.

  • 3 mV/V Output & 350 Ω Bridge – Strong signal, compatible with most instrumentation setups.

  • Robust Construction & Material – 17-4 PH stainless steel body with female ½-20-2B threads on both ends.

  • Wide Temperature Range – Operating from approx –40°F (-40°C) to +200°F (~93°C), with compensated temperature ranges of ~60-160°F (≈15-72°C).

  • Good Overload Protection – Safe overload is approximately 500% of RO, protecting the sensor from accidental force spikes.

  • Solid Signal Conditioning Options – Includes 5 ft 28 AWG 6-conductor shielded polyurethane cable; some variants with connector version (4-pin LEMO) for easier connection / modular setup.


Technical Specifications of the S-Beam Load Cells LSB 352

SpecificationDetail
Capacity Options500 lb (≈2,224 N), 1,000 lb (≈4,448 N)
Rated Output~3 mV/V nominal
Bridge Resistance350 Ω nominal
Nonlinearity / Hysteresis±0.05% RO
Nonrepeatability±0.01% RO
Safe OverloadApprox. 500% RO
Materials17-4 PH Stainless Steel body; stainless flexure; ½-20-2B threads both ends
Cable / Connector5 ft, 28 AWG, 6 conductor shielded polyurethane cable; cable and connector variants available (LEMO, etc.)
WeightApproximately 1.28 lb (≈580 g)
Deflection (Nominal)~0.006 in for 500 lb model; ~0.010 in for 1,000 lb model
Operating Temperature~-40°F to +200°F (-40°C to +93°C)
Compensated Temperature~60-160°F (≈15-72°C)

Typical Applications for the S-Beam Load Cells LSB 352

The LSB352 is well suited for customers needing robust force measurement at higher load ranges, for example:

  • Platform scales, bin and silo weighing

  • Industrial automation and load monitoring

  • OEM machinery subject to heavy loading

  • Material testing or test benches where large loads are encountered

  • Structural monitoring, safety systems where overload protection is needed


Why Choose the S-Beam Load Cells LSB 352

  • High Accuracy Under Load – Maintains tight tolerances even under high loads.

  • Durability & Long-Term Reliability – Stainless steel body, good overload margin, US-made strain gauge tech.

  • Flexible Connectivity – Cable or connector versions available; cable variations to suit installation.

  • Industry-Grade Temperature & Environment Range – Works in harsh temperatures, wider operating environments.

  • Fast Availability & Support – Many capacities in stock; calibration and integration support available.


S-Beam Load Cells LSB 352 Options

ItemLoad CapacityThread SizeHeight in cmLength in cmWidth in cmConnection Type

Connector Type

FSH01843

2224.11 N½-207.62 cm5.08 cm2.54 cmConnector4 Pin Lemo Receptacle
FSH021002224.11 N½-207.62 cm5.08 cm2.54 cmCable

FSH02510

4448.22 N½-207.62 cm5.08 cm2.54 cmConnector4 Pin Lemo Receptacle
FSH032782224.11 N½-207.62 cm5.08 cm2.54 cmConnector

4 Pin Lemo Receptacle

FSH03279

4448.22 N½-207.62 cm5.08 cm2.54 cmConnector4 Pin Lemo Receptacle
QSH009922224.11 N½-207.62 cm5.08 cm2.54 cmCable

QSH00993

4448.22 N½-207.62 cm5.08 cm2.54 cmCable

Ordering & Configuration Options

If you would like to learn more about this product or place an order, please contact us.

When purchasing an LSB352, consider these to ensure you get the right variant:

  1. Choose the required capacity (500 lb or 1,000 lb) ensuring expected load plus overhead.

  2. Decide on connector type vs cable version (e.g. 5 ft cable vs 4-pin LEMO) based on mounting / access.

  3. Confirm thread type (½-20-2B threads are standard) fits your mounting hardware.

  4. Consider environment (temperature, moisture, shock) to ensure you select correct variant or protective measures.

  5. Check whether you need calibration certification (5-point tension standard; compression available) or optional TEDS version.
