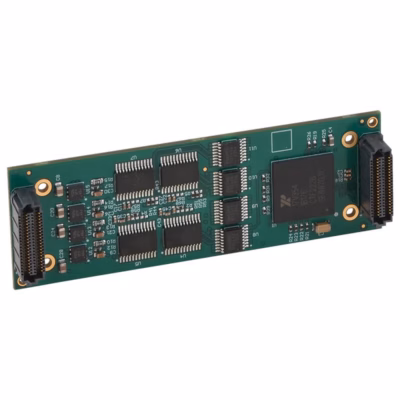

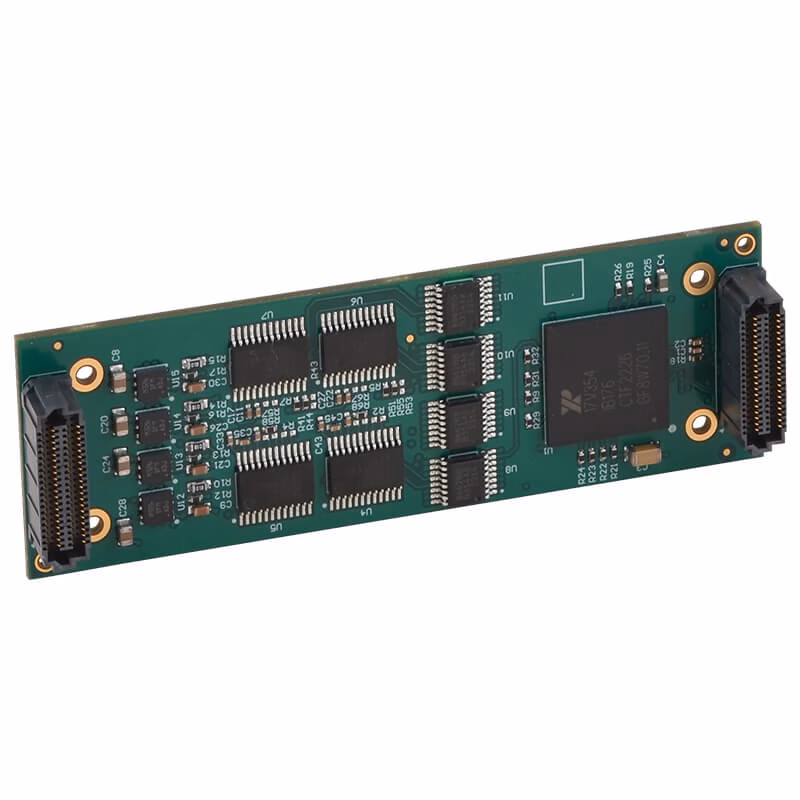

VITA 93 Isolated Serial Communication Module QMC520

The Acromag QMC520 is a compact, high-performance VITA 93 Isolated Serial Communication Module designed for secure and reliable serial data transfer.

Featuring four independently programmable and electrically isolated ports, it supports RS-232, RS-422, and RS-485 communication.

Ideal for mission-critical applications in defence, aerospace, and industrial environments.

The Acromag QMC520 is a rugged, compact VITA 93 Isolated Serial Communication Module.  Designed to provide four isolated, programmable serial ports for reliable and secure communication across diverse embedded systems. Supporting RS-232, RS-422, and RS-485 protocols, each port is fully isolated.  In addition, it is independently configurable to ensure safe, interference-free operation in demanding environments.

Ideal for defence, aerospace, industrial, and lab-based applications.  Firstly, the QMC520 offers seamless integration via a PCIe bus interface, connecting through a QMC-compatible carrier card. Each serial port is equipped with 256-byte FIFO buffers on both transmit and receive lines.  Which optimises throughput and reduces CPU load.  Therefore, enabling efficient, high-speed data transfer up to 20Mbps.

The QMC520 has a 16550-compatible register set. It also has programmable interrupt generation for transmit, receive, line status, and flow control. This allows for advanced control of serial communication. A built-in 16-bit timer/counter uses a 125MHz internal clock. It supports single-shot and periodic signal modes. This is great for time-sensitive tasks and event tracking.

Built to the VITA 93 small form factor (SFF) standard.  Secondly, the QMC520 measures just 26 x 78.25mm.  Therefore, making it perfect for high-density I/O configurations where SWaP-C constraints are a concern. The design includes support for conduction cooling and operates across extended temperature ranges. An onboard EEPROM supports Intelligent Platform Management Interface (IPMI) for efficient module management through I²C.


Key Features VITA 93 Isolated Serial Communication Module:

  • 4 asynchronous serial communication ports

  • 250V port-to-digital and 100V port-to-port isolation

  • Software-configurable for RS-232, RS-422, or RS-485

  • Full/half-duplex support for EIA-485

  • 256-byte FIFO transmit and receive buffers per port

  • Baud rates up to 20Mbps

  • 16550-compatible register set

  • Individually controlled transmit, receive, line status, and flow control interrupts

  • 16-bit general-purpose timer/counter with 125MHz internal clock

  • IPMI support via onboard EEPROM

  • VITA 93-compliant compact size (26 x 78.25mm)

  • Conduction-cooled with extended temperature range


Applications:

  • Secure industrial serial communication

  • Defence and aerospace equipment connection

  • Sensor networks and serial protocol conversion

  • Time-critical control and monitoring systems

  • Lab and test automation

Finally, for more information, contact us.
