VITA 93 PCIe Carrier Card QPCe7210

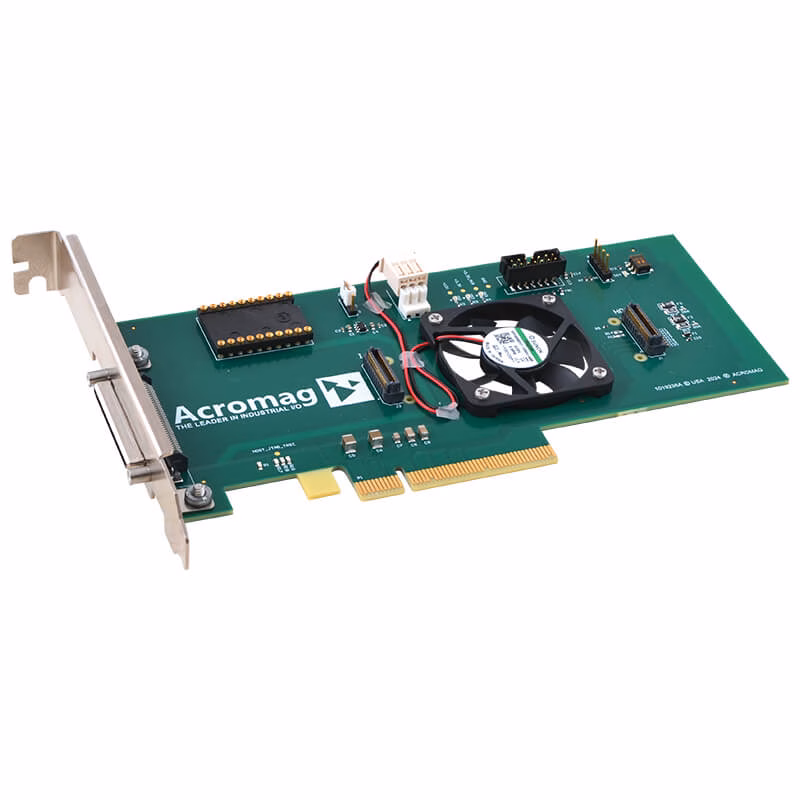

The Acromag QPCe7210 is a small and strong VITA 93 PCIe Carrier Card. It is made to hold one QMC mezzanine module for fast signal processing and I/O expansion. Featuring a PCIe Gen 3 x4 interface, electrical isolation support, and onboard cooling.

Ideal for demanding applications in defence, aerospace, industrial, and laboratory systems where reliability and space efficiency are critical.

The Acromag QPCe7210 is a PCIe Carrier Card that follows VITA 93. It is a half-length PCIe expansion card. This card is made to hold one QMC mezzanine module in a small and strong system. This carrier card offers easy PCI Express Gen 3 x4 connectivity. It provides both electrical and mechanical connections for VITA 93-compliant QMC modules. This allows for high-performance signal processing and I/O operations in embedded computing environments.

Ideal for lab, industrial, defence, and aerospace applications.  In addition it features isolation support.  Therefore, ensuring electrical separation between the host interface and I/O signals when used with an isolated QMC module. Two high-density 80-pin connectors deliver dedicated interfaces for field I/O and PCIe communication.

To support a broad range of applications, the carrier includes a JTAG programming header for QMC modules.  The device has FPGAs, separate power rails (+3.3V, +12V, Aux), and a cooling fan for good heat control. Its small design lets it fit into compact systems. It also keeps the strong reliability expected from VITA 93 architectures.


Key Features VITA 93 PCIe Carrier Card:

  • Half-length PCIe expansion card for compact system integration

  • Supports one VITA 93-compliant QMC module (26 x 78.25mm)

  • PCI Express Gen 3 x4 bus interface

  • Electrical isolation between QMC I/O and host interfaces

  • Onboard cooling fan for direct QMC module cooling

  • Individually fused +3.3V, +3.3V Aux, and +12V power rails

  • JTAG programming/debug header for FPGA-based modules

  • Rugged design for industrial and defence environments


Applications:

  • Sensor interfacing and signal processing

  • Real-time control and data acquisition

  • Lab test and simulation systems

  • AI/ML, image processing, and adaptive filtering

  • Embedded communications and protocol conversion



For more information, contact us.
