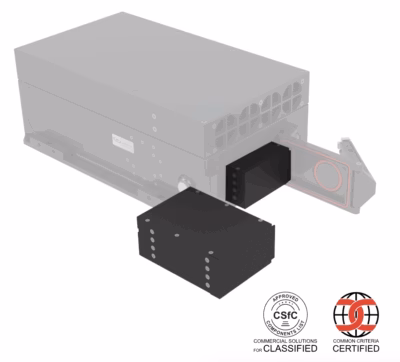

XSR Removable Data Module (RDM)

The Galleon Portable Planning and Debriefing System (PDS) is a rugged, all-in-one solution for field-based mission planning, debriefing, data loading, and secure archiving. Designed to interface directly with Galleon’s XSR Removable Data Modules (RDMs), the PDS enables high-speed read/write operations at over 800MB/s, making it ideal for use in pre- and post-mission workflows. Housed in a portable form factor with integrated screen, keyboard, and carrying case, the PDS is engineered for operational flexibility across defence, aerospace, and research environments.

Rugged, High-Capacity Storage – Tool-Free – Up to 80TB

The XSR Removable Data Module (RDM) delivers a rugged, field proven storage solution for Galleon’s full range of XSR data recorders, NAS units, and servers. Engineered for high capacity performance, this flexible storage system allows up to 80TB of solid-state storage, and is tool free for fast field swaps during mission critical operations.

The XSR-RDM accommodates four industry-standard 2.5” SSDs, supporting a wide range of NAND technologies including SLC, MLC, and TLC. This allows users to optimise the module for development, lab use, or operational deployment—selecting cost-effective commercial-grade SSDs for testing or ruggedised, military-grade drives for demanding environments.

Field-tested and rated for up to 100,000 insertion/removal cycles, the XSR-RDM enables fast data transfer, mission reloading, and seamless integration with XSR platforms. For enhanced data security, the RDM supports optional AES-256 hardware encryption and secure/quick erase on qualified media. This module is listed on the NSA CSfC Approved Components List and supports NIAP-approved full disk encryption, meeting high-assurance cybersecurity requirements.

Supported locally by Metromatics across Australia, the XSR-RDM ensures high availability and trusted performance for defence, aerospace, and high speed data capture applications.

Key Features

  •  Up to 80TB total solid state capacity
  • Supports up to 4x 2.5” SSDs
  • Works with SLC, MLC, TLC NAND
  • No tools required – hot swappable
  • Rated for 100,000 insertion cycles
  • Optimised for lab and mission critical use
  • Optional AES-256 hardware encryption
  • Supports secure and quick erase functions
  •  NIAP and NSA CSfC encryption compliant
  • Works with all XSR recorders, NAS, and servers

Ideal Applications

  • Airborne and naval ISR platforms
  • Tactical and deployed data recorders
  •  Ground station servers and NAS
  • Lab-based testing and pre-deployment simulation
  • Secure mission planning and debriefing environments

Technical Overview

AttributeSpecification
Storage CapacityUp to 80TB (4x 20TB SSDs)
Form Factor2.5” SSD (x4)
SSD SupportSLC, MLC, TLC (user specified)
Tool-Free AccessYes – rapid field swap
Encryption SupportAES-256 optional (SWFDE/HWFDE)
Secure EraseSupported on qualified media
RDM Lifecycle100,000 insertion/removal cycles
ComplianceNSA CSfC / NIAP Encryption Listed

Why Choose the XSR-RDM?

  • Compatible with all XSR-based systems
  • Built for harsh environments and high throughput
  • Configurable to fit both mission and test profiles
  •  Seamless data transfer and high speed offload
  • Backed by Galleon’s AS/EN 9100 & ISO 9001 certified quality

Why Choose Metromatics?

As Galleon’s authorised distributor in Australia, Metromatics offers:

  • Expert local support and technical consultation
  • Onshore servicing and integration advice
  • Experience with defence, aerospace, and surveillance platforms

Contact us today to learn more about this product.

Galleon Embedded Computers, part of the Spectra Defence Technology family alongside Calculex and Argon FDS, delivers rugged data acquisition, storage, computing, and display solutions for military platforms. Metromatics is the authorised Australian distributor, providing local sales, service, and support to ensure mission success.

XSR Removable Data Module (RDM) – Ultra Rugged – Galleon Embedded Computing

This link will take you to the Galleon Embedded Computing website from which you can sign in and download the spec sheet.
