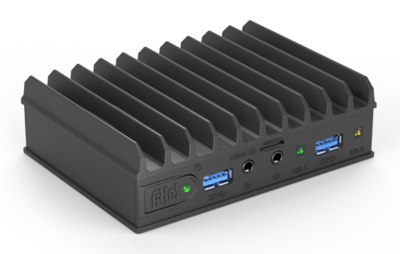

12V Industrial Miniature PC – Fitlet2

fitlet2 is a 12V miniature fanless industrial PC. It is based on dual or quad core Intel CPU’s with up to 16GB RAM. With a Rich functionality, connectivity and silent operation – The fitlet2’s high performance and low power consumption make it stand out where performance, robustness and reliability matter.

It has a tiny footprint of 112mm x 84mm x 34mm and weighs only 350 grams!

12V Industrial Miniature PC: Fitlet2

Compact Design with Robust Performance

The 12V Industrial Miniature PC: Fitlet2, a versatile computing solution designed to tackle the demands of industrial environments. Its small size offers a great mix of power and efficiency. This makes it suitable for many uses, from automation and control to digital signage.

12V Industrial Miniature PC

Reliable Operation in Challenging Environments

The Fitlet2 is engineered to operate smoothly in a variety of challenging industrial conditions. With its fan-less design and ruggedised casing.  Therefore, it offers silent, uninterrupted performance while ensuring protection against dust, debris, and temperature fluctuations.

CPU Options

The Fitlet2 offers a variety of processor configurations, including Intel Atom and Celeron processors, allowing for customisation based on performance needs and budget.

RAM and Storage

The system supports DDR3L RAM up to 8GB.  With storage options ranging from mSATA SSDs to eMMC storage.  Therefore, allowing for flexibility in performance and capacity.

Connectivity and Expansion

Equipped with a variety of connectivity options, the Fitlet2 provides seamless integration into various systems. It includes multiple USB ports, Ethernet interfaces, and HDMI outputs.  Therefore, ensuring it can handle numerous peripherals and network configurations. The system’s modular design allows for easy customisation and expansion, adapting to the unique needs of each application. It also includes a Function and Connectivity Extension (FACET) card system.  This enables additional modules such as extra USB ports, LAN ports, and Wi-Fi/Bluetooth capabilities.

12V Industrial PC with difference faces
Fitlet 2 with different FACET cards: 8 x USB Ports; 4 x GbE ports

Operating System Compatibility

The Fitlet2 is compatible with a variety of operating systems, including Windows and Linux distributions, making it adaptable to different software environments.

Efficient Power Solution

The 12V Industrial Miniature PC is designed to run efficiently, minimising power consumption.  Whilst, continuing to deliver robust performance. This makes it an ideal solution for long-term deployments.  Especially in industrial settings where consistent, low-power computing is crucial.

Applications

From factory automation to transportation systems, the 12V Industrial Miniature PC: Fitlet2 is a reliable and adaptable computing solution. Its compact design, combined with its ability to endure demanding environments.  Makes it a go-to choice for numerous industrial applications.

Ideal for applications such as: Multimedia PC running Microsoft Windows or Linux; Industrial PC; IoT; Digital Signage; Surveillance; Telecommunications; Outdoor Deployment.

Specifications of fitlet2

CPU

Intel Atom x7-E3950   I   Intel Atom x5-E3930     Intel Celeron J3455

RAM

Up to 16 GB: 1xS0-DIMM 204-pin DDR3L, Non ECC DDR3L-1866 (1.35V)

Storage

M.2 M-Key 2260 / 2242 (SATA 3 6 Gbps) or 2.5″ HDD/SSD
Micro SD socket is also available. External USB storage is supported. Both are bootable.

An eMMC on an M.2 module is also available as a low-cost storage solution for price-sensitive applications. The storage module uses a specially designed M.2 cooling plate.  That dissipates heat through the housing, ensuring reliable performance in industrial environments.

*M.2 2280 available optionally on some FACET Cards
*2.5″ drive requires special HDD compartment

Display

Dual head   I   mini DP 1.2 4K@60Hz   I   HDMI 1.4 4K@30Hz

Networking

LAN: Up to 4 x GBit Ethernet Intel i211 with 2GbE ports on board + 2 additional ports on optional FC-LAN Facet card

Optional Wireless LAN: 802.11ac dual antenna + BT 4.2 add on M.2 E-Key 2230 + 2xRP-SMA antennas. Plus user can install another Wireless LAN Adaptor.

Mobile Communication LTE/WCDMA/GSM/GNSS: available using optional FACET card with either M.2 B Key or miniPCIe socket.  FACET has micro SIM socket.

I/O

USB: Up to 8 ports, 2 x USB 3.0, Up to 6 x USB 2.0 configured by 4 USB ports on board.  Plus 4 additional ports on optional FC-4USB FACET Card.

Audio Features:

  • Stereo line out
  • Stereo line in/mic
  • 7.1 S/PDIF out*
  • HDMI
  • DP audio

This system uses the Realtek ALC1150 audio codec.

* requires a 3.5mm to RCA cable (sold separately)

RS232 Serial Port*: *Requires a mini-serial to DB-9 adaptor cable (sold separately)

Extensions

Function and Connectivity Extension T-Card (FACET Card Interface.  Available FACET Cards include:

  • Dual Gbit Ethernet
  • 4 x USB 2.0
  • miniPCIe + micro SIM + M.2 E-Key + M.2 M-Key 2280
  • M.2 B-Key + micro SIM + M.2 E-Key + M.2.M-Key 2280

FACET Card interface includes 2 x PCIe, USB, eDP 1.3 and I2C.

BIOS & OS

BIOS AMI Aptio V: Compatible with other Windows 10 (except Windows 10 Pro) and Linux Variants.

Operating Systems: Windows 10 IoT Enterprise LTSB and Linux Mint.  Compatible with other hypervisors and operating systems (Eg. ESXi, FreeBSD)

Operating Conditions

Power

Input Voltage Range:

Fitlet2 supports a wide input voltage range of 9V – 36V, making it suitable for various industrial and embedded applications.

It can also be powered by:

  • A PoE FACET card

  • A custom FACET card designed for alternative power delivery

The DC power plug includes a special twist-lock connector to prevent accidental power loss due to unintentional disconnection.

We also offer auxiliary power solutions for the Fitlet2, including:

  • The fit-Uptime miniature UPS for uninterrupted power

  • A Y-shaped pig-tail cable with twist-lock DC plug for flexible installation

Note: 9V–36V support applies when ordered in the industrial temperature configuration. Commercial and extended temperature variants are available. The standard power supply shipped with Fitlet2 is not rated for extended temperature ranges. Please ensure a suitable power supply is used when deploying in such environments.

Power Consumption: 5W – 15W

Firstly, Power consumption depends on CPU type, system load, installed devices and connected peripherals.  Please note when ordered with extended input voltage range. Normal input voltage range is DC 7V-20V.

Temperature & Humidity

Operating Temperature Range:

Up to -40°C to 85°Cwhen ordered in the industrial temperature configuration. Commercial and extended temperature options are also available.

Fitlet2 is the first small PC made by Compulab. It can work in a wide temperature range from -40°C to 85°C. Unlike systems with fans, Fitlet2 is fanless. It has an embedded CPU rated for 125°C. This design ensures reliable performance, even in extreme conditions.

Note: The standard power supply shipped with Fitlet2 is not rated for extended temperature operation. Deployments in extended or industrial temperature applications should use a suitable rated power supply.

Relative humidity: 5% to 95% non condensing

Shock and Vibration

MIL STD 810G Compliant:  Vibration test was IECC TR 60721-4-7: 2001+A1:03, Class 7M1, test method IEC 60068-2-64 (up to 2 KHz, 3 axis).  Shock test was IEC TR 60721-4-7:2001+A1:03, Class 7M1, test method IEC 60068-2-27 (15g, 6 directions).3

Mechanical Specifications

Housing

All metal housing. Die Cast Aluminium

Cooling

Convection Fanless Cooling through housing. No Vents.

Dimensions

112mm x 84mm x 25mm (low power model) or 34mm (high performance model)

Weight

350 grams

Mounting

VESA Wall Mount Bracket

DIN-rail Mounting Brackets

both sold separately.

Additional Features & Services

Functional features

  • Auto-on
  • Programmable LED indicators
  • Removable RTC battery
  • Auxiliary power header
  • RTC reset tactile switch
  • Trusted Platform Module (TPM)
  • Remote power Button



Choose your Memory, Storage and Operating System and install yourself or we can install your requirements for you.  In addition, this product is provided with a one year warranty and local service and support from Metromatics.  Starting from AUD$370 build up your 12V Industrial Miniature PC to your requirements with Metromatics.

Want to do a comparison between the Fitlet2 and the Fitlet3?  click here.  Or do you want to view their latest Miniature Industrial PC’s? click here.

For more information on the Fitlet2 12V Industrial Miniature PC, contact us.
