Fanless Digital Signage Player

Shuttle SPCEL12/13 is an ultra-compact, fanless digital signage player—designed to run bright triple-screen 4K displays all day.

With Intel® Elkhart Lake performance, this device has dual 2.5 GbE LAN. It also offers flexible M.2 expansion for Wi-Fi, 4G/LTE, or AI modules. This makes it a reliable choice for edge computing in retail, transport, smart cities, and industrial settings.

Discover how this rugged powerhouse can elevate your digital signage and IoT projects.

The Shuttle SPCEL12/13 is a next-generation digital signage player. Designed for 24/7 reliability and powerful edge computing in a compact 0.45 L chassis. This device has Intel® Elkhart Lake processors. It supports three 4K display outputs and two 2.5 GbE LAN ports. This setup provides smooth multi-screen content. It is ideal for retail, hospitality, transport hubs, smart cities, and industrial automation. Its fanless PICO-ITX design ensures quiet, dust-resistant operation even in challenging environments.

SPCEL12/13 – suitable for digital signage applications, featuring 3 video outputs, and SD card & SIM card slots.

  • SPCEL12: Purple, commercial grade, operating temperature 0~40°C
  • SPCEL13: Iron grey, industrial grade, operating temperature -20~60°C

Key Features

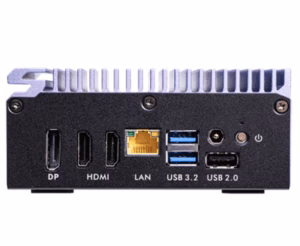

Other side view of SPECL 12 13

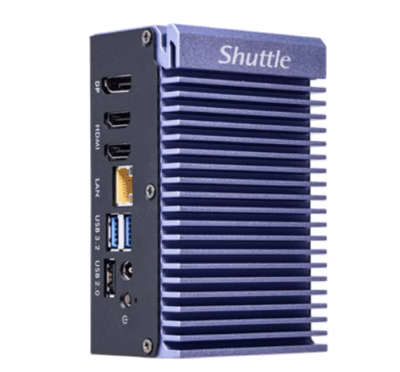

Side view of SPCEL 12-13

  • Optimised for Digital Signage – Drive up to three 4K displays simultaneously.  Achieved by HDMI 2.0b and DisplayPort 1.4, perfect for video walls, menu boards, and advertising kiosks.
  • Ultra-Compact & Fanless – A robust 120 × 51 × 75 mm aluminium chassis fits behind screens.  Or in tight enclosures, ensuring silent, low-maintenance operation.
  • Powerful Performance – Choose between Intel® Celeron® J6412 or Atom® x6413E processors.  With up to 32 GB DDR4-3200 memory for smooth playback and fast content updates.
  • Flexible Connectivity – It has dual 2.5 GbE LAN with Wake-on-LAN. There are multiple USB ports and M.2 slots for SSDs, Wi-Fi, 4G/LTE, or AI accelerators (Hailo-8).
  • Wide Temperature Range – SPCEL13 model operates from –20 °C to +60 °C, ideal for outdoor kiosks or transport environments.
  • Multiple Mounting Options – VESA, ear mount, and DIN rail support for effortless installation.

Applications & Industries

The Shuttle SPCEL12/13 digital signage player is built for a wide range of professional installations:

  • Retail & Quick Service Restaurants: Dynamic menu boards, in-store advertising, and interactive kiosks.
  • Transportation & Smart City: Bus or train station passenger information systems, outdoor wayfinding, and traffic displays.
  • Hospitality & Corporate: Hotel lobby signage, conference room schedulers, and immersive meeting room displays.
  • Industrial & Manufacturing: Production dashboards, machine status displays, and SCADA edge computing.
  • Healthcare & Education: Telehealth kiosks, hospital wayfinding, and campus digital signage.

Whether you need to power an indoor video wall or a rugged outdoor display, the SPCEL12/13 delivers reliable performance and sharp visuals.

Technical Specifications

SpecificationDetail
ProcessorSPCEL12: Intel® Celeron® J6412; SPCEL13: Intel® Atom® x6413E
MemoryUp to 32 GB DDR4-3200
StorageM.2 2280 (PCIe/SATA) and 2242 slots
GraphicsIntel® UHD Graphics with triple-display support
Display Outputs1× HDMI 2.0b, 2× DisplayPort 1.4
Networking2× 2.5 GbE LAN, Wake-on-LAN
ExpansionM.2 2230/3042/2280 for Wi-Fi, 4G/LTE, or AI module
Operating TemperatureSPCEL12: 0 °C to +40 °C; SPCEL13: –20 °C to +60 °C
Dimensions120 × 51 × 75 mm
MountingVESA, ear mount, DIN rail
OS SupportWindows 11 64-bit, Linux 64-bit



See product brochure for full specification breakdown

Shuttle SPCEL all models shot
SPCEL02 is blue, SPCEL12 is purple and SPCEL03/13 are iron grey.

Why Choose Shuttle from Metromatics

Metromatics provides local Australian sales, service, and support for Shuttle products. Our team ensures compliance with Australian electrical standards, offers fast installation assistance, and provides long-term maintenance for demanding commercial and industrial signage deployments.

Bring your digital signage projects to life.  With the Shuttle SPCEL12/13 digital signage player—the compact, fanless solution for stunning multi-screen displays by contacting Metromatics.
