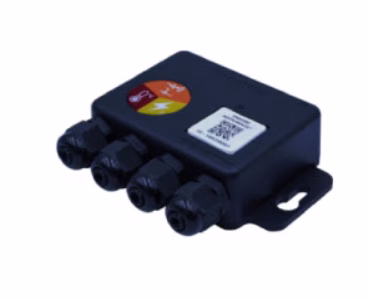

Simplify condition monitoring with the Phantom All-in-One Wireless Vibration, Current & Temperature Sensor from Erbessd Instruments. This advanced multiparameter device combines triaxial vibration, electrical current, and temperature measurement in a single, compact unit. Therefore, delivering a complete view of machine health without the need for multiple sensors.
Available in two versions, the EPH-U13 (High Sensitivity) and EPH-U14 (High Range). The sensor captures detailed FFT and waveform data. In addition, it monitors power draw across up to three electrical phases, and tracks both internal and external temperatures. Designed for industrial reliability, it forms part of the Phantom Wireless Condition Monitoring Ecosystem, offering effortless setup, long battery life, and secure Bluetooth connectivity.
Key Features & Benefits
All-in-One Measurement – Monitor vibration, current, and temperature with one wireless device.
Triaxial Vibration Sensing – Capture high-resolution vibration data across X, Y, and Z axes for early fault detection.
Current Monitoring – Measure single or three-phase current (50 A–500 A) via split-core clamps.
Dual Temperature Inputs – Internal temperature plus two thermocouple (Type K) channels for precise thermal tracking.
Two Models Available –
EPH-U13: High Sensitivity (for low-amplitude, precision monitoring)
EPH-U14: High Range (for heavy machinery and higher vibration levels)
High-Resolution FFTs – Up to 6,400 lines with sample rates up to 25,600 Hz for detailed analysis.
Wireless Bluetooth BLE 5.0 – Secure, encrypted data transmission to the Phantom Gateway.
Rugged Industrial Design – IP67 housing withstands harsh environments.
Battery Powered – Operates on two AAA batteries, providing up to 12,000 measurements.
Fast Setup – Configure quickly via Phantom Manager mobile app.
Applications
The All-in-One Phantom Sensor is ideal for:
Motors, pumps, and compressors – Monitor mechanical vibration, temperature rise, and current draw simultaneously.
Fans and blowers – Detect imbalance, bearing wear, or power fluctuations.
Production lines and conveyors – Track equipment performance to prevent costly downtime.
Electrical panels and drives – Monitor load conditions and thermal hotspots.
Predictive maintenance programs – Gain holistic insights from one wireless device.
Integration & Software
Part of the Phantom Wireless Condition Monitoring System, the EPH-U13/U14 integrates seamlessly with other Phantom sensors and Erbessd software:
Phantom Gateway 2.0 / USB Gateway – Transmits vibration, current, and temperature data securely.
EI-Analytic – Cloud-based condition monitoring with trend dashboards, alarms, and correlation views.
DigivibeMX – Advanced desktop vibration analysis and reporting software.
Phantom Manager – Mobile configuration, calibration, and device pairing app.
Why Choose the Phantom All-in-One Sensor
Three measurements, one device – Simplify installation and reduce costs.
Correlated data insights – Analyse electrical, thermal, and mechanical behaviour together.
Wireless flexibility – No cabling, easy setup, minimal maintenance.
Proven industrial reliability – Rugged IP67 housing and encrypted transmission.
Local support – Metromatics provides Australian sales, integration, and technical service.
Streamline your predictive maintenance with the Phantom All-in-One Wireless Vibration, Current & Temperature Sensor.
Contact Metromatics today to learn how this versatile multiparameter sensor can simplify your monitoring strategy.
Technical Specifications
Vibration | |||||
Part number | Vibration sensor | ||||
Sensor | MEMS tri-axis accelerometer | ||||
Frequency Range (@25600 SR) | 10kHz (x,y); 5.1kHz (z) | ||||
Dynamic Range | 8 G / 16 G / 32 G | ||||
Internal Temp. Accuracy | ±5°C | ||||
Status (Every 5min) | Internal RMS, battery, temperature, alarm | ||||
Recording Time (s) | 1 | 2 | 4 | 8 | 16 |
Sample Rate (Hz) | 25,600 | 12,800 | 6,400 | 3,200 | 1,600 |
Max Frequency (Hz) | 10,000 | 5,000 | 2,500 | 1,250 | 625 |
Lines of Resolution | 6,400 | ||||
Data Interval | 10 minutes configurable or specific daytime | ||||
Alarm monitoring | 2 – 120 sec. | ||||
Spectral Noise | 630 µg/√Hz | ||||
Current | |||||
Part Number | Current module | ||||
Sensor | Split core current transformer sensor | ||||
CT sensor compatibility | 50 Amp / 100 Amp / 250 Amp / 500 Amp | ||||
Frequency Range | 50 – 60 Hz | ||||
Accuracy | ±5% | ||||
Internal Temp. Accuracy | ±5°C | ||||
Measurement (RMS AC Current) | Minimum / Maximum / Average / Amp Hour | ||||
Data Interval | 30 min / configurable | ||||
Notes | Only for monitoring AC current | ||||
Temperature | |||||
Part Number | Temperature sensor | ||||
Sensor Compatibility | Thermocouple type K | ||||
Temperature Range | Ambient | – 40 to +80 °C | |||
Object | – 210 to +1800 °C (Depends on Thermocouple) | ||||
Internal Temp. Accuracy | ±5°C | ||||
Status (Every 5min) | Battery, temperature sensor, temperature object | ||||
Data Interval | 30 min / configurable | ||||
Accessories Included | Thermocouple type K |
CONNECTIVITY AND SOFTWARE
Wireless Protocol | Bluetooth BLE 5.0 / Modbus via Gateway | ||||
Operating Frequency | 2.4 GHz | ||||
Power Output Range | -4dBm to +8dBm (configurable) | ||||
Signal Strength Range | -90dBm to -30 dBm | ||||
Wireless Range | 100m line of sight | ||||
Software Compatibility | DigivibeMX Phantom version, WiSER VIBE | ||||
OTA firmware update via Phantom Manager app (iOS / Android) |
POWER SUPPLY
Main Power | 2 x Battery AAA 1.5V (Replaceable) | ||||
Battery Life Time | 2-3 years* | ||||
*Standby mode if gateway not detected |
DIMENSIONS AND FIXTURE
Dimensions (w x l x h) | 100mm x 77mm x 26mm | ||||
Weight | 138gr | ||||
Enclosure Material | Nylamid / Aluminium | ||||
Protection Rating | Water and dust resistant IP67 |
ENVIROMENTAL CONDITIONS
Base Temperature Range | -40 to +85 °C (-40 to +185 °F) |
