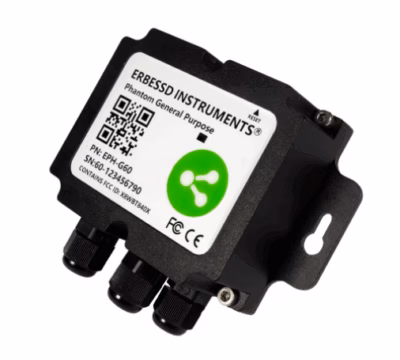

Unlock flexible wireless data acquisition with the Phantom Bluetooth General Purpose Sensor (EPH-G60) from Erbessd Instruments.
Designed to capture a wide range of analog signals from sensors and transducers. Firstly, this versatile Bluetooth general purpose sensor seamlessly integrates into the Phantom wireless condition monitoring ecosystem.
The EPH-G60 has two analog input channels, long-range Bluetooth, and strong IP67 protection. This makes it easy to connect, measure, and monitor signals in industrial or remote areas. You can do all this without needing complex cables.
Key Features & Benefits
Dual analog inputs – supports two independent analog channels for flexible signal capture.
Universal compatibility – connects to proximity, displacement, speed, or vibration sensors with AC 2.5 Vpp signals.
Wireless Bluetooth transmission – BLE 5.0 connectivity for real-time data transfer to the Phantom Gateway.
Industrial protocol support – compatible with Modbus, OPC UA, and MQTT through the Phantom Gateway.
Long-range communication – up to 150 m line-of-sight range for dependable wireless performance.
Battery powered – long-life lithium battery (up to 2–3 years typical) for low-maintenance installations.
Rugged IP67 housing – dust- and water-resistant design for harsh industrial environments.
Built-in temperature sensor – monitors internal module temperature for added diagnostic insight.
Compact design – small form factor ideal for tight or mobile applications.
Secure and encrypted – ensures reliable, interference-free data transmission.
Applications
The Phantom Bluetooth General Purpose Sensor is ideal for:
Proximity and displacement measurement – monitor mechanical movement wirelessly.
Speed and frequency monitoring – capture analog tachometer or encoder outputs.
Machine condition monitoring – pair with vibration and temperature data for predictive analysis.
Retrofit and test environments – integrate existing analog sensors into a wireless network.
Research and prototyping – gather data from a variety of analog sources without complex wiring.
Technical Information
| Parameter | Specification |
|---|---|
| Model | EPH-G60 |
| Inputs | 2 × analog channels (AC 2.5 Vpp) |
| Communication | Bluetooth BLE 5.0 (Encrypted) |
| Protocols (via Gateway) | Modbus, OPC UA, MQTT |
| Wireless Range | Up to 150 m line-of-sight |
| Power Supply | 1 × Lithium 1/6 D 3.7 V Battery |
| Battery Life | 2–3 years typical |
| Protection Rating | IP67 |
| Operating Temperature | –40 °C to +80 °C |
| Dimensions / Weight | Ø 46 mm × H 43 mm / ~160 g |
| Integration | Phantom Gateway 2.0 / USB Gateway, EI-Analytic, DigivibeMX, Phantom Manager |
Integration & Software
The EPH-G60 connects wirelessly to the Phantom Gateway 2.0 or USB Gateway. Which transmits data to Erbessd’s analytics and configuration platforms:
EI-Analytic – trend analog signals, set alarms, and visualise data remotely.
DigivibeMX – combine analog, vibration, and temperature data for advanced diagnostics.
Phantom Manager – configure, calibrate, and manage sensor settings via mobile app.
Why Choose the Phantom Bluetooth General Purpose Sensor
Highly versatile – supports a broad range of analog signal types.
Simple installation – no cabling or complex wiring needed.
Durable and long-lasting – IP67-rated with years of battery life.
Scalable and secure – easily expand your wireless monitoring network.
Local expertise – Metromatics provides Australian sales, setup, and technical support.
Simplify data collection across your equipment with the Phantom Bluetooth General Purpose Sensor (EPH-G60). The flexible, wireless solution for analog signal monitoring.
Contact Metromatics today to learn how it can enhance your condition monitoring system.
