Rugged Half Rack UPS AHB1001

Compact, Rugged Power—Anywhere You Need It

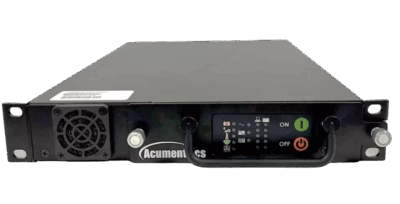

The Acumentrics Rugged Half Rack UPS™ AHB1001 provides 1000 W of clean power. It is very compact, fitting in a 1U half-rack chassis. This size is only one-third of a standard rack unit.

This space- and weight-saving design provides unmatched power portability for defence, aerospace, and demanding industrial applications, while maintaining full 1000 W output for mission-critical electronics.

The Acumentrics Rugged Half Rack UPS™ (AHB1001) delivers 1000 W / 1250 VA of clean, reliable power in a compact 1U half-rack chassis. This lightweight UPS is made for important defence, aerospace, and industrial uses. It keeps essential electronics running during power outages and tough conditions.


Key Features at a Glance

  • Power Output: 1000 W continuous / 1250 VA

  • True Worldwide AC Input: 100 – 264 VAC, 47 – 63 Hz, power-factor corrected

  • Zero Transfer Time: Seamless switching from AC shore power to internal DC battery with no load interruption

  • Ultra-Rugged Design: MIL-STD-461F (EMI/RFI) and MIL-STD-810G (vibration, shock, temperature, blown rain) certified

  • Compact & Lightweight: 1U half-rack footprint (4.45 H × 23.9 W × 35.6 D cm), only 5.4 kg

  • Hot-Swap Battery Pack: User-replaceable lithium iron phosphate (LiFePO₄) with charge-level indicator and NAVSEA safety certification

  • Extended Runtime Options: Add an external battery pack to meet demanding mission durations

  • Monitoring & Control: Optional SNMP management and remote monitoring for critical installations


Built for Demanding Applications

The AHB1001 is engineered for defence, aerospace, and industrial environments where size, weight, and reliability matter.
Typical uses include:

  • C4ISR and Tactical Networks – supports DTECH, KLAS, PACSTAR, and similar compact computing platforms requiring 20–30 VDC.

  • Mobile Command & Communications – integrates easily into transit cases (Ameripack, ECS, Desapro) for rapid deployment.

  • Harsh Industrial Sites – proven performance in extreme temperatures from -40 °C to +60 °C.


Why Choose Acumentrics Rugged Half Rack UPS

Engineers and system integrators value this UPS for its proven reliability, rugged certifications, and small form factor.

Lithium iron phosphate technology, zero-transfer switching, and full MIL-STD compliance keep critical electronics safe and working. This is true even in tough conditions.


Technical Specifications

SpecificationValue
Output Power1000 W continuous / 1250 VA
Input Voltage100 – 264 VAC, 47 – 63 Hz
Output Voltage20 – 30 VDC
Operating Temp-40 °C to +60 °C
Dimensions4.45 H × 23.9 W × 35.6 D cm
Weight5.4 kg
BatteryLiFePO₄, hot-swappable, NAVSEA certified
ComplianceMIL-STD-461F, MIL-STD-810G

Order & Support

Metromatics is the authorised Australian distributor of Acumentrics.

We offer local sales, technical advice, and service support. This helps you confidently integrate the AHB1001 Rugged Half Rack UPS into your project.

Contact us today to discuss your requirements or request a quotation.
