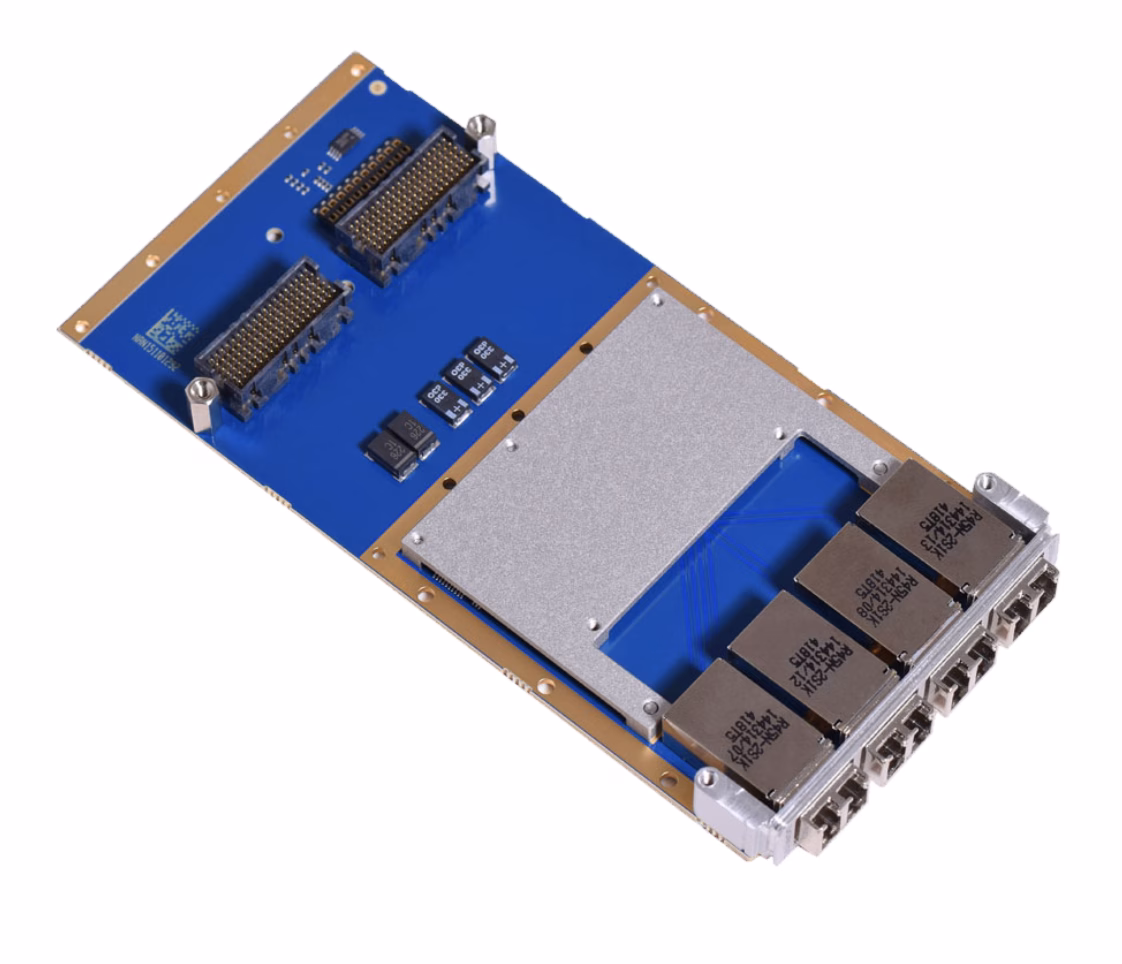

Titan 40GbE XMC

The Titan 40GbE XMC delivers exceptional Ethernet performance in rugged environments where speed, timing, and reliability are critical. Powered by the Intel® XL710-AM1 controller, this XMC module supports full IEEE 1588 PTP and 802.1AS time synchronisation, making it ideal for real-time and synchronised data capture applications.

Rugged Optical Modules – Ultra-High-Speed Ethernet – Built for Extreme Performance

Applications | Benefits

‣ High-performance servers | ‣ Up to 40GbE throughput
‣ NAS and data distribution | ‣ Low power operation
‣ Flight and radar test systems | ‣ Air- or conduction-cooled options
‣ Sensor data recording & replay | ‣ Precision timing with IEEE 1588
‣ Seismic and geophysical systems | ‣ Rugged and flexible I/O integration
‣ Video-over-IP platforms | ‣ Ready for harsh environments

With support for UDP, TCP, SCTP, and IP checksum offloading, and up to 1536 Tx/Rx queues per device, the Titan ensures host CPU resources remain free for critical tasks—even under the heaviest traffic loads.

Designed for integration into CPCI, VME, or VPX single-board computers, the module supports 850nm multimode fibre connections through rugged front panel LC optical connectors or recessed transceivers for conduction-cooled systems. It interfaces to the host via a PCIe Gen3 x8 link, delivering high throughput with low latency.

For non-rugged environments, a PCIe card edge adapter is available, making it easy to deploy in lab development or software integration setups. The Titan 40GbE XMC is compatible with Linux and Windows drivers, providing maximum flexibility.

Galleon Embedded Computing ensures industry-leading reliability with AS/EN 9100 and ISO 9001 certified manufacturing, ideal for defence, aerospace, and industrial applications.

Key Features

  • 1x 40GbE optical Ethernet interface
  • Rugged duplex LC optical connectors (front or recessed)
  • Intel® XL710-AM1 controller
  • PCIe Gen3 x8 host interface (8GT/s)
  • IEEE 1588 and 802.1AS support for time-sensitive networking
  • Full UDP, TCP, SCTP, and IP checksum offload
  • 1536 Tx/Rx queues; 256 maximum VMs supported
  • Air-cooled (-40°C to +75°C) and conduction-cooled (-40°C to +85°C) variants
  • Conformal coating on all models
  • Linux and Windows driver support
  • Optional PCIe edge adapter for lab integration

Technical Specifications

CategoryDetails
ControllerIntel® FTXL710-AM1
Ethernet Interface1x 40GbE via 850nm MMF (LC connectors)
Offload CapabilitiesUDP, TCP, SCTP, IP checksums; 1536 queues; 256 VMs
Host InterfacePCI Express Gen3, x8 (8GT/s)
Timing SupportIEEE 1588 Precision Time Protocol, 802.1AS
Operating Temp.-40°C to +75°C (air-cooled), -40°C to +85°C (conduction-cooled)
HumidityUp to 100%, condensing
Form FactorXMC with optional recessed I/O; fits CPCI, VME, VPX SBCs
Software SupportLinux and Windows drivers
OptionalPCIe desktop adapter; Single-mode fibre or copper options (factory option)

Why Choose Metromatics?

As Galleon’s authorised distributor in Australia, Metromatics offers:

  • Expert local support and technical consultation
  • Onshore servicing and integration advice
  • Experience with defence, aerospace, and surveillance platforms

Contact us today to learn to learn more about this product.

Galleon Embedded Computers, part of the Spectra Defence Technology family alongside Calculex and Argon FDS, delivers rugged data acquisition, storage, computing, and display solutions for military platforms. Metromatics is the authorised Australian distributor, providing local sales, service, and support to ensure mission success.
