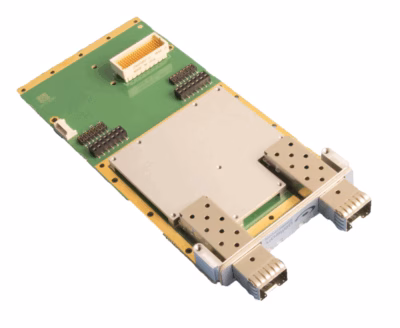

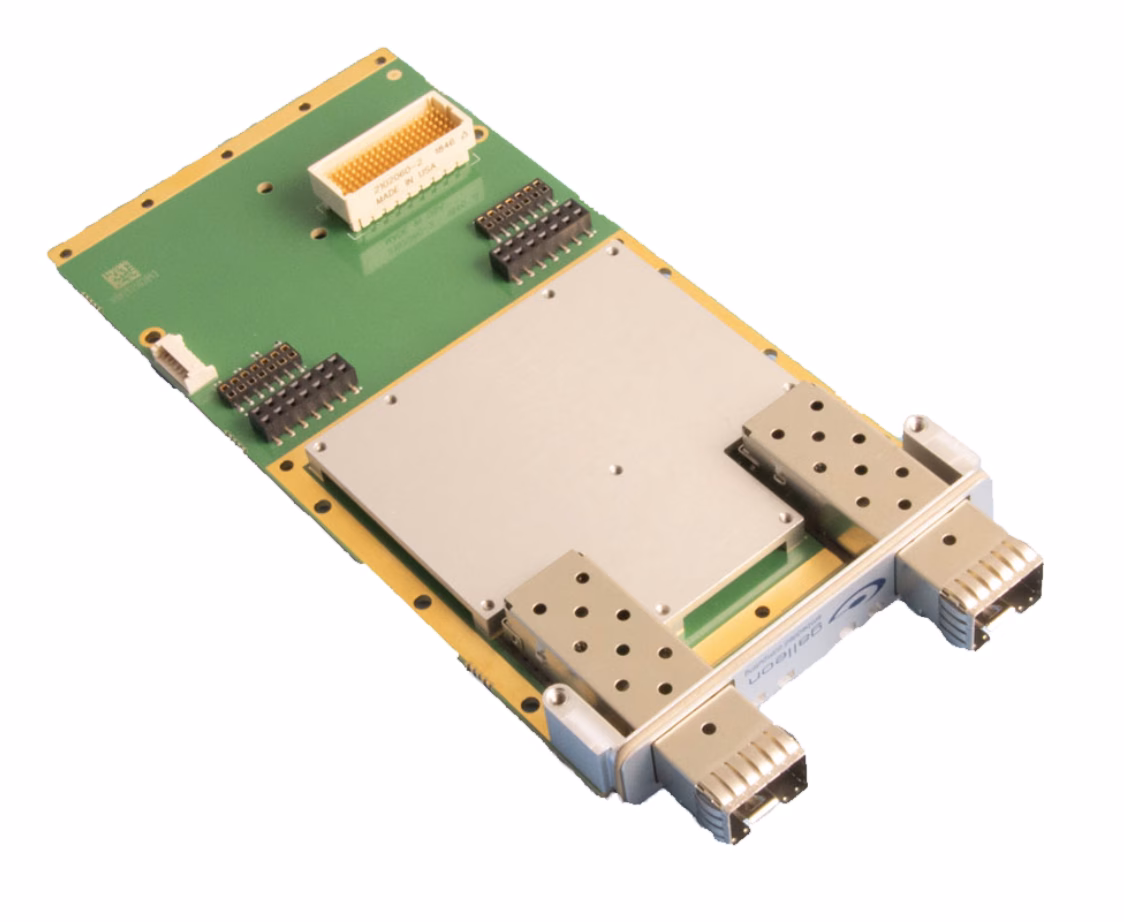

Titan Dual 25GbE XMC

Built for those who don’t blink at 25 billion bits per second, the Titan Dual 25GbE XMC delivers uncompromising Ethernet performance in rugged embedded environments. Powered by the Intel® XXV710-AM2 controller, this dual-channel XMC interface supports 10/25GbE over 850nm multimode fibre, enabling your data to travel at the speed of innovation (minus traffic lights).

Rugged Optical Interfaces – Dual-Channel High-Speed Ethernet – Built for Precision and Performance

Applications | Benefits

‣ Mission-critical servers | ‣ Ultra-high data throughput
‣ NAS deployments | ‣ Low power draw
‣ Flight and missile test beds | ‣ Air- or conduction-cooled options
‣ High-speed sensor data capture | ‣ Precision time synchronisation (PTP)
‣ Video-over-IP systems | ‣ Flexible integration
‣ Seismic and geo-survey data logging | ‣ Tool-free optical I/O

With full support for IEEE 1588 PTP and 802.1AS, the Titan synchronises to within a whisker of a nanosecond—ideal for applications where time is literally money, or missiles. Its extensive hardware offload capabilities (UDP, TCP, SCTP, IP) ensure that your host CPU doesn’t burn out faster than your coffee during final testing.

Available with rugged front panel LC connectors or recessed fibre modules for conduction-cooled systems, this XMC board slots into CPCI, VME, or VPX SBCs without complaint—because unlike interns, it doesn’t need handholding. An optional PCIe desktop adapter also makes lab development a breeze.

The PCIe Gen3 x8 interface ensures your data flows like poetry on fibre—8.0GT/s to be exact—while Linux and Windows driver support gives you platform flexibility that even your IT department can’t grumble about.

As always, Galleon Embedded Computing ensures mission assurance, with build quality certified to AS/EN 9100 and ISO 9001. Because in aerospace and defence, you don’t get a second chance to wish you’d bought better hardware.

Key Features

  • Dual 10/25GbE optical Ethernet channels
  • Intel® XXV710-AM2 controller
  • Rugged LC connectors or recessed optical modules
  • PCIe Gen3 x8 host interface (8GT/s)
  • Hardware offloads: UDP, TCP, SCTP, IP
  • Up to 256 VMs per port; 1536 Tx/Rx queues
  • Precision time sync: IEEE 1588, 802.1AS
  • Linux and Windows drivers
  • Air- and conduction-cooled variants
  • Optional card-edge PCIe adapter for lab use
  • Whispering “I’m fast” in binary to your backplane

Technical Specifications

SpecificationDetail
Ethernet ControllerIntel® XXV710-AM2
Interfaces2x 10/25GbE via 850nm MMF, LC Duplex Connectors
Optional recessed connectors for conduction-cooled integration
Host InterfacePCI Express Gen3, x8 (8.0GT/s)
Offload FeaturesUDP, TCP, SCTP, IP, VMQ, RSS, VMDq
PTP SupportIEEE 1588, 802.1AS, per-packet timestamping
Operating Temp.-40°C to +75°C (Air), -40°C to +85°C (Conduction)
HumidityUp to 100%, condensing (like a soda can on a summer day)
Software SupportLinux & Windows drivers included

Why Choose Metromatics?

As Galleon’s authorised distributor in Australia, Metromatics offers:

  • Expert local support and technical consultation
  • Onshore servicing and integration advice
  • Experience with defence, aerospace, and surveillance platforms

Contact us today to learn to learn more about this product.

Galleon Embedded Computers, part of the Spectra Defence Technology family alongside Calculex and Argon FDS, delivers rugged data acquisition, storage, computing, and display solutions for military platforms. Metromatics is the authorised Australian distributor, providing local sales, service, and support to ensure mission success.

Titan Dual 25GbE XMC – Ultra Rugged – Galleon Embedded Computing

This link will take you to the Galleon Embedded Computing website from which you can sign in and download the spec sheet.
