The Shuttle SPCNV03 Ultra Compact Edge Computer is a rugged, power-efficient platform. Designed for high-performance AI Edge Computing in space-constrained environments. Built on the NVIDIA Jetson Orin Nano module. It delivers up to 40 TOPS of AI performance while operating reliably in harsh industrial or outdoor conditions. The SPCNV03 is perfect for smart city infrastructure, industrial automation, and intelligent retail. It combines strong computing power, a small size, and energy efficiency.
Key Features
- Powerful NVIDIA Edge Computing
Driven by the NVIDIA Jetson Orin Nano (4 GB or 8 GB). The SPCNV03 accelerates deep learning, computer vision, and real-time data analysis at the edge. - Ultra Compact, Rugged Design
Measuring just 120 × 75 × 51 mm, this palm-sized Edge AI device fits easily into tight enclosures and withstands vibration, dust, and extreme conditions. Wide operating range of –20 °C to +55 °C ensures reliable performance in demanding environments. - Energy Efficient Operation
Low power consumption—starting from just 7 W—makes it ideal for remote or mobile installations where energy efficiency is critical. - Flexible Expansion & Connectivity
Dual Gigabit LAN (including 2.5 GbE), HDMI, USB 3.2, serial (RS-232/422/485), digital I/O, and two M.2 slots for NVMe SSD and wireless modules provide versatile connectivity for cameras, sensors, and industrial networks. - Easy Integration
Supports VESA, DIN-rail, and wall mounting, ensuring simple installation in factory control panels, kiosks, or transport equipment.
Applications
The SPCNV03 Ultra Compact Edge Computer is purpose-built for:
- Industrial Automation & Monitoring – Real-time process control, predictive maintenance, and machine vision.
- Smart City & IoT Gateways – Traffic analytics, environmental monitoring, and smart lighting control.
- Retail & Digital Signage – Customer analytics, AI-driven content delivery, and interactive kiosks.
- Autonomous Robotics & Mobile Platforms – Object detection, path planning, and edge-based AI inference where power and space are limited.
Local Sales, Service & Support
Metromatics provides full local sales, service, and support for the Shuttle SPCNV03 across Australia. Our Brisbane-based team offers expert pre-sales advice, system integration assistance, and ongoing technical support to ensure your NVIDIA Edge Computing solution performs reliably from day one.
Deploy advanced AI Edge Computing anywhere.
Contact Metromatics today to learn how the Shuttle SPCNV03 Ultra Compact Edge Computer can transform your edge AI projects with powerful performance in the smallest footprint.
Specifications
| FORM FACTOR | Rugged aluminium chassis |
| PROCESSOR | JETSON Orin™ Nano 4GB ( 20 TOPs ) 7W to 10W JETSON Orin™ Nano 8GB ( 40 TOPs ) 7W to 15W |
| MEMORY | 4GB 64-bit LPDDR5 @2133 MHZ, 34 GB/s 8GB 64-bit LPDDR5 @2133 MHZ, 34 GB/s |
| VIDEO OUTPUT | HDMI 1.4b (1920×1080@60Hz)*1 |
| ETHERNET | 1st Lan: Realtek RTL8111HNI, 1.0GbE 2nd Lan: Intel I226-V LAN controller, 2.5GbE, support optional PSE function |
| STORAGE INTERFACE | SSD M.2 M 2280 (PCIe) |
| FRONT PANEL | 1x USB Gen2 (Type A) 1x USB OTG 3.2 Gen2 (Type A)-Bottom port 1x RJ-45 (Intel 2.5G Lan) 1x RJ-45 (Realtek 1.0G Lan) |

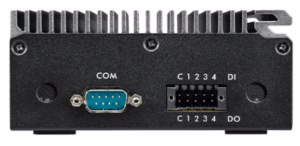

| BACK PANEL | DIO*1 RS-232/422/485（DB-9*1) |
| DIMENSIONS | 120（L） x 75（W） x 51（H） mm |
| POWER | 12V~24V DC in by 3-pin terminal block |
| ACCESSORIES | VESA Mount 100 x 100 mm Ear Mount Din Rail Mount 50 x 50 mm Din Rail Clip |
| EXPANSION SLOT | 1x M.2 2280 M Key / M.2 2230 E key slot support SATA Gen 1 |
| OS SUPPORT | Linux Ubuntu 22.04 |
| NET WEIGHT | 0.7KG |
| OPERATING TEMPERATURE | -20°C ~55°C The working temperature can only reach 55°C at a wind speed of 0.7m/s. The operating temperature can only reach 50°C in a windless environment. |
| RELATIVE HUMIDITY | 10% – 90% RH (non-condensing) |
| EMC | CE, FCC, VCCI BSMI |
| SAFETY | CB, cTUVus, CEC, BSMI |
| WLAN | 1 x M.2 2230 E key ( Option ) Intel WiFi Module ( 802.11 a/b/g/n/ac ) + BT 5.0 Realtek RTL8821CE ( 802.11 a/b/g/n/ac ) + BT 5.0 External antenna ( Dipole ) |
