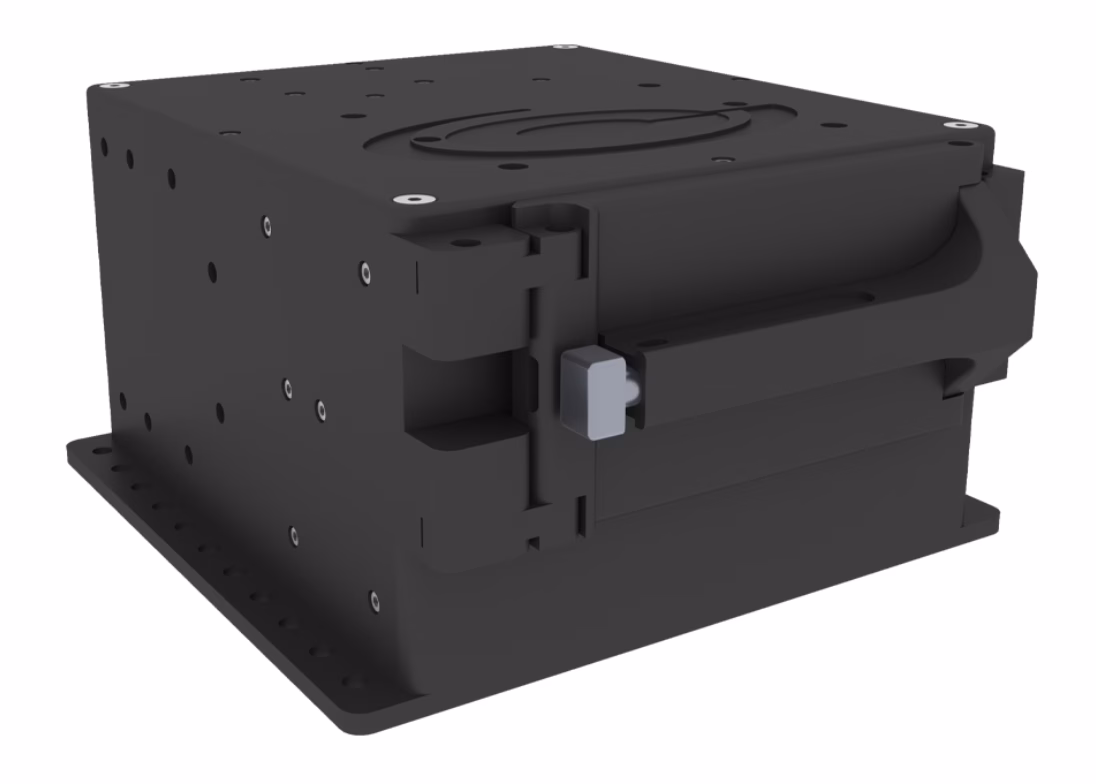

Rugged Multi-Speed Ethernet Recorder – 40GbE, 10GbE, and GbE
The XSR 40GbE Recorder is built for next-generation data acquisition demands, supporting simultaneous capture from high-speed Ethernet links in harsh field environments. With up to 1x 40GbE optical, 2x 10GbE, and 5x GbE channels, it achieves sustained recording rates beyond 2GB/s. Based on a COTS Open Architecture and powered by Intel Xeon CPUs with up to 96GB DDR4 ECC memory, the XSR ensures performance scalability, long-term support, and system longevity. Its removable SSD modules allow fast offload, while dual-layer encryption protects sensitive data.
Metromatics is your local expert for Galleon products in Australia—providing consultation, support, and service from specification to deployment.
Key Features
• Up to 1x 40GbE (optical), 2x 10GbE, and 5x GbE ports
• >2GB/s sustained recording rate
• Up to 80TB removable SSD storage (SLC/MLC options)
• Removable Data Modules (RDMs) for fast offload
• Supports RAID 0, 1, 5
• Optional FIPS 140-2 / AES-256 encryption (SWFDE & HWFDE)
• NTP or GPS time/date synchronisation with timestamping
• Compact rugged design: 157 x 201 x 103 mm (SFF)
• MIL-DTL-38999 connectors for field reliability
• Rugged conduction- and air-cooled variants available
• MIL-STD-810, MIL-STD-461 tested
Applications
• Unmanned Systems (UAS, UGV, UUV)
• High-Speed Sensor Data Recording
• Sensor and Communications Development
• Flight Test and Airborne Telemetry
• Deployed and Vehicle-Based Systems
• Multichannel Ethernet Logging in Harsh Conditions
Interfaces & Storage
Rear Panel Interfaces:
• 1x 40GbE (optical, SR4)
• 2x 10GbE (10GBASE-T)
• 5x GbE (1000BASE-T)
• 1x Dedicated GbE control port
• 3x USB 2.0
• 2x RS-232
• 4x GPIO
• 1x VGA
• 1x GPS antenna input
Front Panel Interface:
• Removable Storage Bay
Storage Options:
• Up to 80TB MLC SSD
• Up to 40TB SLC SSD
• Supports RAID 0 / 1 / 5 configurations
• SWFDE / HWFDE with CSfC-approved encryption layers
GPS and Time Sync
• Onboard GPS for synchronised timestamping
• Supports time/date sync via GPS or NTP service
Environmental Specifications
| Specification | Value |
| Operating Temp | 0°C to +50°C (Standard), -40°C to +71/75°C (Extended) |
| Shock & Vibration | MIL-STD-810 compliant |
| Altitude | -1500 to 40,000 ft (AC), -1500 to 60,000 ft (CC)* |
| Humidity | Up to 100%, condensing |
| EMI/RFI | MIL-STD-461 compliant |
*Contact factory for extended altitude options.
Size, Weight & Power
| Configuration | Dimensions (mm) | Weight |
| Conduction-Cooled (SFF) | 157 x 201 x 103 | ~4.5 kg |
- Variants: Conduction-cooled, fanless natural convection, or air-cooled
• Power: 40–60W idle / 50–90W max (based on configuration)
• Input Voltage: 16–40V DC
Why Choose the XSR 40GbE Recorder?
• Combines multi-speed Ethernet recording in a rugged, compact package
• Supports real-time data capture at over 2GB/s
• Enables secure, encrypted recording with NIAP/NSA compliance
• Removable SSDs reduce ground time and simplify data access
• Designed with COTS Open Architecture for long lifecycle and upgradeability
• Backed by Metromatics’ trusted local sales and technical support in Australia
