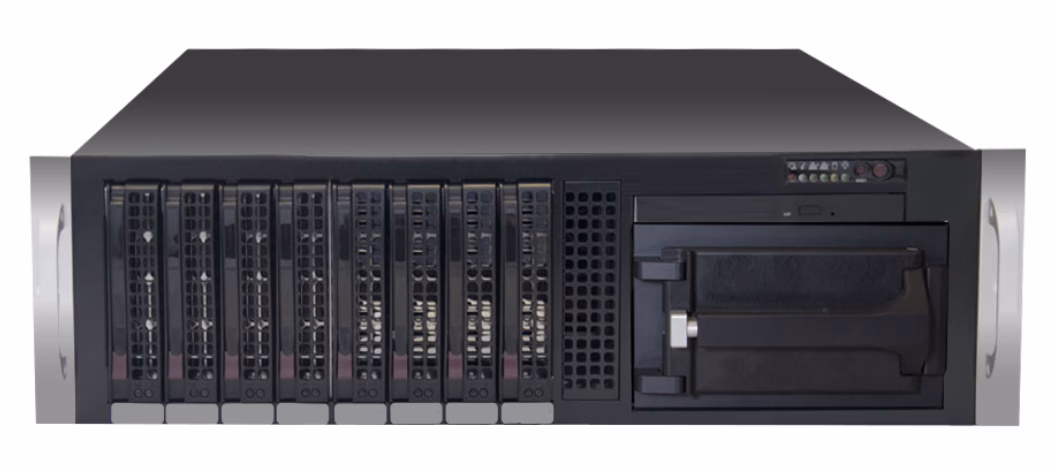

XSR Offload Server

The Galleon XSR Offload Server is a high-performance, rackmount data server designed for secure post-mission offload, processing, and long-term storage of data captured on XSR Removable Data Modules (RDMs). Built on Supermicro® 3U server architecture with Intel® Xeon® processors and up to 144TB of internal RAID storage, the XSR Offload Server offers sustained read/write speeds over 800MB/s via direct SATA access to RDMs. Designed for rapid access, archiving, and secure key management, it is the ideal solution for flight test, radar development, seismic research, and other data-intensive applications.

Rackmount Data Server with RDM Docking and Secure RAID Storage

Engineered for mission-ready data handling, the XSR Offload Server delivers high-capacity performance in a rugged 3U 19” rackmount form factor. It includes a front-access RDM docking station with 4x 3.0 Gbps SATA links, allowing direct access to Galleon RDMs without tools. With support for dual Gigabit Ethernet and optional 10GbE or up to 100GbE upgrades, this server provides scalable connectivity for high-speed file transfers, distribution, and analysis. AES-256 hardware encryption support and compatibility with CSfC-approved components make it ideal for secure environments.

Metromatics provides local integration and support for Galleon’s offload solutions across Australia, ensuring a seamless post-mission data workflow.

Key Features

• Front-access RDM docking station (no tools required)
• Read/write speeds up to 800MB/s via SATA 3.0
• Up to 144TB internal RAID storage (8x 18TB HDDs)
• Intel® Xeon® quad-core processor with 128GB SDRAM
• Dual Gigabit Ethernet ports standard
• Optional upgrades to 10GbE or 100GbE interfaces
• Optional AES-256 hardware encryption for secure data access
• Supports encrypted RDMs and key management
• Redundant 800W power supplies
• Compatible with Galleon XSR recorders, NAS, and servers

Applications

• Flight Test Data Offload
• Missile and Radar Data Processing
• Geological and Seismic Survey Data Archiving
• Physics Research and Sensor Data Management
• Secure Ground Station Deployment
• Mission Data Distribution and Analysis

Interfaces & Storage

Front/Rear Panel Interfaces:

• RDM Docking Bay with 4x 3.0 Gbps SATA connections
• 8x internal 3.5” HDD (not hot-swappable)
• 2x Gigabit Ethernet ports
• USB, RS-232, VGA, CD/DVD-RW

Storage Configuration:

• Up to 144TB RAID (8x 18TB)
• Supports full encryption and optional tape archive systems
• Future-ready for increased capacities with next-gen drives

System Configuration

ComponentSpecification
CPUIntel® Xeon® Quad-Core (default)
MemoryUp to 128GB ECC SDRAM
MotherboardSupermicro®
Operating SystemRedHat/Debian Linux, Windows 10/Server

Power & Environmental

SpecificationValue
Power SupplyDual 800W Redundant, 100–240V AC, 50–60Hz
HumidityUp to 100%, condensing
Size3U Rackmount (132 x 437 x 648 mm)
Weight~40 kg (configuration dependent)

Ordering Information

• SRV-3U19-xxTB-yyy
• xxTB indicates total RAID capacity (up to 144TB)
• yyy denotes configuration options such as OS, encryption, or network upgrades
• Custom variants available on request

Why Choose the XSR Offload Server?

• Fast, direct access to mission-critical data via RDM
• Supports high-speed copy and secure archival to RAID
• Tool-free operation for minimal turnaround
• Expandable network interface options for any deployment scale
• Secure data handling with CSfC-compliant encryption
• Supported by Metromatics’ expert team in Australia

Why Choose Metromatics?

As Galleon’s authorised distributor in Australia, Metromatics offers:

  • Expert local support and technical consultation
  • Onshore servicing and integration advice
  • Experience with defence, aerospace, and surveillance platformsContact us today to find out how the G1 microServer can be tailored to your mission-critical application.

Contact us today to learn more about this product.

Galleon Embedded Computers, part of the Spectra Defence Technology family alongside Calculex and Argon FDS, delivers rugged data acquisition, storage, computing, and display solutions for demanding military platforms. Metromatics is the authorised Australian distributor, providing local sales, service, and support to ensure mission success.
