10.1″ Tough Tablet

Ruggon offers a 10.1” Tough Tablet with advanced touch technology.  The applications for this System are limitless as it has a Rugged, Reliable Profile, Rich Data Capture, I/O Options and expansion options for in field use where it is more likely to resist external damage.

Metromatics provides superior local sales, service and support for this product in Australia.

To learn more about this 10.1” Rugged Tough Tablet; read on below.

The RuggON REXTORM PX-501 is 10.1” Tough Tablet.  Firstly, it contains advanced touch technology.  Therefore, it can avoid unintended and accidental touches.  Paired with an IP54 Digitiser Pen or a 2mm Hard Tip Stylus – which ensures accurate touchscreen interaction.  The PX-501 is contains Gorilla Glass and Glove Touch function.  Therefore, providing a rugged device for mobile field workers, that is toughened and more likely to resist external damage.

Secondly, it has a 1000 Nit Brightness Sunlight Readable Display with hyper dimming option (providing more clarity in low ambient light conditions).  Also equipped with a seamless communication network, it offers faster processing, broader coverage, more stable and efficient transmission and a great selection of I/O Ports and Data Capture capabilities.


Other features of this Rugged Tough Tablet include:

  • High Brightness Display and Hyper Dimming technology to adapt to different ambient lighting conditions
  • Uses powerful 7th & 8th generation Intel® Core™ i5 vPro™ Processor
  • Latest Comms and large selection of I/O ports and expansion options for field use
  • Hot Swap Battery plus fast charging that offers near indefinite capacity


Finally, for more information, contact us.


Specification on the 10.1 Inch Tough Tablet

SystemIntel® Core™ i5-7300U vPro™ processor 2.6GHz
Intel® Core™ i5-8250U processor 1.6GHz
8GB DDR4 SDRAM, 16GB DDR4 SDRAM (By request)
128GB M.2 SSD, 256GB M.2 SSD (By request)
OS supports Windows 10 IoT Enterprise
Display10.1” TFT LCD WUXGA (1920 x 1200), Gorilla Glass
1000 nits sunlight readable with hyper dimming option
Capacitive multi-touch screen supports glove touch, water rejection, 2mm hard tip stylus
Optional digitizer with IP54 pen
ExpansionBuilt-in 2D barcode reader (OCR option)
NFC + Smart Card reader ( CAC) 2-in-1 module
Fingerprint reader, UHF RFID reader
Snap-on connector easy for customisation
I/O InterfaceUSB 3.1 type A x 1, USB 3.1 type C x 1
RS-232 x 1, option USB 2.0 or Micro SD slot
Audio headset jack x 1
Micro SIM slot x 1, Micro HDMI x 1
Optional RF pass-through connector for WLAN/ GNSS/ WWAN x 2
Docking connector x 1
DC-in x 1
PowerAC adapter (65W, 100-240V AC, 50/60Hz)
4500mAh hot swappable battery, optional 9000mAh hot swappable battery
Support fast charging
DurabilityIP65 and MIL-STD-810G certified
Vibration, shock and 5' drop resistance
Operating temperature : -20° C to +60° C
CommunicationsGigabit Ethernet (RJ45)
Wi-Fi 802.11 a/b/g/n/ac
Bluetooth V4.2
Optional 4G LTE
Camera2MP front camera
8MP auto focus rear camera with LED flash
Phoenix SecureWipe by request


Fingerprint readerRuggON -Rugged-Tablet-UHF-RFID-ReaderNFC,smart card reader

Fingerprint Reader

Model RSK-FP02


Model RSK-UHF01

NFC + Smart Card Reader

Model SN203-SN01


RuggON-Rugged-Tablet-Detachable-keyboarddesktop dock for charging tabletvehicle charging dock

Detachable Keyboard

Model RDK-501

Desktop Dock

Model DT06

Vehicle Dock

Model VD06

vehicle charge dock alt modelvesa bracketshoulder strap

Vehicle Dock

Model VD10

VESA Bracket

Model VB04

Shoulder Strap

RuggON _ Rugged tablet_Hand StrapRuggON-Rugged-Tableyt-Hard-HandleRuggON _ Rugged tablet_Handle

Hand Strap

Hard Handle

Model RSK-HS01


9000mah Battery4500 mah Battery4 bay battery charger

9000mAh Battery

Model EB03

4500mAh Battery

Model SB01

4 Bay Battery Charger

Model RSK-BC400

dual bay battery chargercar chargerIP54 Digital Pen

Dual Battery Bay Charger

Model EB200

Car Adaptor

Model VC01

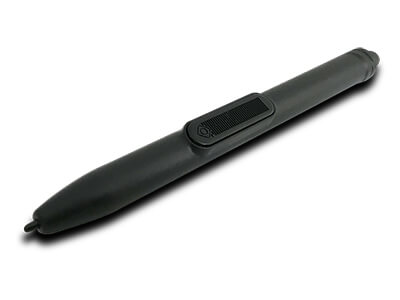

IP54 Digitiser Pen
