7 Inch Rugged Tablet

RuggON offers a 7 Inch Fully Rugged Tablet with a fingerprint reader, MRZ reader and multiple security functions.  The applications for this System are virtually unlimited as it has a high level of security for public safety needs.  It can be used in Defence, Public Security, In-Field and Industrial applications.

Metromatics provides superior local sales, service and support for this product in Australia.

To learn more about this 7” Rugged Windows Tablet; read on below.

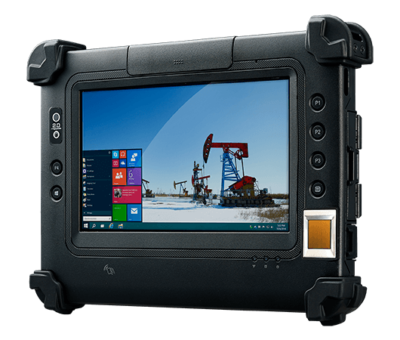

The RuggON BLAXTONE PM-311B is a 7 Inch Rugged Tablet and designed for Public Service. Firstly, reads up to 3 lines of machine readable zone (MRZ) data.  Therefore, allowing it to capture, identify and process passport, VISA and ID Card Information.  Also equipped with a 508-dpi high performance finger print reader.  Which allows it to collect fingerprint characteristics that matches databases.

Designed and tested to survive a 5 foot drop and meet MIL-STD-810G for vibration and shock resistance.  Therefore, making it the best device for mobile and public service workers.  Secondly, it contains an encrypted SSD with FIPS 140-2 certification with a customised one button push function to erase SSD during emergencies.  Achieved by using Phoenix’s SecureWipe Technology and by a number of global standard algorithms.

Other features of this 7 Inch Rugged Tablet include:

  • Multi Capacitive 7” Touch Screen with Gorilla Glass
  • High Bright, Optically Bonded Sunlight Readable Screen Solution
  • IP65, MIL-STD-810G, 1.5 Metre Drop Test
  • Connectivity – NFC, GNSS, WLAN, WWAN, Bluetooth
  • Hot Swappable Battery Designs
  • Massive range of expansion options to fulfil public safety applications



Finally, for more information, contact us.

Seven Inch Rugged Tablet Blaxtone PM311B

Specification on 7 Inch Rugged Tablet

SystemIntel® Celeron® N2930 processor 1.83GHz
4GB DDR3L
128GB/ 256GB SSD, optional FIPS 140-2 certified SSD (64~256GB)
OS supports Windows 10
Display7" TFT LCD WSVGA (1024 x 600), multiple capacitive touch with Gorilla glass
1000 nits, Optical Bonding with AR/AF solution
ExpansionMRZ reader+ MSR 2-in-1 module
2D barcode reader + MSR 2-in-1 module
Fingerprint reader (capacitive type, 508 dpi)
2D barcode reader (OCR option)
I/O InterfaceUSB 3.0 type A x 2
RS-232 x 1
Audio jack x 1
Micro SD slot x 1
Micro SIM slot x 1
Docking connector x 1
PowerAC adapter (65W, 100-240V AC, 50/60Hz)
3200 mAh, 7.2V standard battery
Optional 4200mAh hot swappable battery

DurabilityIP65 and MIL-STD-810G certified
Vibration, shock and 5' drop resistance
Operating temp : -20℃ to +50℃

CommunicationsWi-Fi 802.11 a/b/g/n/ac, Bluetooth V4.0 + EDR, optional 4G LTE
Gigabit Ethernet (RJ45)
NFC
Wi-Fi 802.11 a/b/g/n/ac
GNSS (GPS, GLONASS, optional BeiDou)
Bluetooth V4.0 + EDR
Optional 4G LTE
Camera2MP front camera
8MP auto focus rear camera with LED flash
SecurityTPM 2.0
Phoenix SecureWipe by request

Peripherals

RuggON-Rugged-Tablet-MSR-MRZ-Reader RuggON -Rugged-Tablet-MSR-2D-Barcode-Reader RuggON-Rugged-tablet-2D-Barcode-Reader-OCR

MSR + MRZ Reader

Model SN202-MM01

MSR + 2D Barcode Reader

Model SN202-MB01

2D Barcode Reader with OCR + EZDL

Model RSK-MRC01

Accessories

vehicle dock desktop dock vesa bracket

Vehicle Dock

Model VD05

Desktop Dock

Model DT05

VESA Bracket

Model VB03

Shoulder Strap extended battery RuggON _ Rugged tablet_Handle

Shoulder Strap

Extended Battery

Model EB02

Handle

extended battery charger car charger

Battery Charger

Model EB100

Car Adaptor

Model VC01

Reviews

There are no reviews yet.

Be the first to review “7 Inch Rugged Tablet”

Your email address will not be published.

PM311B_datasheet_19B
