Rugged Ethernet Recorder with FPGA-Based UDP Offload & Playback

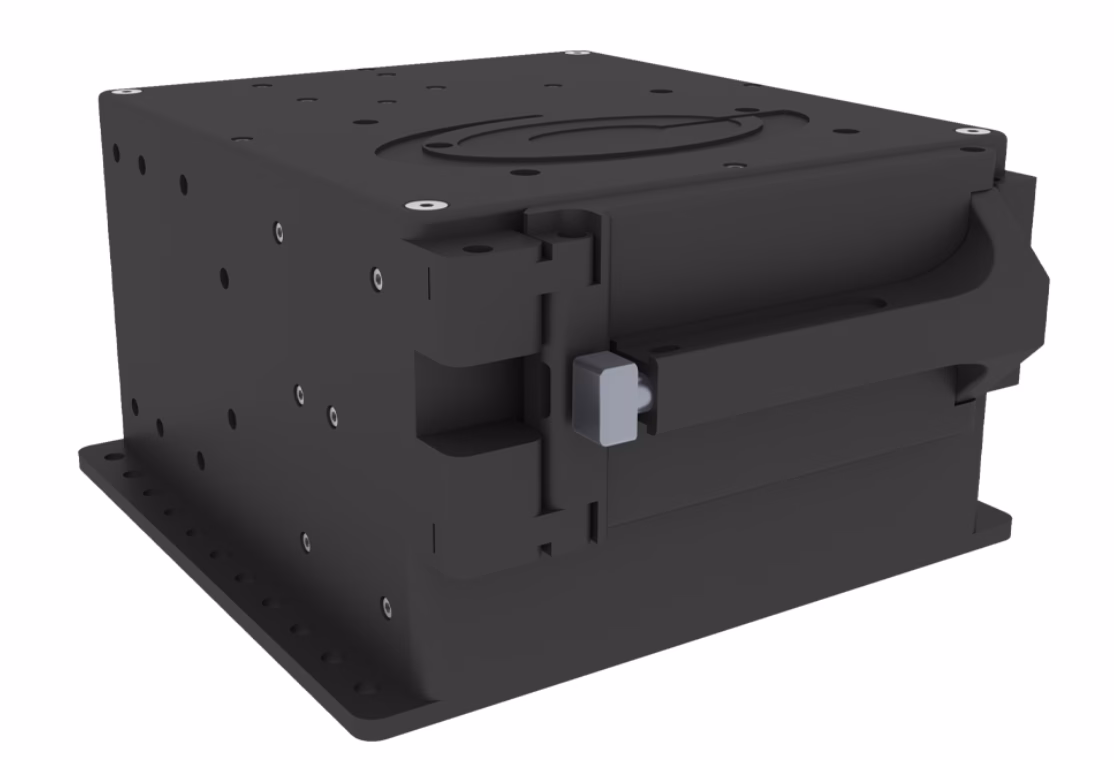

The Galleon 10GbE UDP Recorder provides high-bandwidth UDP data capture and synchronised playback in a rugged, SWaP-C optimised form factor. It is uniquely engineered with FPGA-based processing to guarantee zero dropped packets, minimal CPU load, and precise cycle-accurate timestamping. This system is ideal for high-speed applications including missile testing, radar development, sensor validation, and scientific research. With up to 8x 10GbE inputs and removable SSD storage, it enables real-time, reliable, and repeatable data acquisition in even the harshest environments.
Metromatics is the exclusive Australian distributor of Galleon Embedded Computing products, providing full local sales and technical support.
Key Features
• Up to 8x 10GbE UDP channels
• FPGA-powered UDP offload – 100% packet capture at full line rate
• Cycle-accurate receive timestamps (3.2 ns accuracy)
• Cycle-accurate playback with precise timing reproduction
• Zero packet loss regardless of packet size
• High-capacity removable SSD storage (up to 80TB)
• Rugged LC Duplex or expanded beam optical connectors
• Supports GPS/NTP for time/date synchronisation
• NIAP-approved SWFDE & HWFDE encryption options
• MIL-STD-810 and MIL-STD-461 compliant
Applications
• Missile Testing and Telemetry
• Radar Data Acquisition
• High-Speed Sensor and Seismic Logging
• Geological Survey & Exploration
• Physics & Scientific Research
• Flight Test Instrumentation
Interfaces & Storage
Rear Panel Interfaces:
• Up to 8x 10GbE (optical, UDP-optimised)
• Control and maintenance Ethernet ports
• Optional GPS antenna input
Front Panel Interface:
• Toolless removable storage bay
Storage Options:
• Up to 80TB MLC SSD (SATA-based)
• Up to 16TB NVMe SSD
• Supports SWFDE/HWFDE (CSfC encryption)
Time Synchronisation
• Optional onboard GPS for timestamping
• NTP support for time/date sync
Environmental Specifications
| Specification | Value |
| Operating Temp | 0°C to +50°C (Standard), -40°C to +71°C (Extended) |
| Shock & Vibration | MIL-STD-810 compliant |
| Altitude | -1500 to 40,000 ft (AC), -1500 to 60,000 ft (CC)* |
| Humidity | Up to 100%, condensing |
| EMI/RFI | MIL-STD-461 compliant |
*Contact factory for high-altitude support.
Size, Weight & Power
| Configuration | Dimensions (mm) | Weight |
| Small Form Factor (SFF) | 157 x 201 x 103 | ~4.5 kg |
- Power Consumption: ~65W (typical for 4-channel operation)
• Input Voltage: 16–40V DC
Why Choose the 10GbE UDP Recorder?
• Deterministic, lossless UDP recording at full 10GbE speeds
• Low-latency FPGA architecture with CPU offload
• Precise timing for playback and analysis
• Rugged, SWaP-C design ideal for mobile and tactical systems
• Removable SSDs for rapid mission offload
• Secure data handling with NSA CSfC-listed encryption options
• Backed by Metromatics’ local support across Australia
