7 Inch Rugged Tablet

RuggON offers a 7 Inch Fully Rugged Tablet with a fingerprint reader, MRZ reader and multiple security functions. The applications for this System are virtually unlimited as it has a high level of security for public safety needs. It can be used in Defence, Public Security, In-Field and Industrial applications.

Metromatics provides superior local sales, service and support for this product in Australia.

To learn more about this 7” Rugged Windows Tablet; read on below.

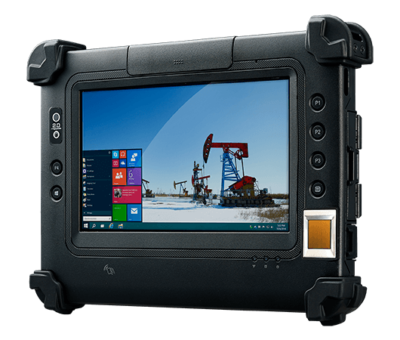

The RuggON BLAXTONE PM-311B is a 7 Inch Rugged Tablet and designed for Public Service. Firstly, reads up to 3 lines of machine readable zone (MRZ) data. Therefore, allowing it to capture, identify and process passport, VISA and ID Card Information. Also equipped with a 508-dpi high performance finger print reader. Which allows it to collect fingerprint characteristics that matches databases.

Designed and tested to survive a 5 foot drop and meet MIL-STD-810G for vibration and shock resistance. Therefore, making it the best device for mobile and public service workers. Secondly, it contains an encrypted SSD with FIPS 140-2 certification with a customised one button push function to erase SSD during emergencies. Achieved by using Phoenix’s SecureWipe Technology and by a number of global standard algorithms.

Other features of this 7 Inch Rugged Tablet include:

Multi Capacitive 7” Touch Screen with Gorilla Glass
High Bright, Optically Bonded Sunlight Readable Screen Solution
IP65, MIL-STD-810G, 1.5 Metre Drop Test
Connectivity – NFC, GNSS, WLAN, WWAN, Bluetooth
Hot Swappable Battery Designs
Massive range of expansion options to fulfil public safety applications

Finally, for more information, contact us.

Specification on 7 Inch Rugged Tablet

System	Intel® Celeron® N2930 processor 1.83GHz 4GB DDR3L 128GB/ 256GB SSD, optional FIPS 140-2 certified SSD (64~256GB) OS supports Windows 10
Display	7" TFT LCD WSVGA (1024 x 600), multiple capacitive touch with Gorilla glass 1000 nits, Optical Bonding with AR/AF solution
Expansion	MRZ reader+ MSR 2-in-1 module 2D barcode reader + MSR 2-in-1 module Fingerprint reader (capacitive type, 508 dpi) 2D barcode reader (OCR option)
I/O Interface	USB 3.0 type A x 2 RS-232 x 1 Audio jack x 1 Micro SD slot x 1 Micro SIM slot x 1 Docking connector x 1
Power	AC adapter (65W, 100-240V AC, 50/60Hz) 3200 mAh, 7.2V standard battery Optional 4200mAh hot swappable battery
Durability	IP65 and MIL-STD-810G certified Vibration, shock and 5' drop resistance Operating temp : -20℃ to +50℃
Communications	Wi-Fi 802.11 a/b/g/n/ac, Bluetooth V4.0 + EDR, optional 4G LTE Gigabit Ethernet (RJ45) NFC Wi-Fi 802.11 a/b/g/n/ac GNSS (GPS, GLONASS, optional BeiDou) Bluetooth V4.0 + EDR Optional 4G LTE
Camera	2MP front camera 8MP auto focus rear camera with LED flash
Security	TPM 2.0 Phoenix SecureWipe by request

Peripherals

RuggON -Rugged-Tablet-MSR-2D-Barcode-Reader

RuggON-Rugged-tablet-2D-Barcode-Reader-OCR

MSR + MRZ Reader

Model SN202-MM01

MSR + 2D Barcode Reader

Model SN202-MB01

2D Barcode Reader with OCR + EZDL

Model RSK-MRC01

Accessories


Vehicle Dock Model VD05	Desktop Dock Model DT05	VESA Bracket Model VB03

Shoulder Strap	Extended Battery Model EB02	Handle

Battery Charger Model EB100	Car Adaptor Model VC01
