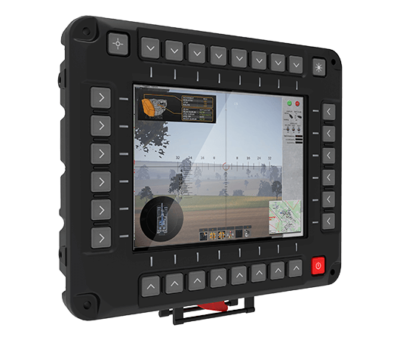

Metromatics proudly offers the XR10 10.4″ Military Panel PC, engineered for mission-critical operations across Defence, Aerospace, and Industrial sectors. This rugged touch screen panel PC is built to withstand the harshest conditions.
🔍 Key Features
High-Performance Processing: This device has an Intel® Core™ i7-6822EQ Quad-Core Processor. It runs at 2.0GHz and can boost up to 2.8GHz for better multitasking.
Sunlight-Readable Display: 10.4″ TFT LCD XGA (1024 x 768) with 1300 nits brightness. It has a multi-point resistive touch screen for clear visibility in bright light.
Robust I/O Interfaces:
6 x USB 2.0 ports
4 x RS-232 (Isolated) and 4 x RS-422/485 serial ports
4 x Gigabit Ethernet ports
1 x VGA and 1 x DVI-D video outputs
Audio: Line-in, Line-out, Mic-in
2 x CAN bus V2.0b
8 x GPIO
Expansion Capabilities: MXM 3.0 Type A and 2 x Mini PCIe slots for enhanced graphics and additional functionalities.
Rugged Design:
Compliant with MIL-STD-810G for vibration, shock, and salt fog resistance.
EMC compliant with MIL-STD-461F.
Ingress Protection: IP67 rated for dust and water resistance.
Operating Temperature: -40°C to +71°C.
Power Supply: 28 VDC nominal input with ignition sense and time delay setting, compliant with MIL-STD-1275E.
📌 Applications
The XR10 Military Panel PC is ideal for:
Military land, air, and sea platforms.
UAV ground control stations.
Airborne signals intelligence and image processing systems.
Data control and acquisition for airborne applications.
Communications and signals intelligence computers for rugged ground mobile applications.
Why Choose Metromatics?
As an authorised distributor of RuggON products in Australia, Metromatics provides:
Local Expertise: Dedicated sales, service, and support teams across Australia. With offices located in Brisbane, Sydney, and Melbourne.
Custom Solutions: Tailored configurations to meet specific project requirements.
Reliable Support: Comprehensive after-sales service to ensure optimal performance.
📞 Contact Us Today
Discover how the XR10 Military Panel PC can enhance your operations. Reach out to our team for more information, a personalised quote, or to request a datasheet.
Enhance your mission-critical operations with the XR10 Military Panel PC—engineered for performance, built for resilience.
Back of Unit
Specifications
| System | Intel Core i7 - 6822EQ Quad Core Processor 2.0GHz (Turbo Boost up to 2.8 GHz) 8GB DDR4 XRDIMM, up to 16GB M.2 2242 SATA MLC SSD x 2 |
|---|---|
| Display | 10.4" TFT LCD XGA (1024 x 768) 1300 nits (typical) Multi Point Resistive Touch |
| Expansion | MXM 3.0 Type A Mini PCIe slot x 2 |
| I/O Interface | USB 2.0 x 6 RS-232 x 4, Isolation RS-422/485 x 4 Gigabit Ethernet x 4 GPIO x 8 VGA x 1; DVI-D x 1 Audio line in x 1, Line Out x 1, Mic-in x 1 CAN bus V2.0b x 2 Optional Video in via mini PCIe slot; CVBS Video In; HD-SDI Video In Optional MXM Graphics Input |
| Power | 28 VDC Nominal input Ignition sense with time delay setting Compliance with MIL-STD-1275E |
| Environmental | IEC 60529 IP67 MIL-STD-810G Vibration, Shock, Salt Fog Operating Temp -40°C to +71°C |
| EMC | MIL-STD-461F |
About Ruggon
RuggON, is based in Taiwan. They make and deliver high-quality vehicle mount computers. They also produce rugged tablets, rugged monitors, and military panel PCs. Additionally, they offer software and accessories. Secondly, their products are used in a range of applications. From across all Defence Platforms, Firefighting Services, Traffic Enforcement, Utility Asset Management, Fleet Management and Industrial Manufacturing Factories world wide.
The RuggON products are thoroughly tested internally and sent out to third parties for certification. They take pride in the Research and Development done by their engineering team. They are also open to customising products to meet specific project needs.
In conclusion, Metromatics provides local sales, service and customer support for this product range in Australia. To learn more, contact us.
