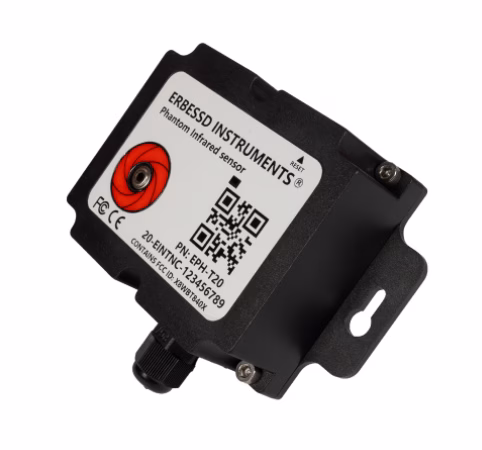

Phantom Series – Wireless Infrared Temperature Sensor EPH-T20

Measure surface temperatures safely and efficiently with the EPH-T20 Wireless Infrared Temperature Sensor from Erbessd Instruments.

This compact, non-contact sensor uses infrared technology to detect heat variations on machinery and equipment without physical connection.

Designed for reliability and easy integration, it provides accurate temperature data directly to your Phantom wireless condition monitoring system for smarter, predictive maintenance.

Monitor surface temperatures safely and accurately with the EPH-T20 Wireless Infrared Temperature Sensor from Erbessd’s Phantom Series.

Designed for non-contact temperature measurement.  Firstly, this compact industrial sensor uses infrared technology to detect heat variations on equipment surfaces without physical contact. Ideal for areas where thermocouples or contact probes cannot be installed.  Te EPH-T20 delivers precise, real-time readings directly to your Phantom wireless monitoring system.

With a measuring range of –70 °C to +380 °C. This strong sensor has an IP67-rated housing and uses encrypted wireless transmission. It offers a simple and reliable way to track thermal performance in motors, bearings, gearboxes, and electrical assets. It requires no maintenance.


Key Features & Benefits

  • Wireless infrared temperature monitoring – non-contact measurement ideal for rotating or inaccessible components.

  • Wide temperature range – measures from –70 °C up to +380 °C.

  • High accuracy and stability – dependable results in harsh industrial environments.

  • Rugged IP67 design – fully protected against dust and moisture.

  • Industrial connectivity – supports Modbus, OPC UA, and MQTT for easy integration with SCADA, PLC, or IoT platforms.

  • Bluetooth BLE 5.0 communication – secure, low-power wireless link to the Phantom Gateway.

  • Battery powered – long-life replaceable battery allows 12,000+ measurements under standard operation.

  • Simple configuration – quick setup via Phantom Manager mobile app.

  • Part of the Phantom ecosystem – easily combine with vibration, current, or thermal sensors for multi-parameter condition monitoring.


Applications

The EPH-T20 Wireless Infrared Temperature Sensor is ideal for:

  • Rotating equipment – bearings, couplings, and drive shafts where contact sensors can’t be fitted.

  • Electrical systems – monitoring panel temperatures, breaker contacts, or busbars.

  • Motors, pumps, and compressors – tracking surface heat trends for predictive maintenance.

  • Production lines and conveyors – monitoring rollers, heaters, or friction surfaces.

  • Process plants – non-intrusive temperature readings for pipelines and heat exchangers.


Technical Information

ParameterSpecification
ModelEPH-T20
Measurement Range–70 °C to +380 °C
Accuracy±1 °C
ConnectivityBluetooth BLE 5.0 (2.4 GHz)
ProtocolsModbus, OPC UA, MQTT
Power SupplyReplaceable batteries (up to 12,000 measurements)
Enclosure RatingIP67
Housing MaterialNylamid / Aluminium
Operating Temperature (device)   –40 °C to +80 °C
IntegrationPhantom Gateway, EI-Analytic, DigivibeMX, Phantom Manager

Integration & Software

The EPH-T20 integrates seamlessly with the Phantom Wireless Condition Monitoring Ecosystem.  Therefore, allowing you to combine non-contact temperature data with vibration, current, or environmental measurements.  Providing a complete view of equipment health:

  • Phantom Gateway 2.0 / USB Gateway – transfers data to cloud or SCADA systems securely.

  • EI-Analytic – visualise temperature trends, set alarms, and analyse performance over time.

  • DigivibeMX – combine temperature and vibration analysis for in-depth diagnostics.

  • Phantom Manager – configure sensors, calibrate, and pair devices using Bluetooth.


Why Choose the EPH-T20 Wireless Infrared Temperature Sensor

  • Non-contact and maintenance-free – reliable readings without mechanical wear or physical connection.

  • Safe and versatile – ideal for high-voltage or moving equipment.

  • Industrial-grade performance – designed for demanding environments.

  • Flexible integration – compatible with a wide range of industrial protocols.

  • Local Australian support – Metromatics provides local sales, setup, and technical assistance.


Simplify temperature monitoring with the EPH-T20 Wireless Infrared Temperature Sensor.  The smart, safe way to measure surface heat and detect problems before they become failures.

Contact Metromatics today to discuss integration options or request a demonstration.
