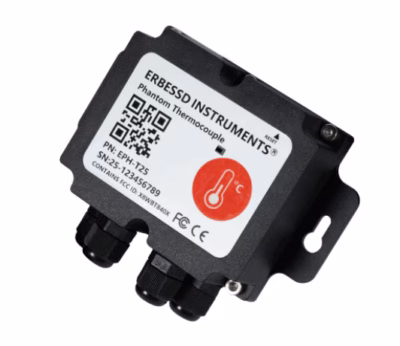

Monitor high-temperature processes safely and efficiently with the EPH-T25 Wireless Thermocouple Sensor from Erbessd’s Phantom Series.
This industrial-grade sensor connects directly to Type-K thermocouples. Therefore, providing accurate, real-time temperature readings without the need for complex wiring. Designed for use in harsh and remote environments. The EPH-T25 transmits temperature data wirelessly to your Phantom Gateway or cloud system for continuous monitoring and analysis.
With a temperature range from –210 °C to +1,800 °C. Making the EPH-T25 is ideal for furnaces, engines, bearings, boilers. As well as, and other demanding applications where traditional cabling is impractical.
Key Features & Benefits
Wireless temperature monitoring – eliminates the need for long thermocouple wiring runs.
Wide temperature range – measures from –210 °C up to +1,800 °C (depending on thermocouple type).
Multi-channel input – supports multiple thermocouple connections for comprehensive thermal data collection.
Industrial communication protocols – compatible with Modbus, OPC UA, and MQTT for seamless integration with SCADA, PLC, or IoT systems.
Battery powered – long-life internal battery for remote or hard-to-access installations.
Bluetooth configuration – easily set up and calibrate using the Phantom Manager mobile app.
Compact & rugged design – engineered for reliability in high-temperature, dusty, or vibrating environments.
Integrates with vibration and temperature monitoring – pair with Phantom vibration sensors for full asset health analysis.
Applications
The EPH-T25 Wireless Thermocouple Sensor is designed for demanding industrial and research environments that require accurate temperature data without wiring complexity:
Industrial furnaces, kilns, and boilers
Engines, turbines, and exhaust systems
Bearings, motors, and gearboxes (temperature trending)
Manufacturing and process control lines
Oil, gas, and mining operations
Food and pharmaceutical production requiring precise temperature logging
Technical Information
Parameter | Specification |
---|---|
Model | EPH-T25 |
Input Type | Type-K Thermocouple |
Measurement Range | –210 °C to +1,800 °C (thermocouple dependent) |
Channels | Up to 3 inputs |
Communication | Zigbee (sensor to gateway), Bluetooth (configuration) |
Protocols | Modbus, OPC UA, MQTT |
Power Supply | Battery operated |
Enclosure Rating | IP65 (typical) |
Operating Temperature | –40 °C to +80 °C (module only) |
Integration & Software
The EPH-T25 integrates seamlessly with the Phantom Wireless Condition Monitoring Ecosystem, allowing temperature data to be visualised alongside vibration and other measurements:
Phantom Gateway 2.0 / USB Gateway – transmits temperature data to control systems or cloud platforms.
EI-Analytic – monitor, trend, and analyse temperature behaviour for predictive maintenance.
DigivibeMX – combine temperature and vibration analysis for deeper insight into machine condition.
Phantom Manager – configure and calibrate thermocouple inputs quickly using Bluetooth.
Why Choose the EPH-T25 Wireless Thermocouple Sensor
Unmatched versatility – supports ultra-wide temperature ranges and industrial integration standards.
True wireless freedom – simplifies installation and eliminates costly cable runs.
Part of a complete ecosystem – works with Phantom vibration, current, and environmental sensors.
Reliable performance – rugged, long-life design suited for industrial conditions.
Local expertise – backed by Metromatics with Australian-based sales, service, and support.
Upgrade your temperature monitoring with the EPH-T25 Wireless Thermocouple Sensor. The smarter, safer, and more connected way to measure extreme heat.
Contact Metromatics today. For local support, integration advice, or a demonstration of how this solution fits into your condition monitoring system.
