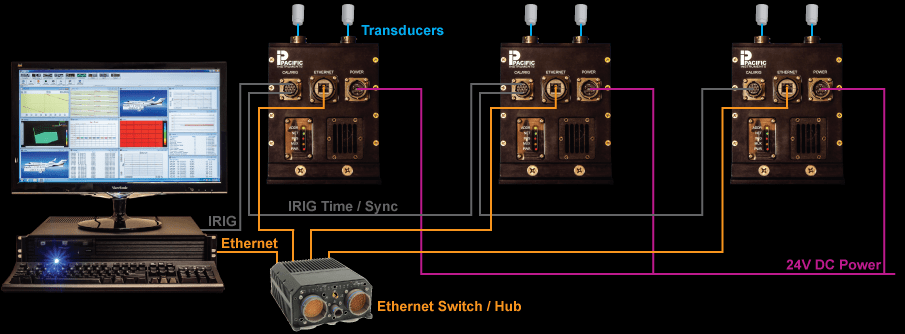

Each 7000 Series Ruggedised Ethernet Data Acquisition System has an Ethernet Interface for control and Data Output. This simplifies system wiring and provides remote and distributed operation. IRIG Time may be used to synchronise sampling on multiple units within 10 microseconds. Or a timing pulse can be used to achieve better than 1 microsecond time alignment. Multiple Units (up to 4,096 channels) may be connected on a single Ethernet LAN with 24-Bit A/D per channel. This will provide a high accuracy and resolution so this Rugged Ethernet Data Acquisition System will perform across a wide operating range.
Features of the Ruggedised Ethernet Data Acquisition Systems include
- 16 Channels Strain gage, bridge, IEPE or voltage transducers
- Real time temperature correction of Gain, Zero & Excitation from -20⁰C to + 50⁰C
- 0.05% or better accuracy over full gain and temperature range
- 10 kHz, 50 kHz or 100 kHz analogue bandwidths with gain 1 to 1,000
- 24-Bit A/D per channel up to 24kS/s, 102.4kS/s or 204.8kS/s
- Wide range programmable filter, 80 dB/octave
- Ethernet control and data interface
- IRIG A, B & G Time Decoding and Recording
- 1 uS Synchronised sampling of multiple enclosures
- Ruggedised for tough environments
- 20 to 30 Volt DC Power
Our portfolio of our Ruggedised Ethernet Data Acquisition Systems consists of:
There are 3 different configurations. If you want more information, contact us.
| Model 7200
|
Model 7300
|
Model 7400
Coming Soon
|
| 7200A_Ruggedized 16-Ch Strain-Bridge-Voltage Ethernet DAS | 7300_High Speed Ruggedized 16-Ch Strain-Bridge-Voltage Ethernet DAS | 7400_High Speed Ruggedized 16-Ch Strain-Bridge-Voltage Ethernet DAS |
