WiSER 3X – Triaxial Wireless Accelerometer

Experience fast, portable vibration analysis with the WiSER 3X Wireless Accelerometer from Erbessd Instruments.

This small Wi-Fi triaxial sensor sends real-time vibration and balancing data to your smartphone, tablet, or PC. No gateway is needed.

The WiSER 3X is made for maintenance teams and reliability engineers. It offers high-quality performance for route-based monitoring and on-site diagnostics.

Perform professional vibration analysis and dynamic balancing with the WiSER 3X Wireless Accelerometer from Erbessd Instruments.

This strong Wi-Fi triaxial vibration sensor sends real-time, high-quality data straight to your smartphone, tablet, or laptop. No gateway is needed.

Firstly, the  WiSER 3X is made for portability, accuracy, and speed. It is perfect for route-based monitoring, field diagnostics, and maintenance teams. These teams need quick insights into machine health. This software works with WiSER Vibe, WiSER Balance, and DigivibeMX. In addition, it gives you the power of professional vibration analysis right at your fingertips.

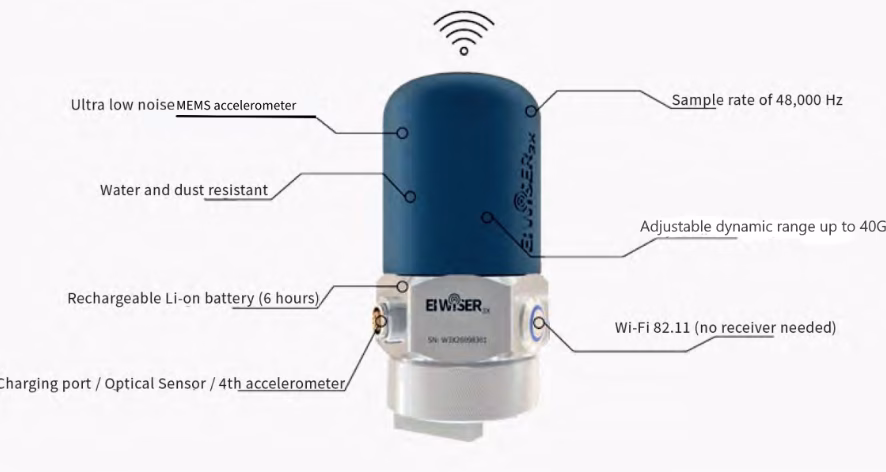

Key Features & Benefits

Key Features of product

  • Triaxial measurement – simultaneous X, Y, and Z axis readings for complete vibration profiles.

  • Direct Wi-Fi connection – transmits vibration data to your device without any gateway.

  • High-frequency response – 0.5 Hz to 10 kHz range ideal for rotating machinery and bearing analysis.

  • Dynamic balancing – supports two-plane balancing directly from your mobile device or PC.

  • High-resolution data – 24-bit ADC with 48 kHz sample rate ensures precise vibration capture.

  • Rugged design – IP67-rated housing withstands dust, moisture, and industrial environments.

  • Portable power – dual rechargeable CR123 batteries provide up to 6 hours of continuous use.

  • Flexible mounting – magnetic or ¼-28 UNF threaded base for easy setup on any machine.

  • Compact & wireless – lightweight design makes it ideal for quick inspections and fieldwork.

  • Compatible with multiple platforms – use with DigivibeMX, WiSER Vibe, and WiSER Balance apps.


Applications

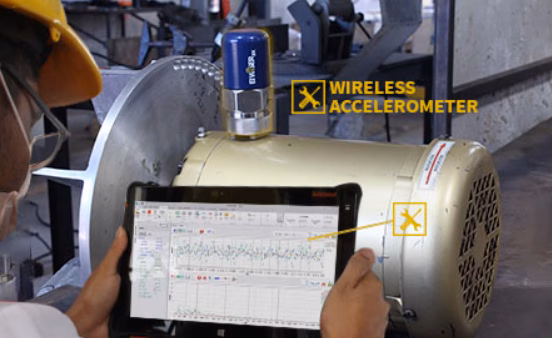

Application Image of WiSeR 3 being used

The WiSER 3X Wireless Accelerometer is ideal for:

  • Route-based condition monitoring – collect vibration data from multiple machines quickly and efficiently.

  • Dynamic balancing – perform single- or dual-plane balancing on-site using WiSER Balance or DigivibeMX.

  • Field maintenance and diagnostics – troubleshoot vibration problems instantly via smartphone or tablet.

  • Industrial inspections – assess machine performance without the need for wired equipment.

  • Portable data collection – ideal for maintenance contractors, reliability engineers, and field technicians.


Technical Information

Universal Receiver

ParameterSpecification
ModelWiSER 3X (Standard or High Sensitivity)
AxesTriaxial (X, Y, Z)
Frequency Range0.5 Hz – 10 kHz (±3 dB)
Sensitivity100 mV/g
Dynamic Range±20 G
Sample Rate48 kHz (24-bit ADC)
Wireless ProtocolWi-Fi 802.11 (Direct Connection)
Communication RangeUp to 15 m (line-of-sight)
Battery Type2 × CR123 Li-ion 3.7 V (Rechargeable)
Battery Life~6 hours continuous
Protection RatingIP67
Weight425 g with magnet / 250 g without
MountingMagnetic Base / ¼-28 UNF Thread
IntegrationWiSER Vibe App, WiSER Balance App, DigivibeMX Software

Integration & Software

The WiSER 3X integrates effortlessly with Erbessd’s full suite of vibration analysis tools:

For integration with external analyzers, the WiSER Universal Receiver (WUR 3X) provides 4-channel analog BNC outputs for traditional vibration analysis systems.


Why Choose the WiSER 3X Wireless Accelerometer

  • No gateway required – direct Wi-Fi connection for instant measurements.

  • Portable and powerful – ideal for fieldwork, route monitoring, and balancing.

  • High-resolution triaxial data – capture vibration with laboratory-grade precision.

  • Fully compatible – works across mobile, tablet, and desktop platforms.

  • Local support – Metromatics provides Australian sales, setup, and technical assistance.


Two Models

The WiSER 3X is available in two versions – Standard and High-Sensitivity.
Both models deliver precise triaxial vibration measurement.  Whilst the High-Sensitivity version offers enhanced resolution for low-speed or delicate machinery. Such as cooling fans, turbines, or precision spindles.


🔹Comparison Table

ModelFrequency Range (±3 dB)Dynamic RangeBest For
WiSER 3X Standard0.5 Hz – 10 kHz±20 GGeneral-purpose and high-speed rotating equipment
WiSER 3X High Sensitivity0.5 Hz – 4 kHz±8 GLow-speed machinery and precision applications

Simplify vibration analysis and balancing with the WiSER 3X Wireless Accelerometer.  The smart, portable solution for industrial maintenance and diagnostics.

Contact Metromatics today to learn how WiSER can transform your vibration monitoring process.
